Grizzly 600 M-T swinging circular saw

Tipologia

Alimentazione

Lama circolare

SEGA CIRCOLARE CON MOTORE ELETTRICOCON TAVOLO BASCULANTE

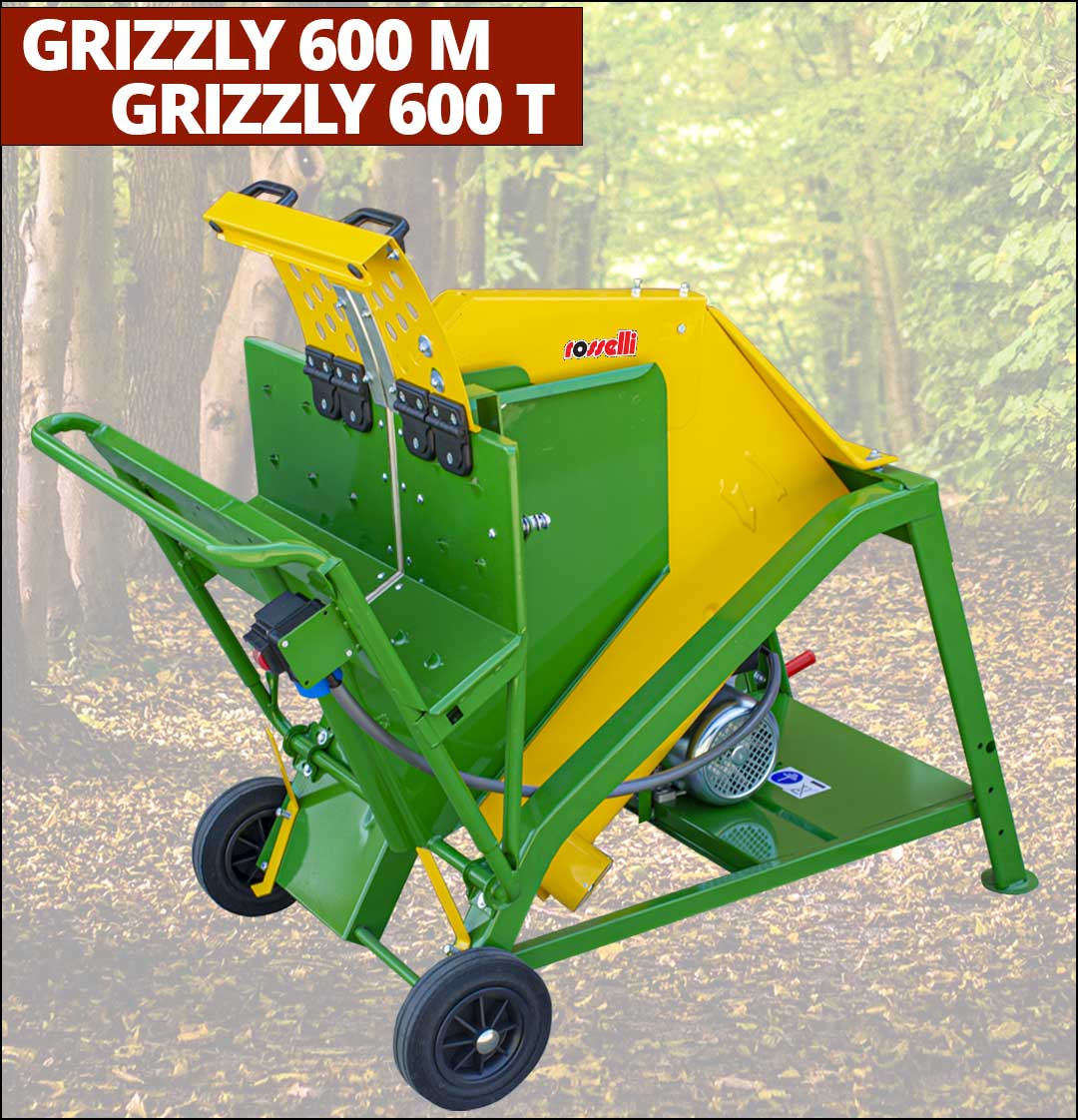

Grizzly 600 M / Grizzly 600 T è un banco sega basculante a motore elettrico. Rispetto al modello Yoghi, questa segatrice è più resistente e quindi consigliata a coloro che hanno l’esigenza di tagliare grandi quantità di legna o a coloro che incentrano su questa attività la loro professione. Dotata di lama Ø 600, Grizzly 600 M ha un motore monofase a 3 HP, mentre Grizzly 600 T è caratterizzato da un motore trifase a 3 HP.
Robusta e affidabile, questa macchina è costruita seguendo le normative sulla sicurezza attualmente in vigore, senza mai mettere in secondo piano la praticità, la semplicità d’uso e la resistenza dei materiali. Grazie al suo potente motore, la sega circolare è in grado di tagliare tronchi spessi fino a 22 cm; basteranno cosi pochi e semplici movimenti e un piccolo sforzo dell’operatore per ottenere il risultato finale.

Questa sega a cavalletto è perfetta per chi desidera segare il legno in modo sicuro e protetto, con una capacità di taglio di 22 cm di profondità. Perfetta per il taglio del legno da ardere e garantisce anche la massima sicurezza durante il processo di segatura della legna.

CARATTERISTICHE

IMMAGINI

VIDEO

OPTIONAL

PDF

Tabella tecnica

Modello	Diametro lama	Profondità di taglio	Tavolo lavoro	Alimentazione	Massima dimensione	Peso

Grizzly 600 M	Ø 600 mm	220 mm	850×265 mm	Motore elettrico – Monofase 2.2 Kw (3HP) 220V	1450x850x1110 mm	134 Kg
Grizzly 600 T	Ø 600 mm	220 mm	850×265 mm	Motore elettrico – Trifase 3 Kw (4HP) 380V	1450x850x1110 mm	136 Kg

FEATURES

grizzly 600 single-phase electric circular saw with blade

MACHINERY DIRECTIVE 2006/42/EC
The Rosselli company has always paid great attention to security issues, all our machines fully respect the directives imposed by the European Community. For this reason every circular saw follows the Machinery Directive 2006/42/EC: Rosselli machines are equipped with all devices that allow the operator to work in a condition of complete security.

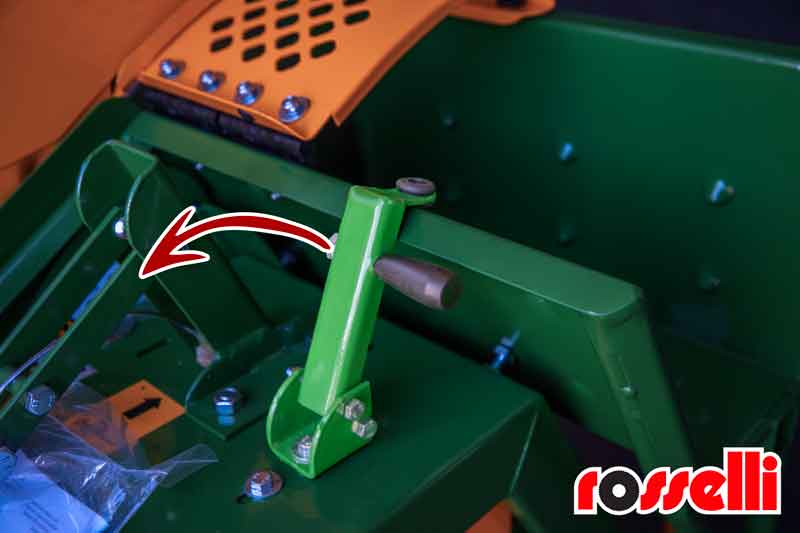

LOCK DEVICE
This device stops the log and guarantees a sharp and defined cut; both hands are needed to operate the machine in order to avoid any contact with the blade.

EMERGENCY BRAKE
the machine is equipped with a life saving device. As required by European rules, by pressing the emergency button, the blade stops within ten seconds.
THERMAL
in case of engine overheating (due to an inadequate current or to excessive workload) it stops the machine working, avoiding damage to the engine.
MINIMUM-TENSION REEL
in case of black out, it prevents the automatic restart of the machine; it must be activated using the special switch.

VIEW PDF IN YOUR MONITOR

CLICK HERE TO VIEW THE FLYER

CLICK HERE

PRINT THE FLYER

CLICK HERE IF YOU WANT TO PRINT THE FLYER

PRINT PDF

WHY TO BUY A ROSSELLI’S CIRCULAR SAW MODEL GRIZZLY 600 M / T ?

SAFETY

The Grizzly M / Grizzly T circular saw is built according to the rules established by the machinery directive EC/662 and this allows the user to perform cutting operations without incurring any danger. The Rosselli company, for several years now, is committed to providing its customers with machines that, in spite of their low cost, ensuring the highest levels of security.

RELIABILITY

Thanks to the frame welded by a robot, the Grizzly 600 M / Grizzly 600 T circular saw provides a high level of robustness and high performance even after several years of use. Thanks to the special coating process adopted by Rosselli, the metal parts of the machine are protected against corrosion and aggressive agents.

USE

The Grizzly 600 M / Grizzly 600 T swinging circular saw is particularly appreciated by the customers of the company for its extreme operational simplicity. A few simple actions allow to make a clean and precise cut without excessive force. This allows also to women and the elderly to chop wood in complete autonomy.

ASSISTANCE

The Grizzly M / Grizzly T saw bench is guaranteed for two years. Even after a long time from the date of purchase it will be easy to purchase spare parts. The Rosselli company provides assistance to both dealers and individuals.
