YOGHI 600 M

circular saw

YOGHI 600 T

Ø 600

Immagini

Caratteristiche

Video

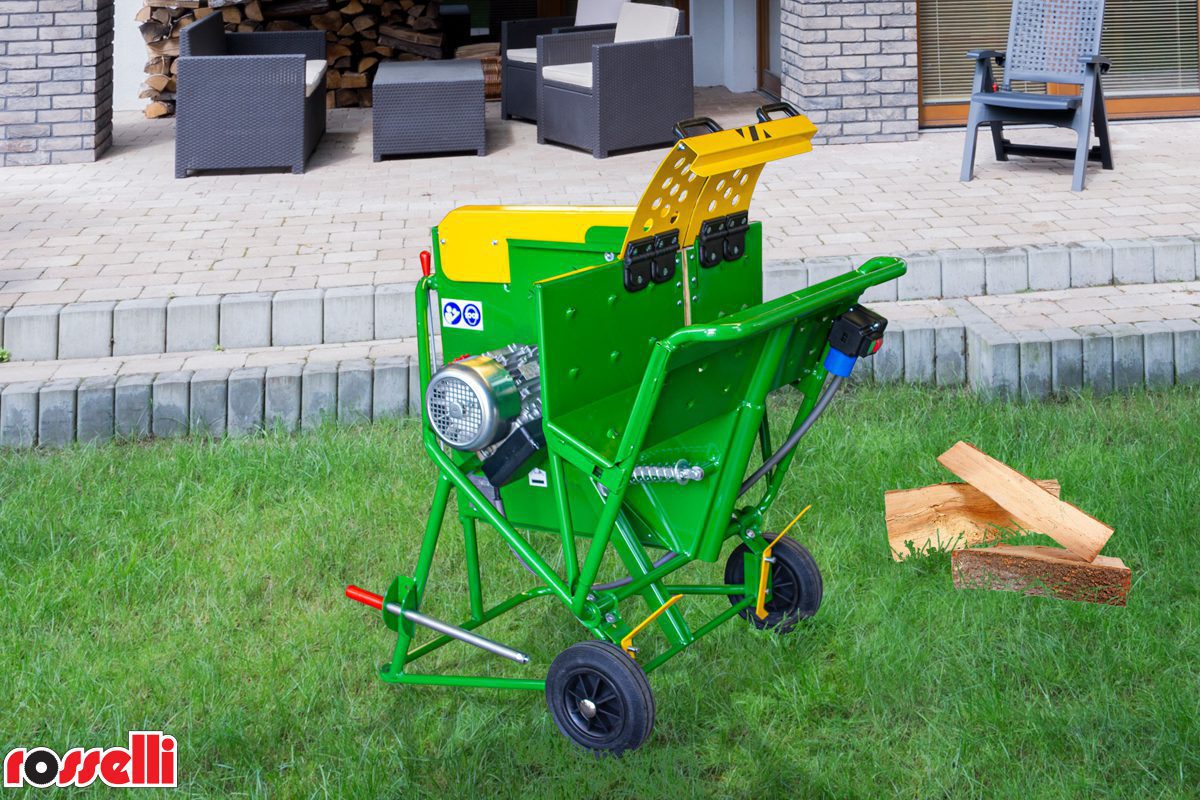

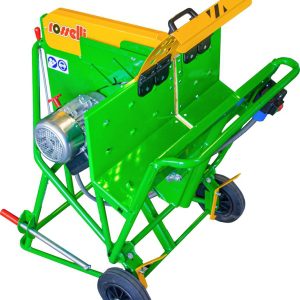

BANCO SEGA A MOTORE ELETTRICO

A TAVOLO BASCULANTE

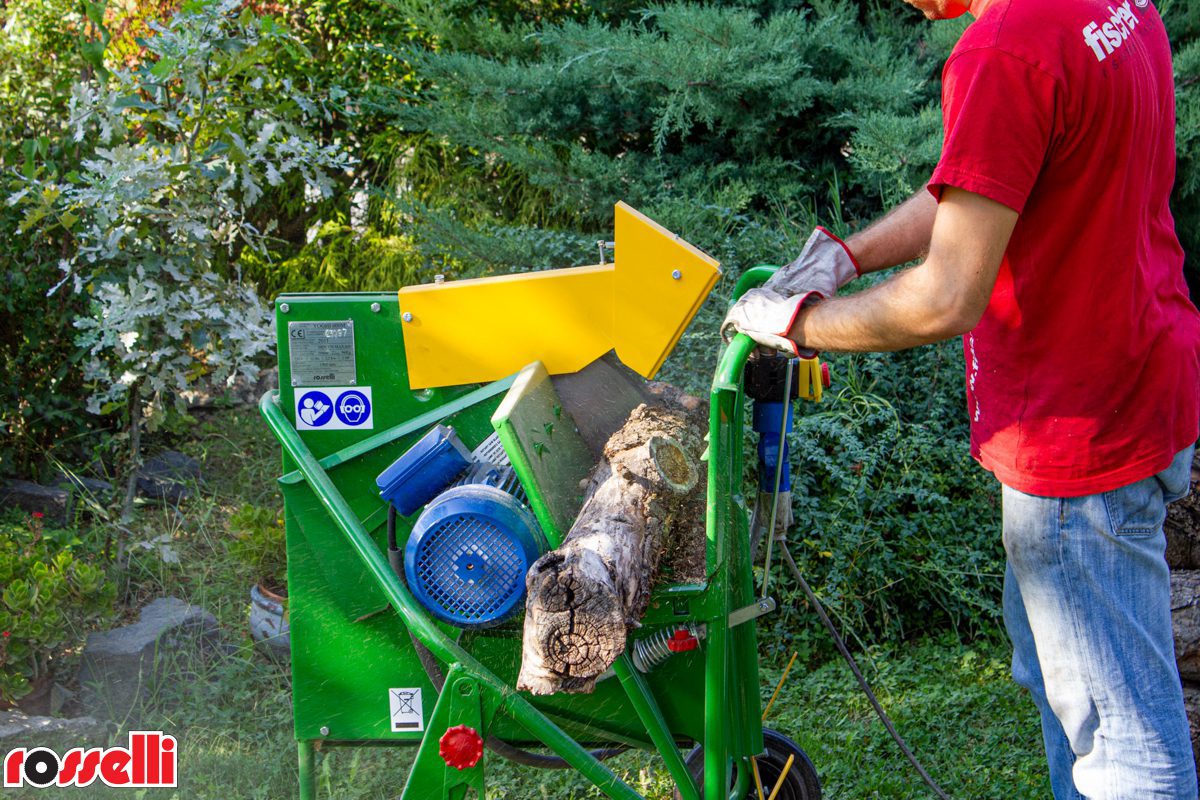

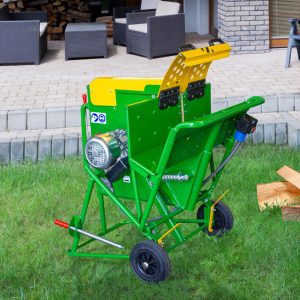

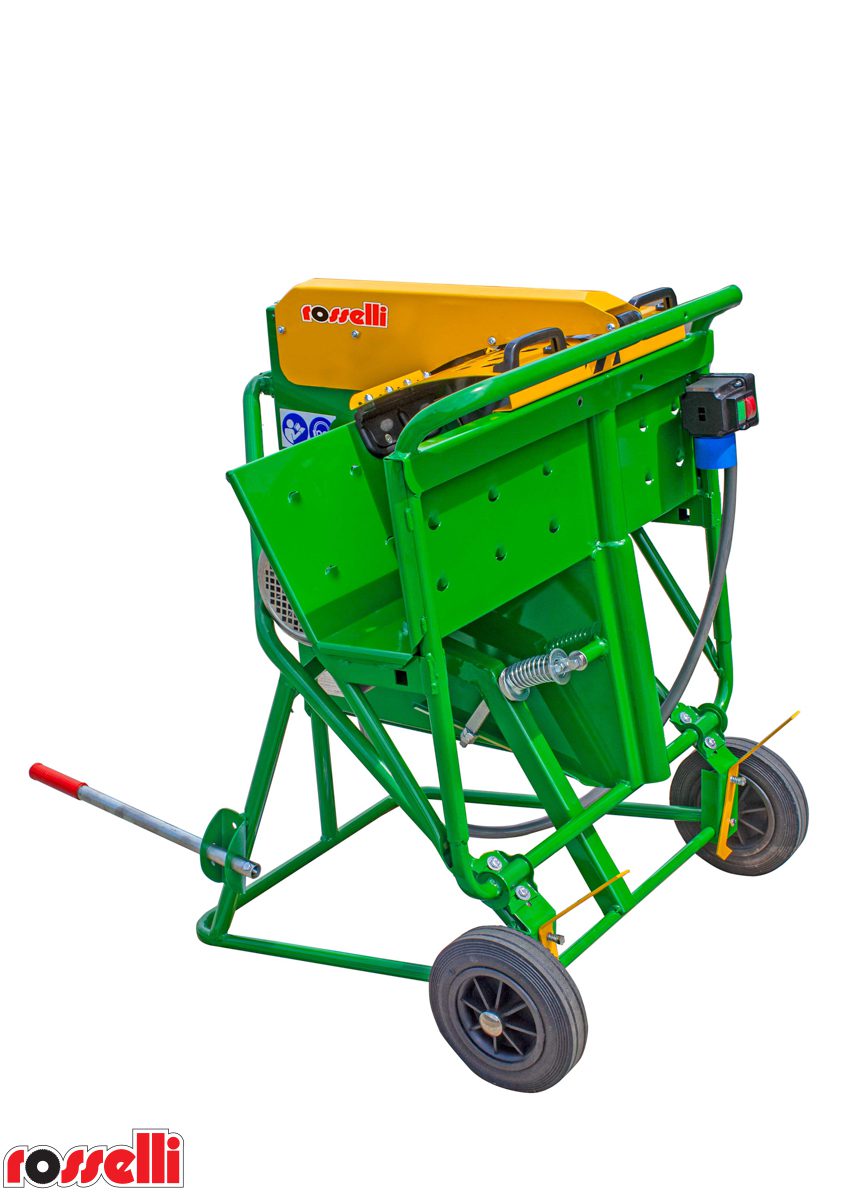

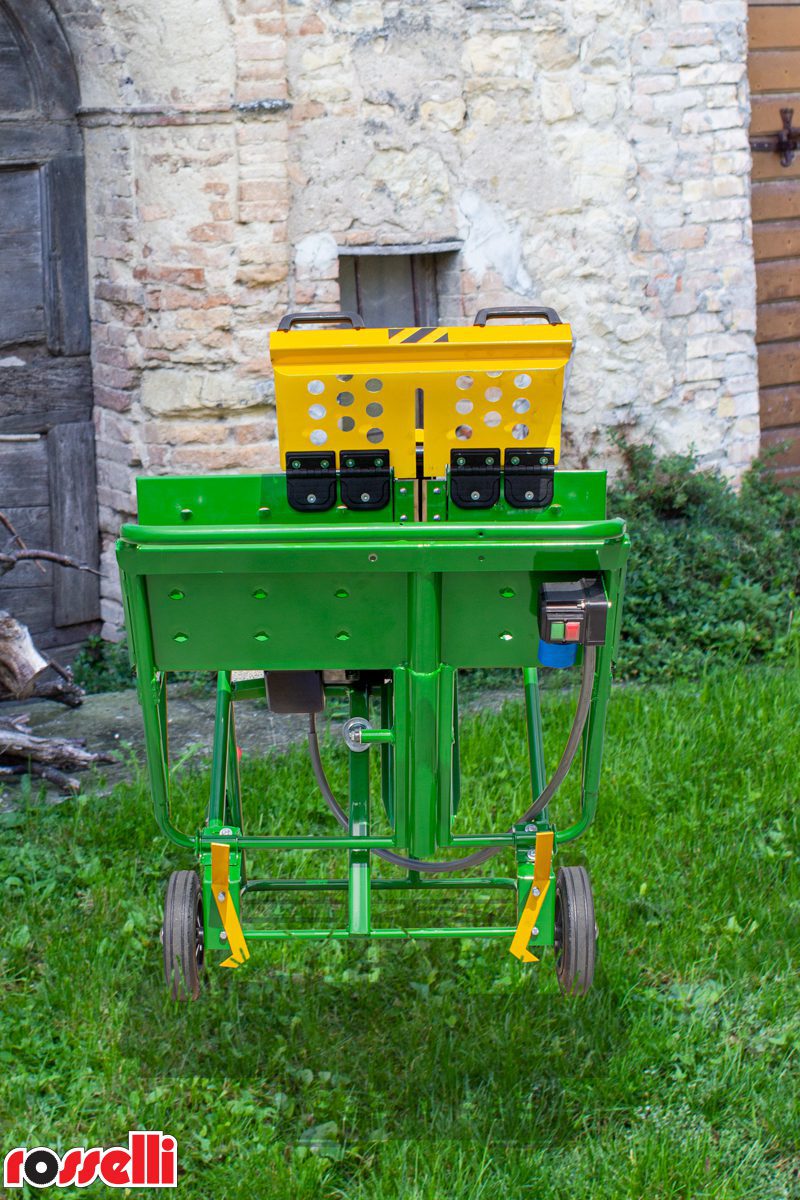

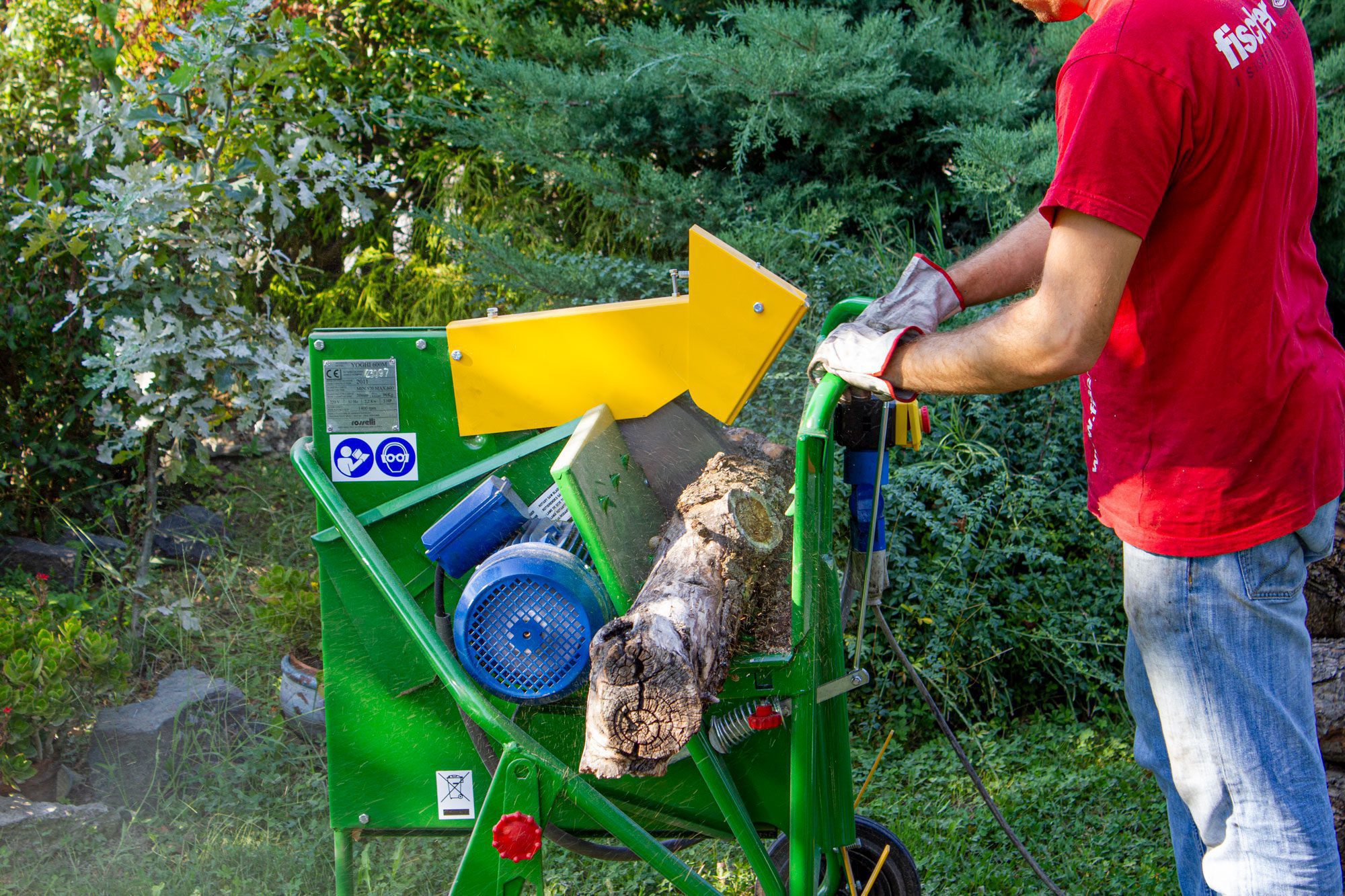

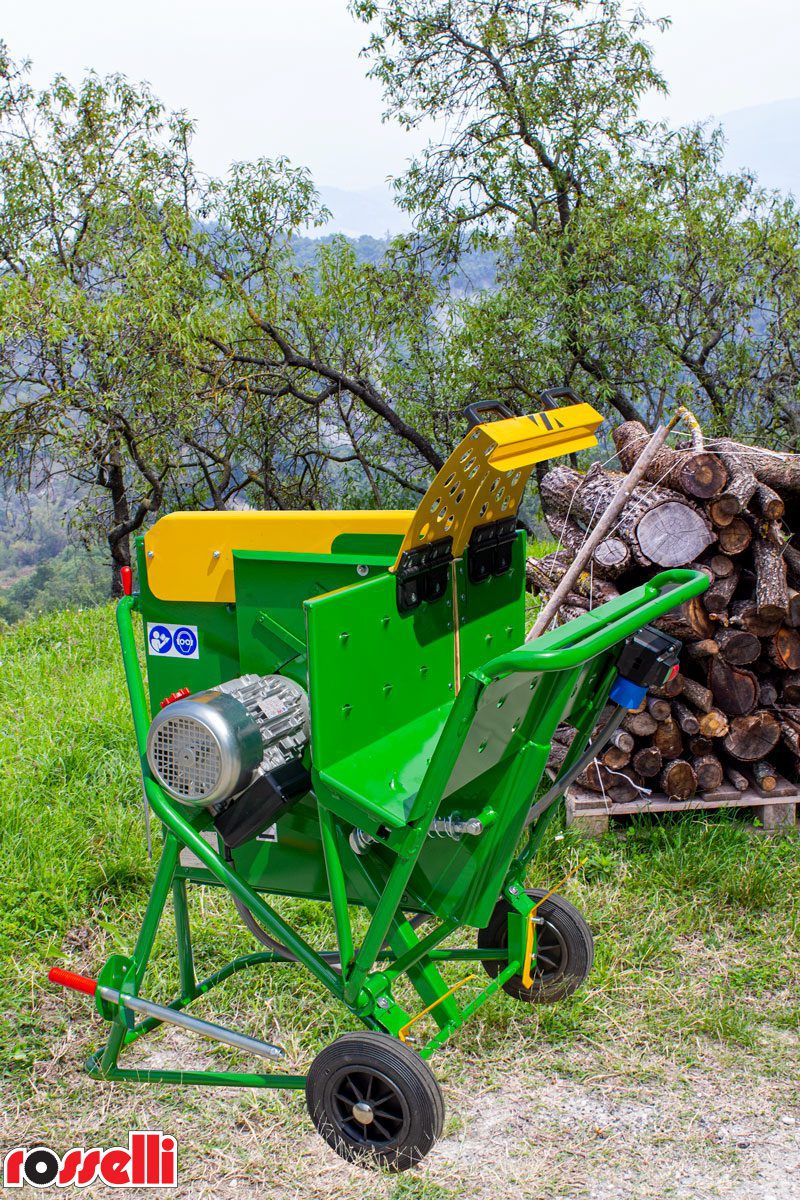

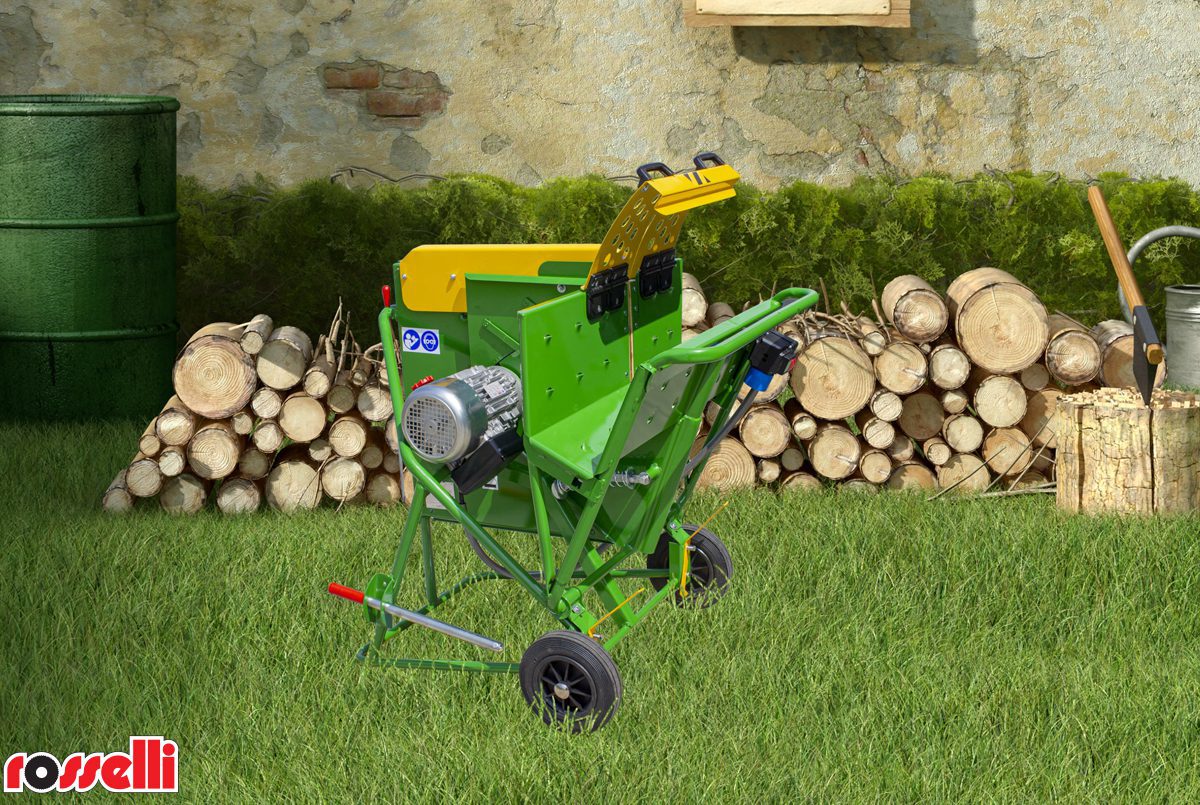

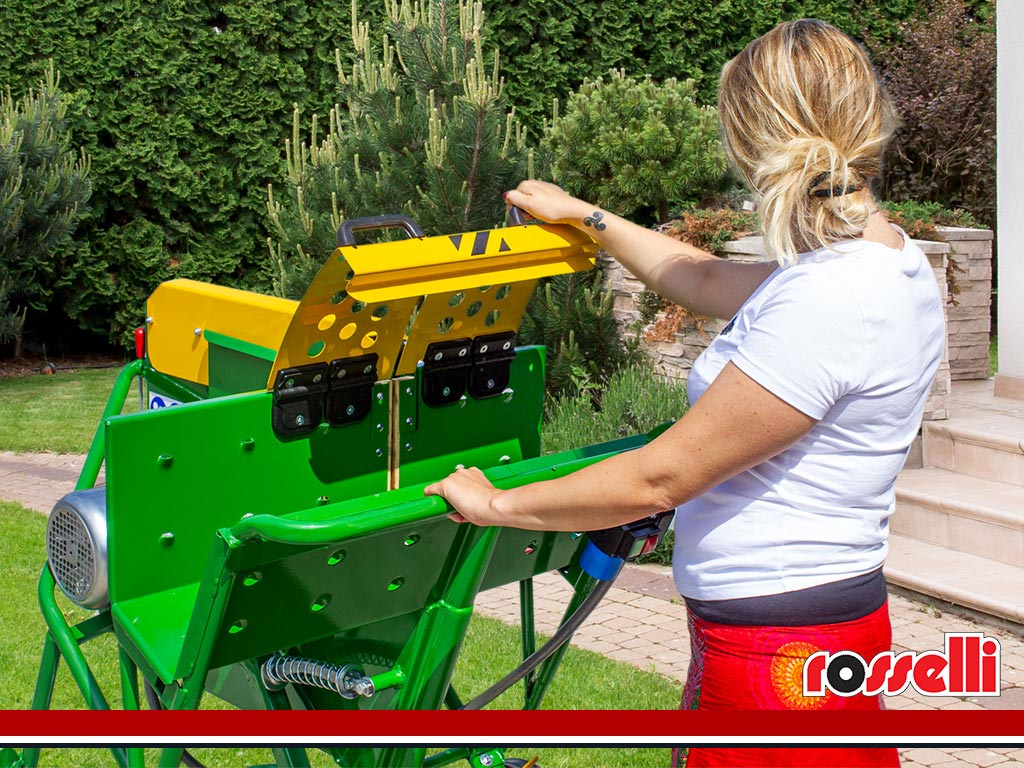

Quando si pensa ad una macchina robusta, sicura e costruita con materiali italiani, il cliente è portato a pensare subito ad un taglia tronchi costoso, pesante e ingombrante.

Noi della Rosselli, invece, coniughiamo la professionalità delle nostre macchine con il risparmio proponendo, a vecchi e nuovi clienti, il banco sega Yoghi: questa sega circolare a sistema basculante si pone come scopo quello di rendere il taglio della legna un momento piacevole grazie alla semplicità con cui uomini e donne possono lavorare.

Questa macchina viene costruita seguendo le normative europee con uno sguardo particolare alla praticità. A differenza di altri modelli, Yoghi è leggero e poco ingombrante grazie al suo disco che viene flangiato direttamente sull’albero del motore elettrico e, ultimo ma non meno importante, è il modello più economico all’interno della gamma di basculanti proposta dalla Rosselli.

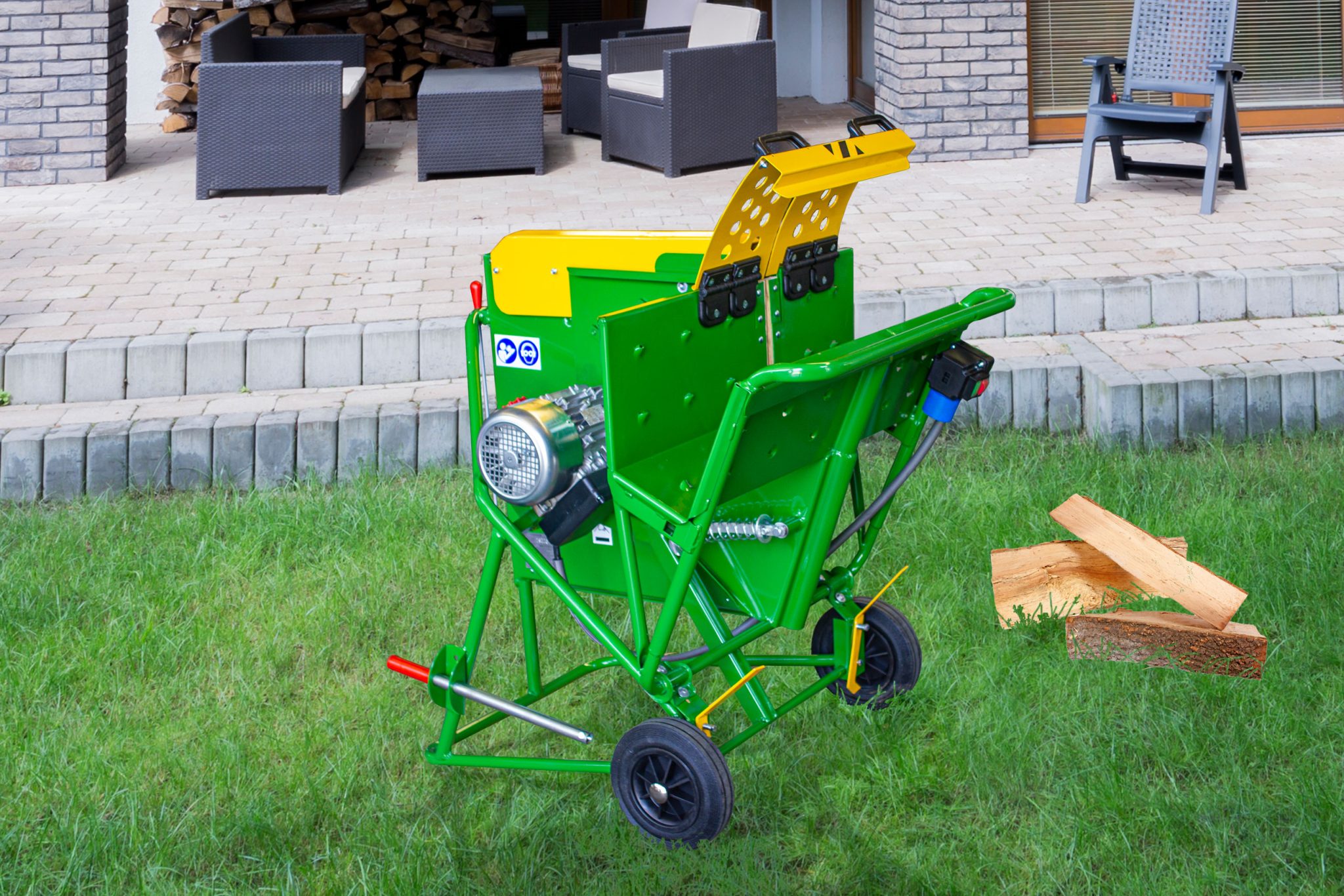

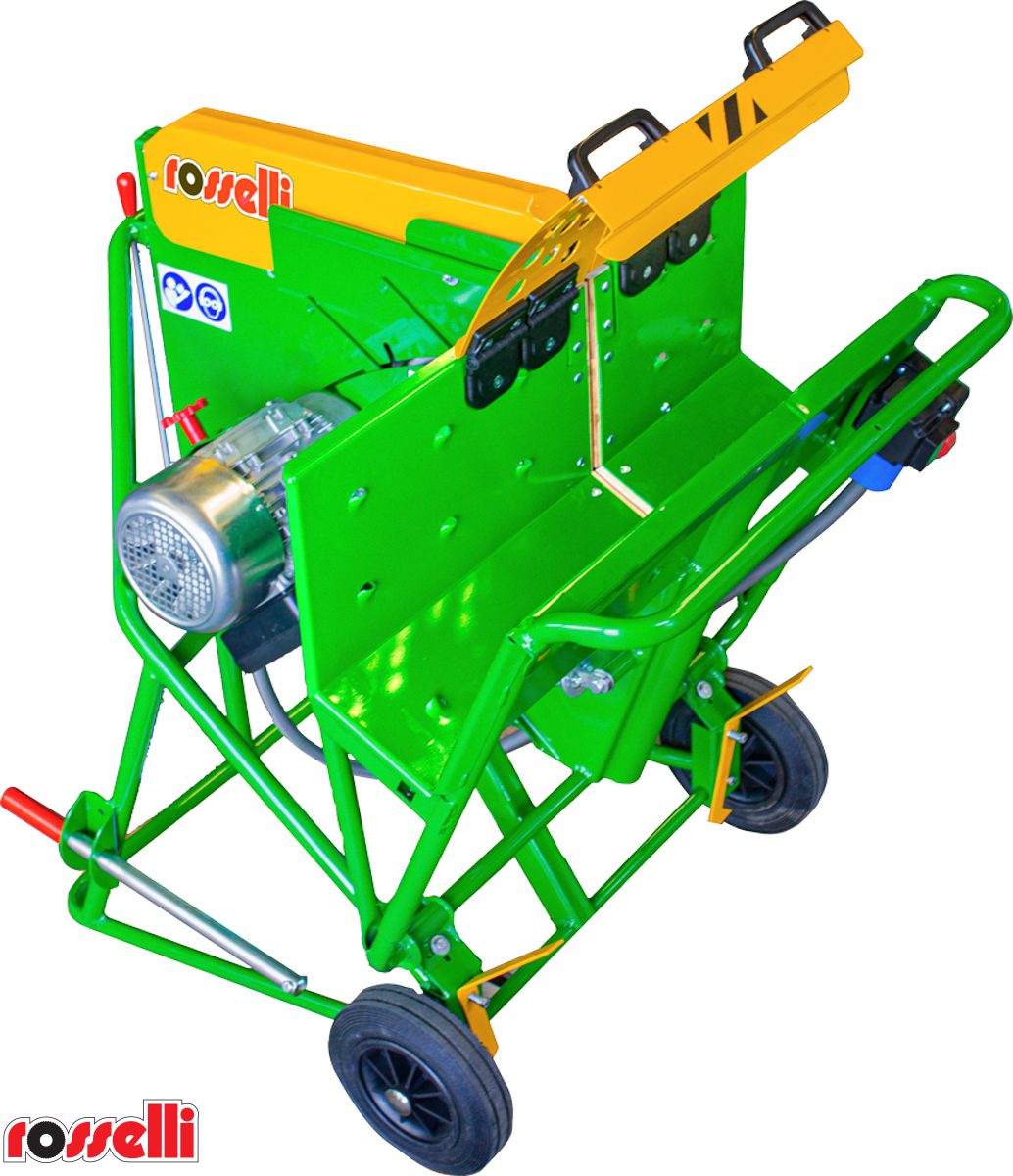

Dotato di: sistema di bloccaggio ruote per una migliore stabilità della macchina, leva per rendere più facili e veloci eventuali piccoli spostamenti e chiave per rimuovere la lama di taglio.

TIPO

Tavolo Basculante

ALIMENTAZIONE

Motore Elettrico

DISCHI

Disco

Ø 600

FEATURES

IMAGES

VIDEO

OPTIONAL

PDF

Technical table

Model	Cutting Disc Diameter	Cutting depth	Working Table	Supply	Max Dimensions	Weight

Yoghi 600 M	Ø 600 mm	185 mm	850×265 mm	Single-phase electric motor – 2,2 kW (3HP) 220V	1150x850x1070 mm	96 Kg
Yoghi 600 T	Ø 600 mm	190 mm	850×265 mm	Three-phase electric motor – 3 kW (4HP) 380V	1150x850x1070 mm	97 Kg

FEATURES

Are you looking for a circular saw for family use with excellent performance?

Click and view the features and characteristics

OPTIONAL

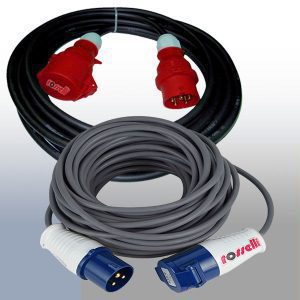

ELECTRIC EXTENSION CABLE

Special extension to avoid electric current dispersion for single-phase or three-phase circular saws.

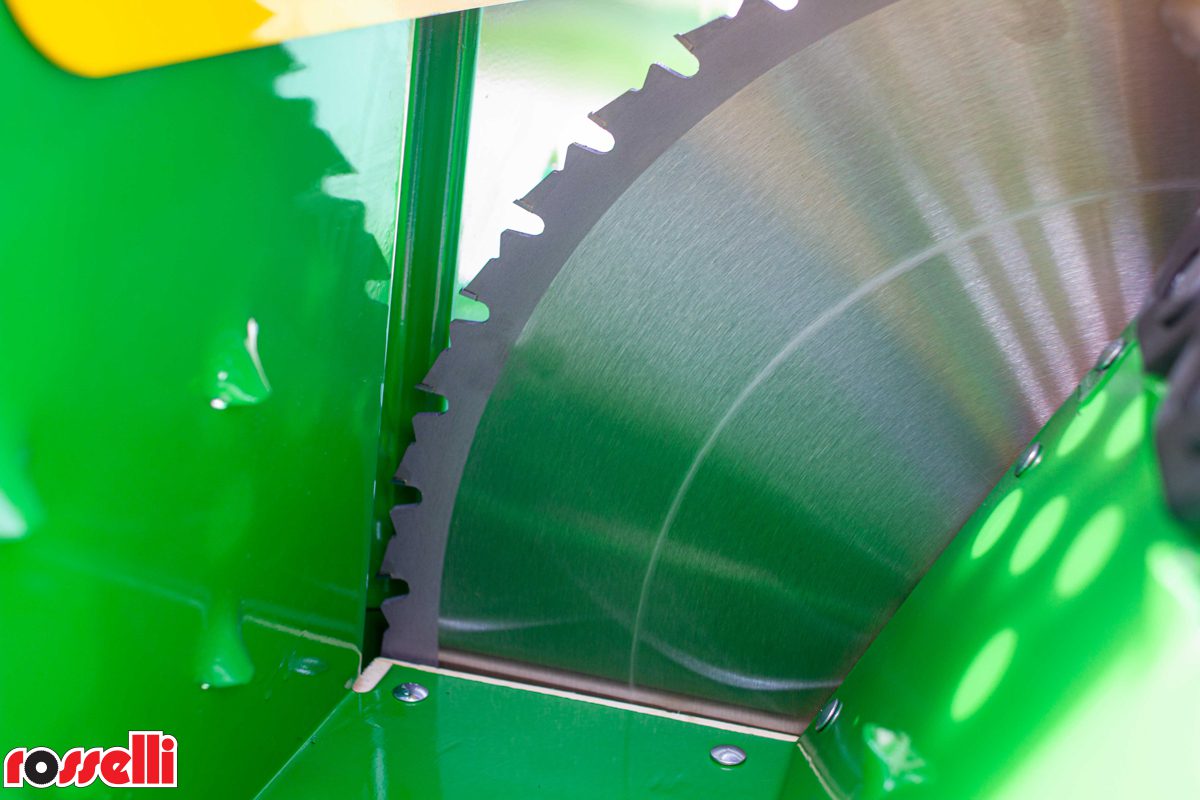

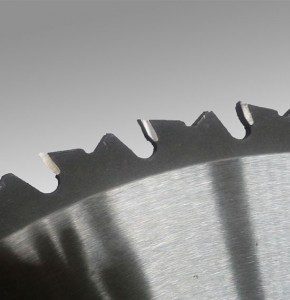

WIDIA BLADE

More performing and durable circular blade.

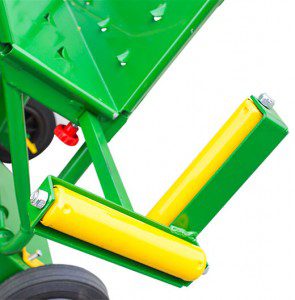

EXTENSION FOR LONG WOODS

This extension helps to support longer logs and to be able to slide them into the basket.

EMERGENCY BRAKE

the saw is equipped with a safety device. As required by European regulations, by pressing the emergency button the blade stops within ten seconds. For this reason every circular saw follows the Machinery Directive 2006/42/EC: Rosselli machines are equipped with all devices that allow the operator to work in a condition of complete security.

UNDERVOLTAGE COIL

in the event of a blackout, it prevents the automatic restart of the machine; it must be reactivated using the appropriate switch.

ELECTRIC THERMAL

in case of engine overheating (due to an inadequate current or to excessive workload) it stops the machine working, avoiding damage to the electric motor.

MACHINERY DIRECTIVE 2006/42/CE

The Rosselli company, which has always been attentive to safety issues, builds its machines scrupulously following the directives imposed by the European Community. For this reason, the proposed saw benches comply with the Machinery Directive 2006/42/EC: they are characterized by all those features that allow the operator to work in complete tranquillity.

DISENGAGEMENT - SAFETY SYSTEM

Following the rules imposed by the Regulations (Machinery Directive 2006/42/EC) the machine is equipped with a braking safety system which we call “DISINNESTO“. This system consists of an emergency lever that the operator can release in dangerous situations thus allowing the blade to stop within 10 seconds even though the cardan shaft continues to be in motion.

LOCKING SYSTEM

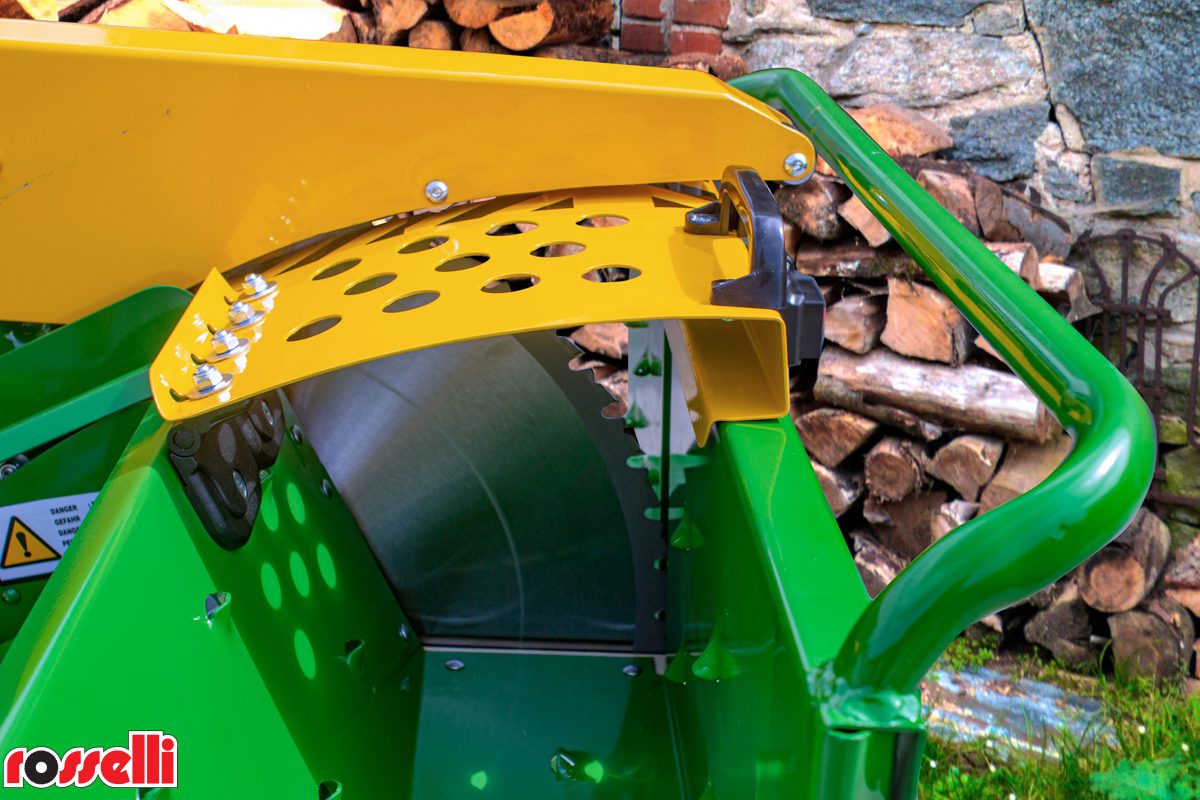

This system stops the log ensuring a clean and precise cut and allows the operator to keep his hands busy so as to avoid contact with the blade.

THE SAFETY OF THE SAW BENCHES IS IMPORTANT TO US

"This Yoghi 600 Circular Saw will make your housework simpler and easier"

Why buy a Rosselli Yoghi 600 M or Yoghi 600 T circular saw?

SAFETY

RELIABILITY

USE

ASSISTANCE

SAFETY

The Yoghi 600 M and Yoghi 600 T saw bench with electric motor is built according to the standards established by the EC/662 machinery directive and this allows the user to carry out cutting operations without incurring any danger. For years now, the Rosselli company has been committed to supplying its customers with machines which, despite their low cost, guarantee the highest levels of safety.

RELIABILITY

Thanks to the robot-welded frame, the circular saw with electric motor model Yoghi 600 M and Yoghi 600 T guarantees a high level of sturdiness and high-level performance even after several years of use. Thanks to the particular painting process adopted by Rosselli, the metal parts of the machine are protected for a long time from corrosion and aggressive agents.

USE

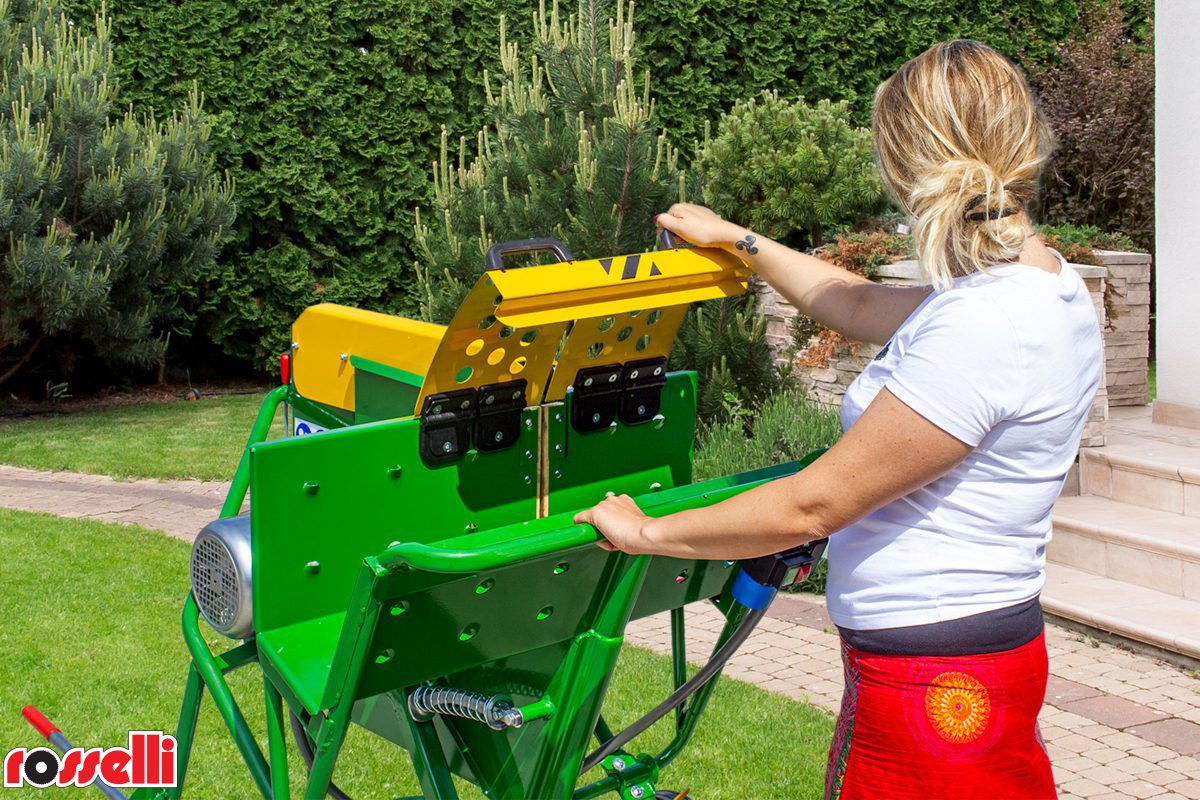

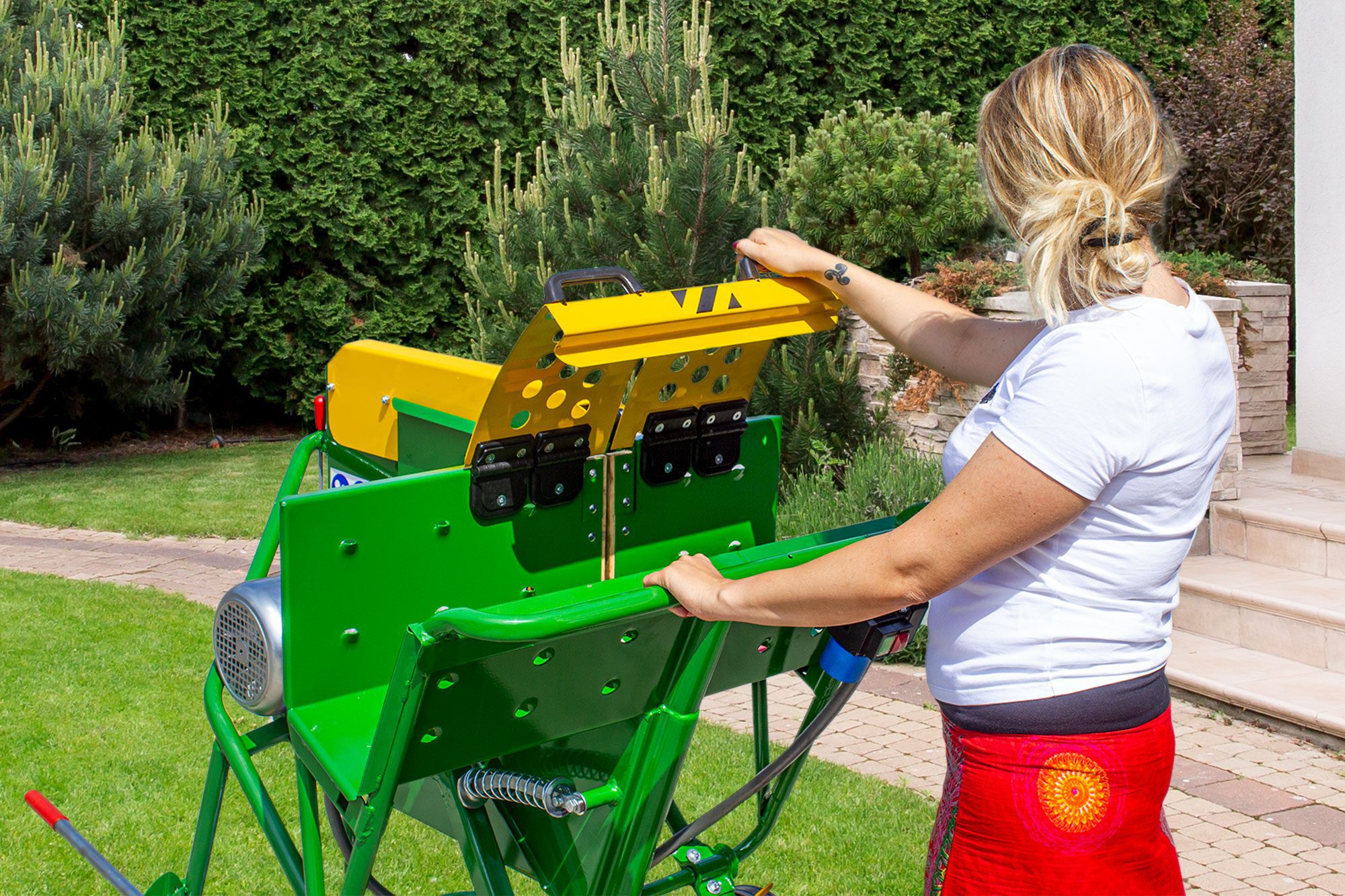

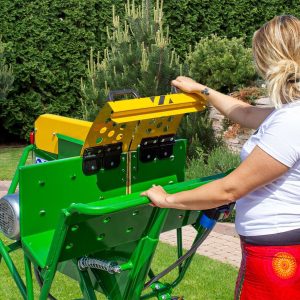

The Yoghi 600 model swing saw bench with swinging table is particularly appreciated by the company’s customers for its extreme operating simplicity. A few simple gestures allow you to make a clean and precise cut without applying excessive force. This also allows women and the elderly to be able to cut wood in complete autonomy.

ASSISTANCE

The Yoghi 600 M and Yoghi 600 T circular saw are guaranteed for 3 years. Finding any spare parts is possible even after a long time from the date of purchase. Rosselli provides assistance to both retailers and private individuals.
