Eco 96 Logsplitter for private use 6 Ton power

SUPPLY

POWER

6 TON

KNIFE

COLTELLO APERTURA LARGA

TYPOLOGY

VERTICALE

SPACCALEGNA A MOTORE SCOPPIO

TRAINABILE CON RUOTE PNEUMATICHE

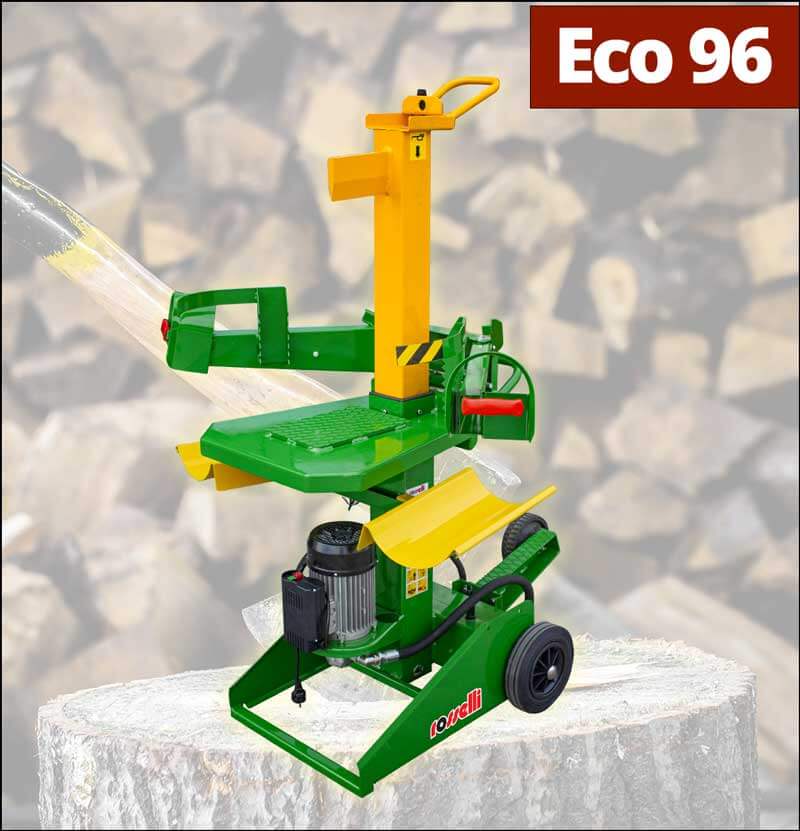

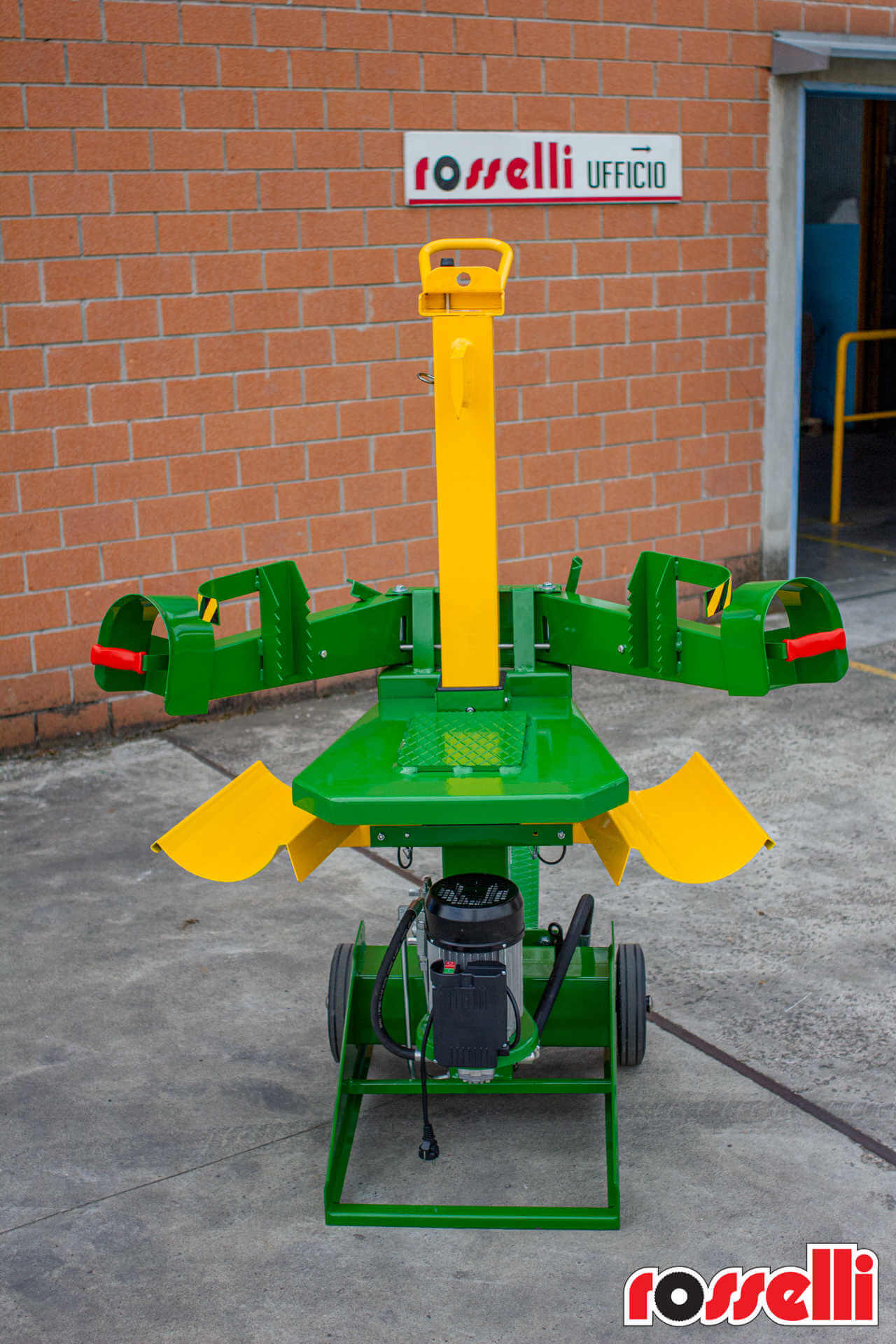

Eco 96 is a wood splitter lets you cut billets of a length of max. 55 cm. It is perfect for personal use and everybody can use it without risk and effort. Eco 96 family offers a great variety of wood splitters: with electric motor (220V and 380V), with shaft drive, with power take-off, with internal combustion engine, rototiller and also the one with both electric motor and shaft drive.

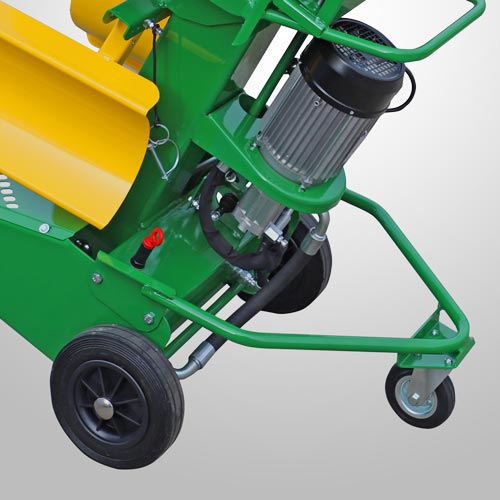

You can use your Eco 96 precisely where you need it. The large solid vulcanized rubber wheels and the rear handle make it easy to transport it by hand. The Eco 96, with its 6 ton of split force, is almost indestructible with its compact design, its high-quality components, its robust framework composed of thick plates. Each model is standard featured by an interchangeable filter and a limit switch (if you are cutting woods less long than 55 cm).

Model	Power Ton	Hidr. oil	Pressure	Speed to break	Cycle speed (Complet)	Cutting height	Supply	Max dimensions	Weight

Eco 96 M	5 Ton.	6 L.	180 bar°	8 sec	13 sec	500 mm	Electric motor 1,8 kw 2,5 HP 220V – Single-Phase	550x900x1500 mm.	90 Kg
Eco 96 T	5 Ton.	6 L.	180 bar°	16 sec	14 sec	500 mm	Ele. Mot. 1,5 kw 2 HP 220V – Three-Phase	550x900x1500 mm. mm.	90 Kg
Eco 96 C	5 Ton.	6 L.	180 bar°	16 sec	14 sec	500 mm	Cardan shaft	550x900x1500 mm. mm.	90 Kg
Eco 96 PF	5 Ton.	6 L.	180 bar°	16 sec	14 sec	500 mm	PTO shaft	550x900x1500 mm. mm.	90 Kg
Eco 96 MSC	5 Ton.	6 L.	180 bar°	16 sec	14 sec	500 mm	Electric motor	550x900x1500 mm. mm.	90 Kg
Eco 96 ID	5 Ton.	6 L.	180 bar°	16 sec	14 sec	500 mm	Tractor hydraulic system	550x900x1500 mm. mm.	90 Kg
Eco 96 M-C/PF	5 Ton.	6 L.	180 bar°	16 sec	14 sec	500 mm	Electric motor 220V Mon. – Cardan/PTO shaft	550x900x1500 mm. mm.	90 Kg
Eco 96 T-C/PF	5 Ton.	6 L.	180 bar°	16 sec	14 sec	500 mm	Electric motor 380V Mon. – Cardan/PTO shaft	550x900x1500 mm. mm.	90 Kg

Images

VIDEO

DATA SHEET WOODSPLITTER ECO 96

Data sheet to be displayed on the monitor (Click Here)

Click icon

Click the icons and view the log splitter technical features.

FEATURES

REAL POWER

REAL POWER IN THE TONNAGE OF LOG SPLITTERS ROSSELLI

Eco 96 is a 6-ton log splitter. The splitting force in ton is easy to calculate: Area of the hydraulic piston X hydraulic pump pressure (in this case 190 bar). The hydraulic circuit of our Apollo log splitter delivers 6-ton maximum splitting force.
