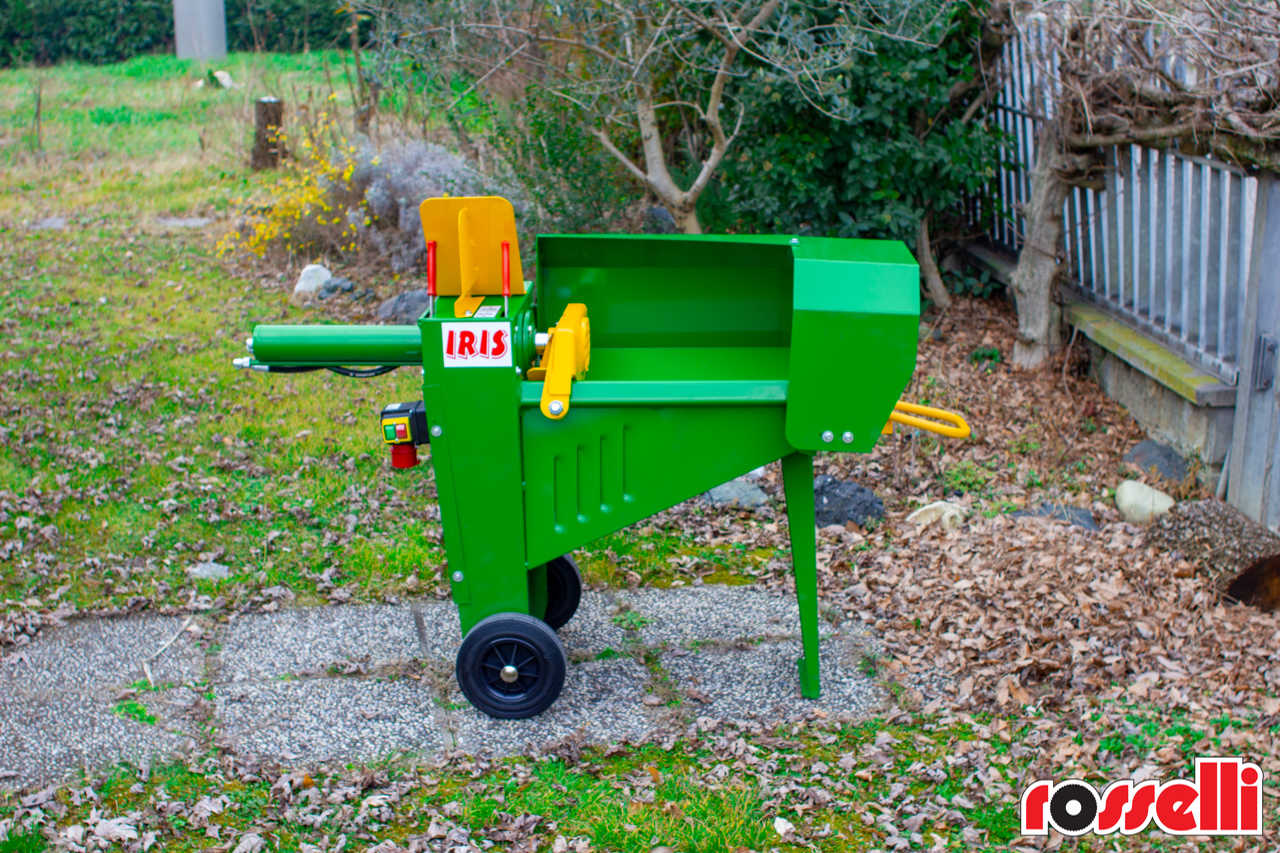

WOOD SPLITTER FOR FAMILY USEFOR LOGS OF 500 mm IN LENGTH

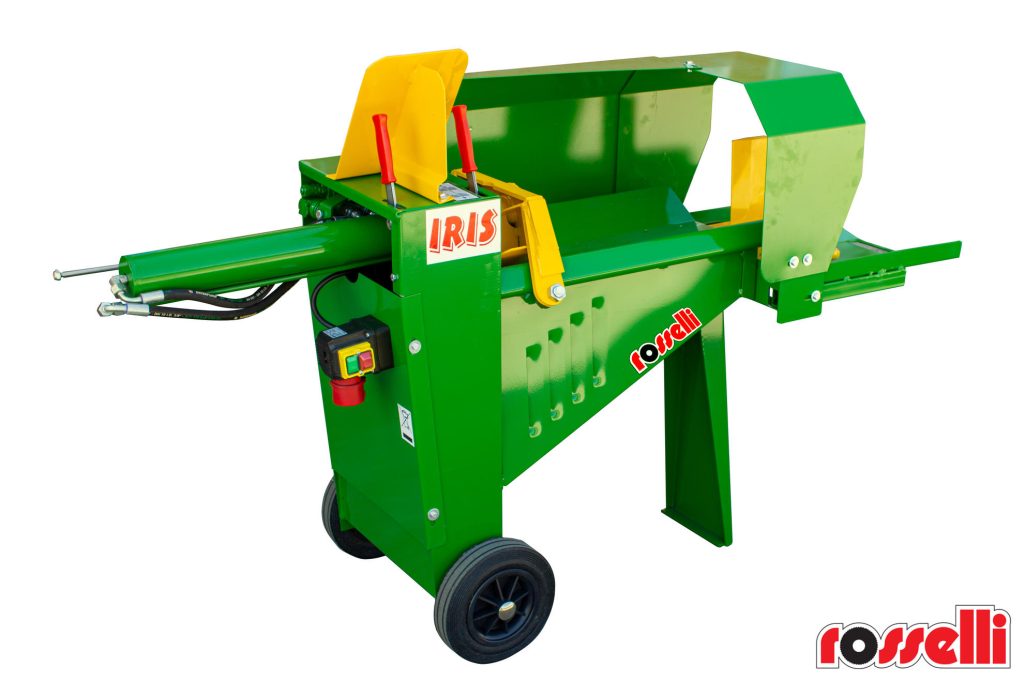

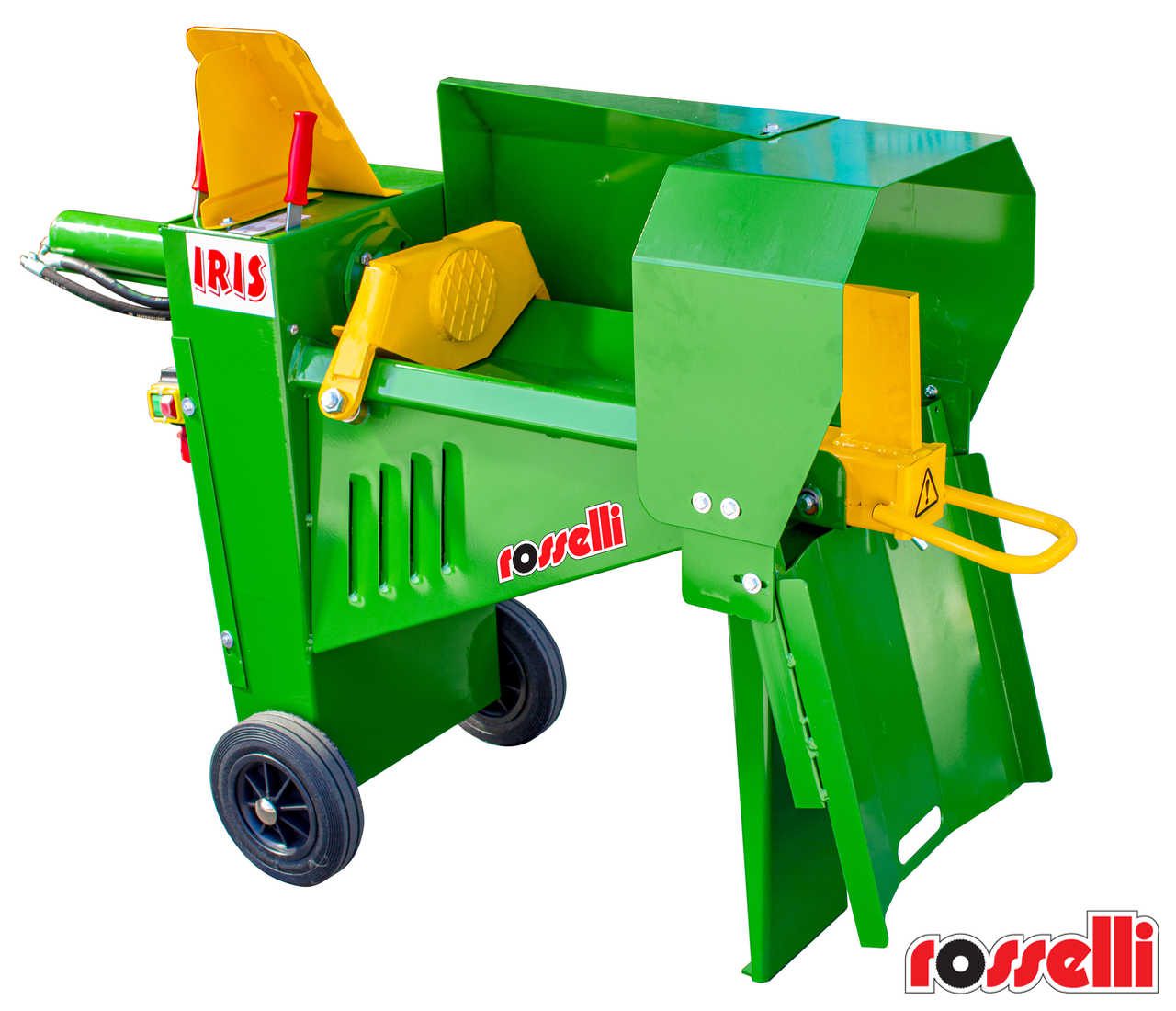

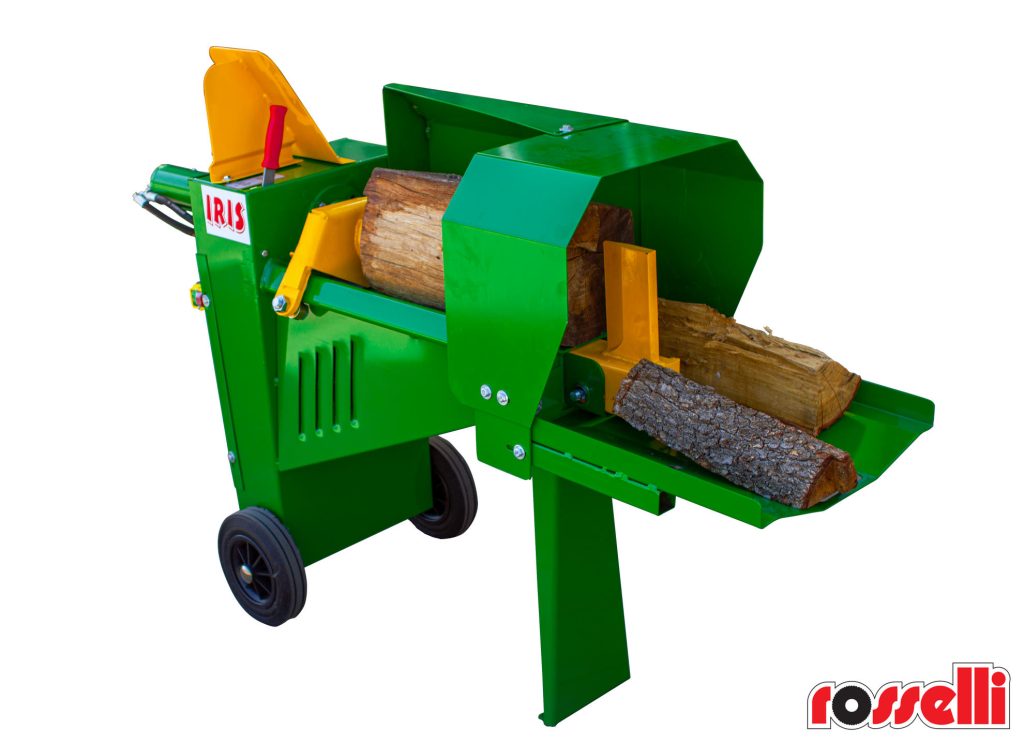

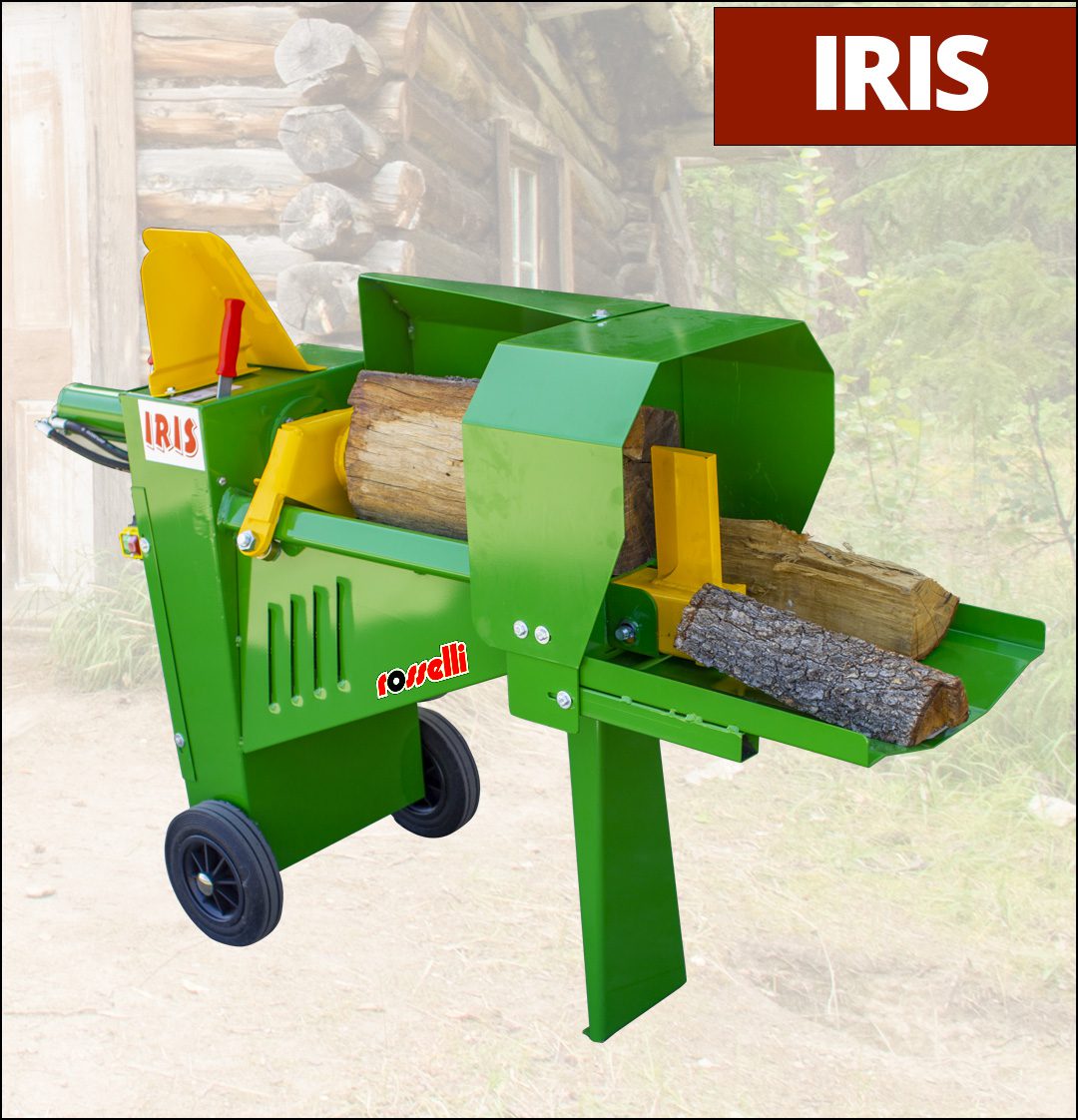

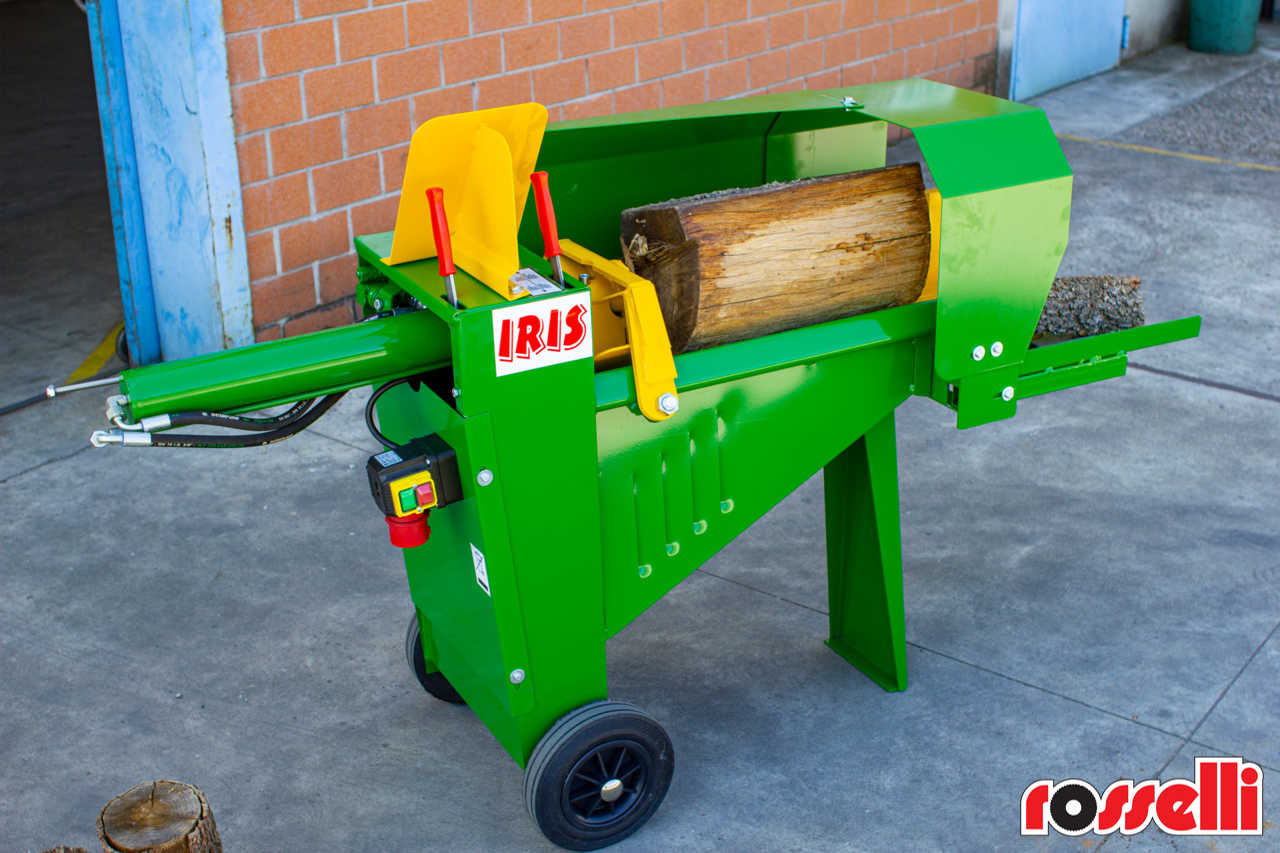

Chopping wood is tiring work that requires strength and time. With the new Iris log splitter from Rosselli, producing firewood will now be child’s play. In fact, even a beginner will be able to feel like a skilled woodsman. This horizontal log cutter is solid and robust, suitable for occasional cutters, but also for those who have to split large quantities of wood. Increasingly safer, thanks to the application of a new sheet metal protection on the work area (as required by European legislation) it is able to cut trunks up to 500 mm long. but if there is a need to split shorter trunks it is possible to adjust the limit switch to speed up the work. But if all this isn’t enough and you have numerous logs of varying lengths, Iris is equipped with a system called “2 Speed System” which allows you to use two speeds , the first faster to reach the log and the second slower to break it. Designed to be your work ally, it is designed to be able to place a wheelbarrow in front, so as to collect the cut logs and be immediately ready to transport them. Small but powerful , our log splitter has small dimensions and is excellent for both the garden and the countryside. It is easy to store it in the garage or in the work tools area. Last, but very important, the thrust power is 8 real tons !
Technical table
Model | Power | Liters of oil | Work pressure | Full cycle speed | Length of wooden logs | Supply | Maximum size | Weight |
|---|---|---|---|---|---|---|---|---|
 |  |  |  |  |  |  |  | |
IRIS M | 8 TON | 9 L. – 10 L. | 190-200 bar° | 14 sec | 500 mm | Mot. Electric 2.2 kw 3 HP 220V – Single phase
| 1100x540x1150 mm. | 165 Kg
|
IRIS T | 8 TON | 9 L. – 10 L.
| 190-200 bar°
| 14 sec
| 500 mm
| Mot. Electric 2.2 kw 3 HP 380V – Three-phase
| 1100x540x1150 mm. | 165 Kg |
IMAGES

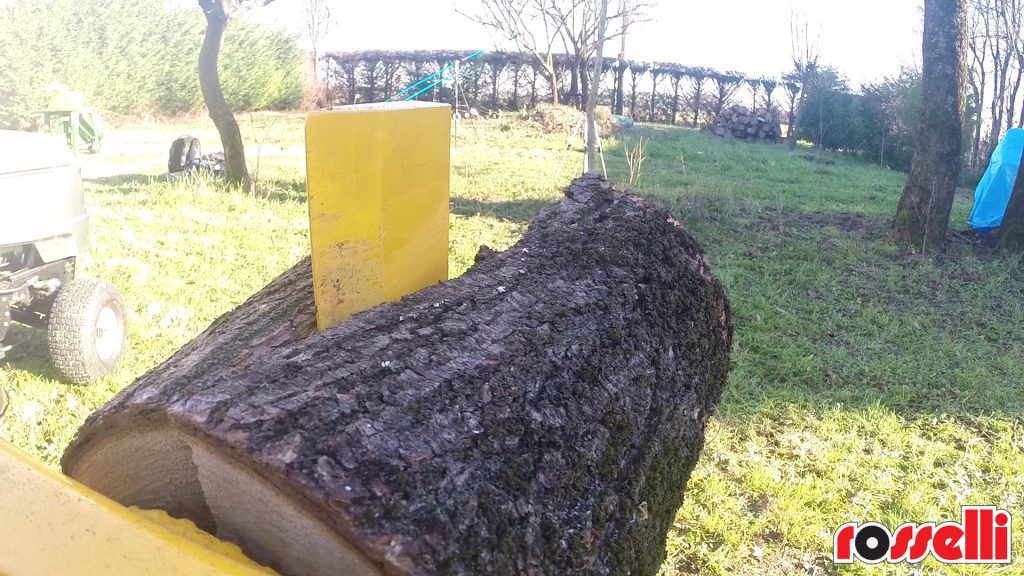

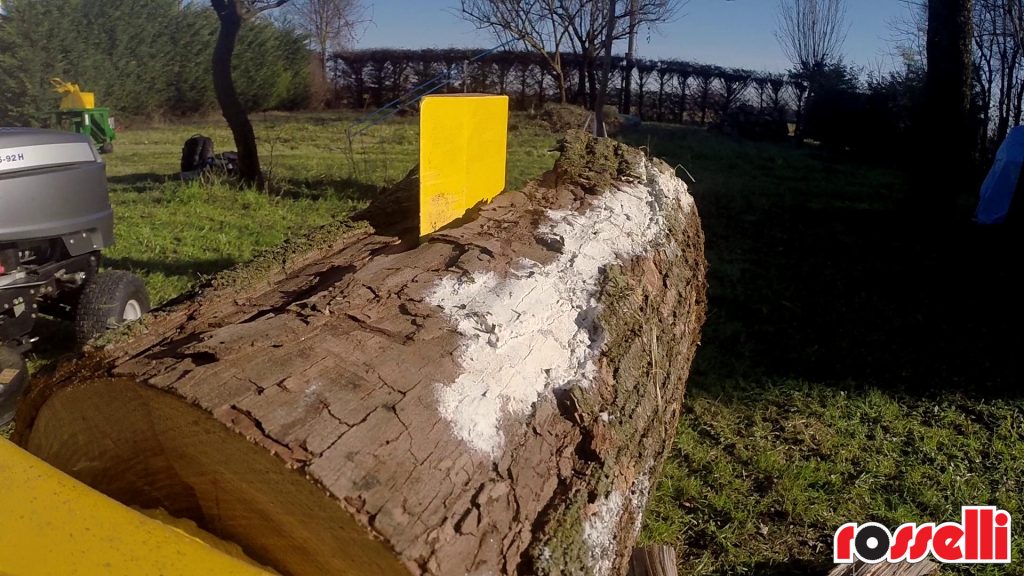

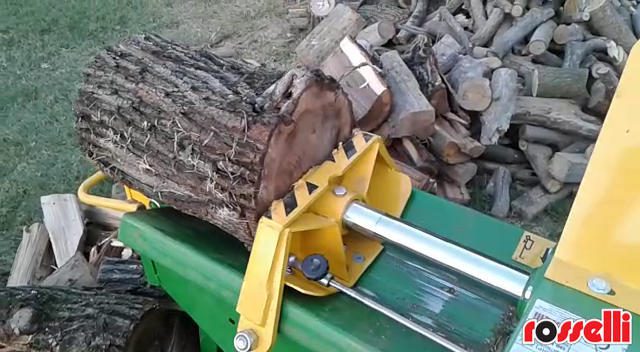

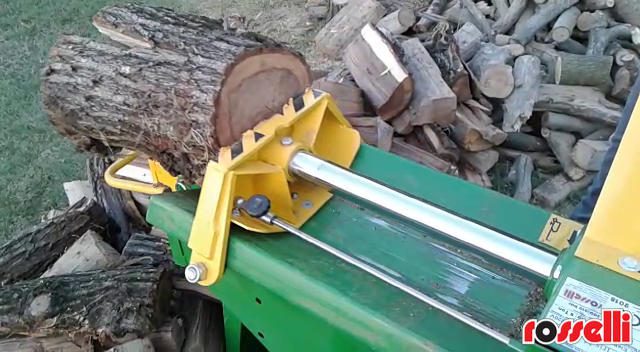

Watch the IRIS log splitter split firewood with 8 tons of power
[vc_row][vc_column]
[mk_padding_divider size=”75″][/vc_column][/vc_row][vc_row][vc_column width=”1/2″][vc_single_image image=”41773″ img_size=”full” alignment=”center”][vc_row_inner][vc_column_inner width=”1/2″][/vc_column_inner][vc_column_inner width=”1/2″][vc_custom_heading text=”SUPPLY” font_container=”tag:h2|font_size:24|text_align:center|color:%23d60000″ google_fonts=”font_family:Raleway%3A100%2C200%2C300%2Cregular%2C500%2C600%2C700%2C800%2C900|font_style:400%20regular%3A400%3Anormal”][vc_media_grid initial_loading_animation=”none” grid_id=”vc_gid:1667473264382-df4a68de-9cd6-1″ include=”24684″][vc_empty_space height=”45px”][/vc_column_inner][/vc_row_inner][/vc_column][vc_column width=”1/2″][vc_single_image image=”41779″ img_size=”full” alignment=”center”][vc_wp_text]Cutting wood is hard work that requires strength and time. With the new Iris log splitter by Rosselli, now producing firewood will be child’s play. In fact, even a beginner can feel like a skilled lumberjack. This horizontal log cutter is solid and robust, suitable for occasional cutters, but also for those who have to split large quantities of timber. Ever safer, thanks to the application of a new sheet metal protection on the work area (as required by European legislation) it is able to cut logs up to 500 mm in length. but if there is a need to split shorter logs, the limit switch can be adjusted to speed up the work. But if all this were not enough and you have numerous logs of variable length, Iris is equipped with a system called “2 Speed System” which allows you to use two speeds, the first faster to reach the log and the second slower to break it. Designed to be your work ally, it is designed to be able to set up a wheelbarrow in front of you, so as to collect the cut logs and be immediately ready to transport them. Small but powerful, our log splitter has small dimensions, excellent for both the garden and the countryside, it is easy to store it in the garage or in the work tool area. Last, but very important, the pushing power is 8 real tons![/vc_wp_text][vc_row_inner][vc_column_inner width=”1/3″][vc_custom_heading text=”POWER” font_container=”tag:h2|font_size:24|text_align:center|color:%23d60000″ google_fonts=”font_family:Raleway%3A100%2C200%2C300%2Cregular%2C500%2C600%2C700%2C800%2C900|font_style:400%20regular%3A400%3Anormal”][mk_padding_divider size=”2″][vc_single_image image=”29028″ img_size=”100×100″ alignment=”center” css_animation=”none” css=”.vc_custom_1484561181439{border-top-width: 2px !important;border-right-width: 2px !important;border-bottom-width: 2px !important;border-left-width: 2px !important;border-left-color: #d60000 !important;border-left-style: solid !important;border-right-color: #d60000 !important;border-right-style: solid !important;border-top-color: #d60000 !important;border-top-style: solid !important;border-bottom-color: #d60000 !important;border-bottom-style: solid !important;border-radius: 5px !important;}”][vc_text_separator title=”TON” color=”custom” border_width=”2″ accent_color=”#d60000″][/vc_column_inner][vc_column_inner width=”1/3″][vc_custom_heading text=”KNIFE” font_container=”tag:h2|font_size:24|text_align:center|color:%23d60000″ google_fonts=”font_family:Raleway%3A100%2C200%2C300%2Cregular%2C500%2C600%2C700%2C800%2C900|font_style:400%20regular%3A400%3Anormal”][ult_ihover thumb_shape=”square” thumb_height_width=”160″ responsive_size=”on” gutter_width=”5″][ult_ihover_item title=”SLIM KNIFE” thumb_img=”id^25100|url^https://www.rossellisnc.com/wp-content/uploads/Slim.png|caption^null|alt^null|title^Slim|description^null” thumbnail_border_styling=”none” title_responsive_font_size=”desktop:20px;” title_responsive_line_height=”desktop:28px;” desc_responsive_font_size=”desktop:12px;” desc_responsive_line_height=”desktop:18px;”][/ult_ihover_item][/ult_ihover][/vc_column_inner][vc_column_inner width=”1/3″][vc_custom_heading text=”TYPE” font_container=”tag:h2|font_size:24|text_align:center|color:%23d60000″ google_fonts=”font_family:Raleway%3A100%2C200%2C300%2Cregular%2C500%2C600%2C700%2C800%2C900|font_style:400%20regular%3A400%3Anormal”][ult_ihover thumb_shape=”square” thumb_height_width=”160″ responsive_size=”on” gutter_width=”5″][ult_ihover_item title=”HORIZONTAL” thumb_img=”id^41794|url^https://www.rossellisnc.com/wp-content/uploads/orizzontale.png|caption^null|alt^null|title^orizzontale|description^null” thumbnail_border_styling=”none” title_responsive_font_size=”desktop:20px;” title_responsive_line_height=”desktop:28px;” desc_responsive_font_size=”desktop:12px;” desc_responsive_line_height=”desktop:18px;”][/ult_ihover_item][/ult_ihover][/vc_column_inner][/vc_row_inner][/vc_column][/vc_row][vc_row][vc_column][vc_wp_text]
[/vc_wp_text][/vc_column][/vc_row][vc_row fullwidth=”true” enable_top_separator=”true” top_separator_color=”#ffffff” enable_bottom_separator=”true” bottom_separator_style=”arrow-right” bottom_separator_color=”#ffffff” id=”videoid” css=”.vc_custom_1573137184137{background-color: #eaeaea !important;}”][vc_column][mk_fancy_title color=”#d60000″ size=”30″ txt_transform=”uppercase” font_family=”Open+Sans” font_type=”google” align=”center”]
| Model | Power | Liters of oil | Work pressure | Cycle speed | Full cycle speed | Length of wooden logs | Supply | Maximum size | Weight |
 |
 |
 |
 |
 |
 |
 |
 |
 |
|
| Iris M | 8 Ton. | 10 L | 210 bar° | 16 sec | 14 sec | 500 mm | Electric Motor 1,6 kw 2 HP 220V – Single-Phase | 1100x540x1150 mm | 125 Kg |
| Iris T | 8 Ton. | 10 L | 210 bar° | 16 sec | 14 sec | 500 mm | Electric Motor 2,2 kw 3 HP 220V – Three-Phase | 1100x540x1150 mm | 125 Kg |
