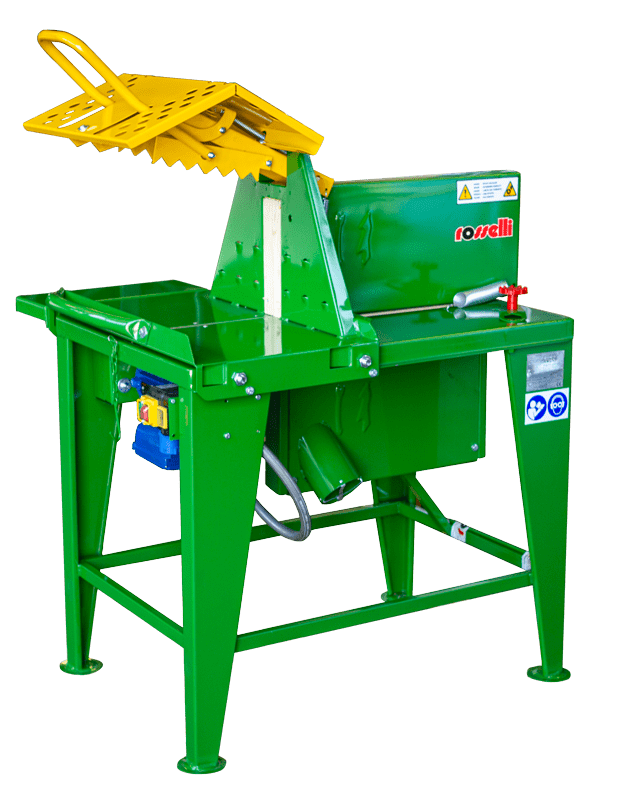

SAW BENCH WITH ELECTRIC MOTORWITH SLIDING PROTECTION
The Rosselli circular saw bench with sliding bench underwent some important changes and improvements over the years. This important evolution makes the Rosselli circular saw bench safer, more reliable and more robust. The S-M650 model is equipped with a 2HP (1,5kW) engine; the S-M655 model is equipped with a 3HP (2,2kW) engine.
Trapezoidal belts characterized by high performance and durability permit the movement transmission from the driveshaft to the shaft. This system allows to take up all possible recoils and stress on the driveshaft.
The machine is equipped with sliding protection and a sliding worktop (860x360mm) moves on high quality bearings. These bearings are strong enough to resist to strong pressure and continuous movements and they moves on another worktop. This circular saw bench is equipped with a Ø450 steel blade that allows to do 16 cm cuts because it is possible to use the whole blade surface. This machine is completely built in Italy respecting European standards and it gives priority to security.
FEATURES
IMAGES
VIDEO
OPTIONAL
[vc_row][vc_column][vc_empty_space height=”50″][vc_column_text]
| Model | Diameter Blade | Cutting depth | Working Table | Supply | Max Dimensions | Weight |
 |  |  |  |  |  | |
| S-M650 | Ø 450 mm | 160 mm | 860×360 mm | Electric motor – Single phase 1,5 Kw (2HP) 220V | 1060x890x1250 mm | 81 Kg |
| S-M655 | Ø 450 mm | 160 mm | 860×360 mm | Electric motor – Single phase 2,2 Kw (3HP) 380V | 1060x890x1250 mm | 81 Kg |
[/vc_column_text][vc_empty_space height=”50″][/vc_column][/vc_row][mk_page_section top_shape_color=”#ffffff” bottom_shape_size=”small” bottom_shape_color=”#d6d6d6″ bottom_shape_bg_color=”#ffffff” sidebar=”sidebar-1″][vc_column][vc_empty_space height=”15px”][vc_column_text disable_pattern=”false” align=”center” css=”.vc_custom_1648710764744{margin-bottom: 0px !important;}”]
FEATURES
[/vc_column_text][vc_column_text disable_pattern=”false” align=”center” css=”.vc_custom_1648710780619{margin-bottom: 0px !important;}”]
Now cutting wood is easy for everyone …

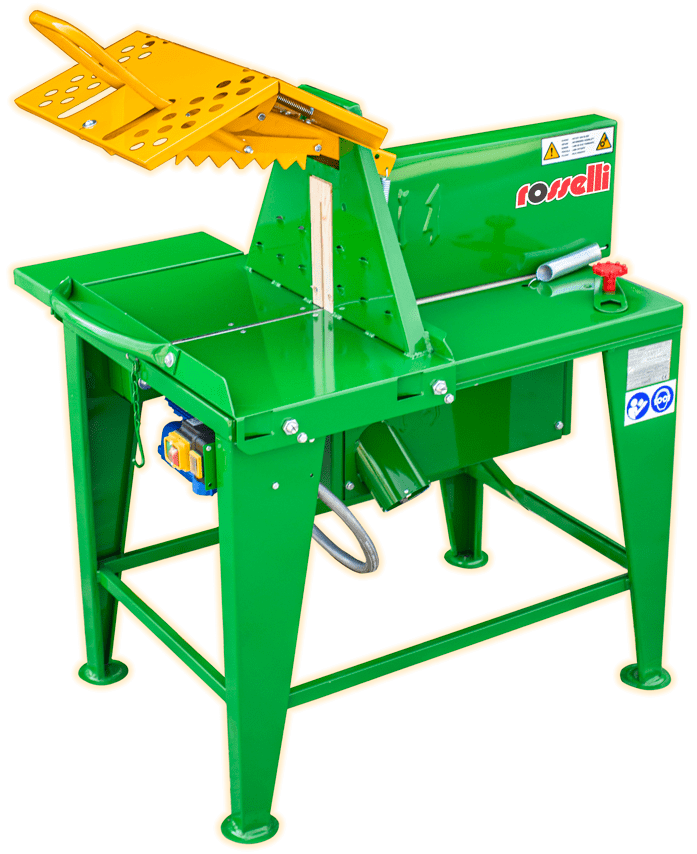

[/vc_column_text][ult_hotspot main_img=”id^42822|url^https://www.rossellisnc.com/wp-content/uploads/banchi-sega/s-m650/prima-foto/s-m650-carat.png|caption^null|alt^null|title^s-m650-carat|description^null” main_img_size=”main_img_custom” main_img_width=”650″][ult_hotspot_items icon=”Defaults-bullseye” icon_size=”38″ icon_color=”#d60000″ icon_style=”circle” tooltip_custom_bg_color=”#ffffff” tooltip_width=”380″ tooltip_continuous_animation=”glow” glow_color=”#dddddd” hotspot_position=”11.717956078234058,8.125″ tooltip_custom_border_size=”border-style:solid;|border-width:1px;border-radius:3px;|border-color:#d60000;”]
New protection system for greater coverage from the work area
[/ult_hotspot_items][ult_hotspot_items icon=”Defaults-bullseye” icon_size=”38″ icon_color=”#d60000″ icon_style=”circle” tooltip_custom_bg_color=”#ffffff” tooltip_width=”380″ tooltip_continuous_animation=”glow” glow_color=”#dddddd” hotspot_position=”52.98765152443572,57.55769230769231″ tooltip_custom_border_size=”border-style:solid;|border-width:1px;border-radius:3px;|border-color:#d60000;”]
Waste discharge with grate designed for wood chip vacuum cleaners
[/ult_hotspot_items][ult_hotspot_items icon=”Defaults-bullseye” icon_size=”38″ icon_color=”#d60000″ icon_style=”circle” tooltip_custom_bg_color=”#ffffff” tooltip_width=”380″ tooltip_continuous_animation=”glow” glow_color=”#dddddd” hotspot_position=”61.759807525570544,87.04807692307692″ tooltip_custom_border_size=”border-style:solid;|border-width:1px;border-radius:3px;|border-color:#d60000;”]
Iron sheet thickness between 3 mm and 5 mm
[/ult_hotspot_items][ult_hotspot_items icon=”Defaults-bullseye” icon_size=”38″ icon_color=”#d60000″ icon_style=”circle” tooltip_custom_bg_color=”#ffffff” tooltip_width=”380″ tooltip_continuous_animation=”glow” glow_color=”#dddddd” hotspot_position=”28.830868372445828,1.7211538461538463″ tooltip_custom_border_size=”border-style:solid;|border-width:1px;border-radius:3px;|border-color:#d60000;”]
Side extension for a larger work surface
[/ult_hotspot_items][ult_hotspot_items icon=”Defaults-bullseye” icon_size=”38″ icon_color=”#d60000″ icon_style=”circle” tooltip_custom_bg_color=”#ffffff” tooltip_width=”380″ tooltip_continuous_animation=”glow” glow_color=”#dddddd” hotspot_position=”29.54029940769949,89.1923076923077″ tooltip_custom_border_size=”border-style:solid;|border-width:1px;border-radius:3px;|border-color:#d60000;”]
Special key to unscrew the circular blade when the disc is worn out
[/ult_hotspot_items][ult_hotspot_items icon=”Defaults-bullseye” icon_size=”38″ icon_color=”#d60000″ icon_style=”circle” tooltip_custom_bg_color=”#ffffff” tooltip_width=”380″ tooltip_continuous_animation=”glow” glow_color=”#dddddd” hotspot_position=”46.05813322752545,23.807692307692307″ tooltip_custom_border_size=”border-style:solid;|border-width:1px;border-radius:3px;|border-color:#d60000;”]
Special switch with undervoltage and thermal coil in case of electrical current overload
[/ult_hotspot_items][ult_hotspot_items icon=”Defaults-bullseye” icon_size=”38″ icon_color=”#d60000″ icon_style=”circle” tooltip_custom_bg_color=”#ffffff” tooltip_width=”380″ tooltip_continuous_animation=”glow” glow_color=”#dddddd” hotspot_position=”48.62589927678666,59.5″ tooltip_custom_border_size=”border-style:solid;|border-width:1px;border-radius:3px;|border-color:#d60000;”]
Two special belts for constant transmission
[/ult_hotspot_items][ult_hotspot_items icon=”Defaults-bullseye” icon_size=”38″ icon_color=”#d60000″ icon_style=”circle” tooltip_custom_bg_color=”#ffffff” tooltip_width=”380″ tooltip_continuous_animation=”glow” glow_color=”#dddddd” hotspot_position=”51.01159985915431,15.807692307692308″ tooltip_custom_border_size=”border-style:solid;|border-width:1px;border-radius:3px;|border-color:#d60000;”]
Hook for closing the protection when not in use
[/ult_hotspot_items][ult_hotspot_items icon=”Defaults-bullseye” icon_size=”38″ icon_color=”#d60000″ icon_style=”circle” tooltip_custom_bg_color=”#ffffff” tooltip_width=”380″ tooltip_continuous_animation=”glow” glow_color=”#dddddd” hotspot_position=”22.858773889713724,44.55769230769231″ tooltip_custom_border_size=”border-style:solid;|border-width:1px;border-radius:3px;|border-color:#d60000;”]
Wood locking system suitable for a stable and perpendicular cut to the log
[/ult_hotspot_items][ult_hotspot_items icon=”Defaults-bullseye” icon_size=”38″ icon_color=”#d60000″ icon_style=”circle” tooltip_custom_bg_color=”#ffffff” tooltip_width=”340″ tooltip_continuous_animation=”glow” glow_color=”#dddddd” hotspot_position=”49.50983512220044,29.5″ tooltip_custom_border_size=”border-style:solid;|border-width:1px;border-radius:3px;|border-color:#d60000;”]
Disinnesto di emergenza per fermare il disco di taglio
[/ult_hotspot_items][/ult_hotspot][/vc_column][/mk_page_section][vc_row][vc_column css=”.vc_custom_1512577050074{background-color: #d60000 !important;}”][mk_ornamental_title text_color=”#ffffff” font_family=”none” font_size=”22″ ornament_style=”norman-short-double” nss_align=”center” ornament_color=”#d60000″ margin_top=”10″]OPTIONAL[/mk_ornamental_title][mk_imagebox show_as=”column” column=”4″][mk_imagebox_item item_image=”https://www.rossellisnc.com/wp-content/uploads/Widia2.jpg” background_color=”#e2e2e2″ item_title=”WIDIA BLADE” title_text_size=”20″ title_color=”#d60000″ btn_text=”Click Here” btn_url=”https://www.rossellisnc.com/our-circular-blade/?lang=en” btn_background_color=”#888888″ btn_text_color=”#ffffff” btn_hover_background_color=”#b5b5b5″]more powerful blade[/mk_imagebox_item][mk_imagebox_item item_image=”https://www.rossellisnc.com/wp-content/uploads/Assale-Ruote2.jpg” background_color=”#e2e2e2″ item_title=”wheel axle” title_text_size=”20″ title_color=”#d60000″ btn_text=”Click Here” btn_background_color=”#888888″ btn_text_color=”#ffffff” btn_hover_background_color=”#b5b5b5″]to move the circular saw[/mk_imagebox_item][mk_imagebox_item item_image=”https://www.rossellisnc.com/wp-content/uploads/assale-pneumatico-gommato-1.jpg” background_color=”#e2e2e2″ item_title=”Tires” title_text_size=”20″ title_color=”#d60000″ btn_text=”Click Here” btn_background_color=”#888888″ btn_text_color=”#ffffff” btn_hover_background_color=”#b5b5b5″]for rough terrain[/mk_imagebox_item][/mk_imagebox][/vc_column][/vc_row][mk_page_section bg_color=”#d6d6d6″ full_width=”true” has_top_shape_divider=”true” top_shape_size=”small” top_shape_color=”#ffffff” top_shape_bg_color=”#d6d6d6″ has_bottom_shape_divider=”true” bottom_shape_size=”small” bottom_shape_color=”#ffffff” bottom_shape_bg_color=”#d6d6d6″ sidebar=”sidebar-1″][vc_column width=”1/2″][vc_empty_space height=”40px”][info_list position=”right” style=”circle with_bg” icon_bg_color=”#000000″ icon_color=”#d60000″ font_size_icon=”30″ connector_animation=”fadeInUp”][info_list_item list_title=”MACHINERY DIRECTIVE 2006/42/EC” list_icon=”Defaults-gavel legal” animation=”swing” desc_font=”font_family:Open Sans|font_call:Open+Sans” title_font_size=”desktop:24px;” desc_font_size=”desktop:18px;” desc_font_line_height=”desktop:23px;”]

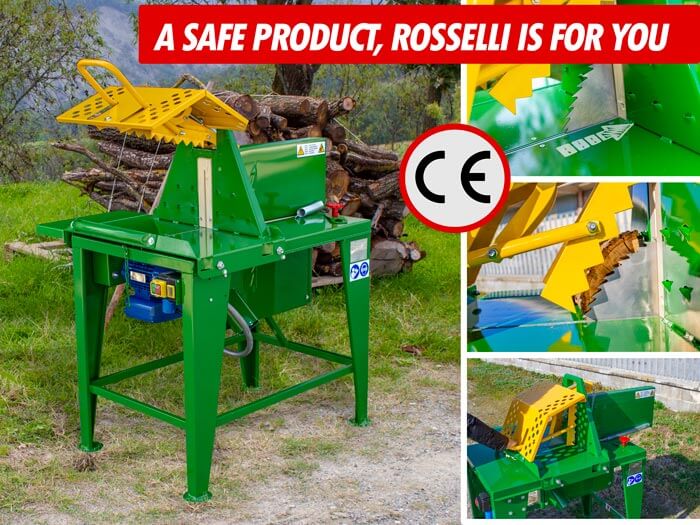

The Rosselli company has always paid great attention to security issues, all our machines fully respect the directives imposed by the European Community. For this reason every Saw Bench follows the Machinery Directive 2006/42/EC : Rosselli machines are equipped with all devices that allow the operator to work in a condition of complete security.[/info_list_item][info_list_item list_title=”LOCK DEVICE” list_icon=”Defaults-child” animation=”swing” desc_font=”font_family:Open Sans|font_call:Open+Sans” title_font_size=”desktop:24px;” desc_font_size=”desktop:18px;” desc_font_line_height=”desktop:23px;”]
This device stops the log and guarantees a sharp and defined cut; both hands are needed to operate the machine in order to avoid any contact with the blade.[/info_list_item][/info_list][/vc_column][vc_column width=”1/2″][mk_image src=”https://www.rossellisnc.com/wp-content/uploads/2021/07/s-rm650-safety.jpg” image_size=”full” frame_style=”border_shadow” align=”center” margin_bottom=”0″][/vc_column][/mk_page_section][mk_page_section bg_position=”center center” bg_repeat=”no-repeat” enable_3d=”true” speed_factor=”-0.4″ bg_gradient=”left_top” video_opacity=”0.7″ min_height=”400″ full_width=”true” js_vertical_centered=”true” padding_top=”20″ padding_bottom=”24″ top_shape_style=”jagged-top” top_shape_color=”” top_shape_bg_color=”#d60000″ bottom_shape_color=”#ffffff” sidebar=”sidebar-1″][vc_column width=”1/2″][mk_image src=”https://www.rossellisnc.com/wp-content/uploads/interruttore-sega-mon-tri.jpg” image_size=”full” align=”center”][/vc_column][vc_column width=”1/2″][info_list position=”right” icon_color=”#d60000″ font_size_icon=”30″ icon_border_style=”dashed” icon_border_size=”1″ connector_animation=”fadeInUp”][info_list_item list_title=”EMERGENCY BRAKE” list_icon=”Defaults-bolt flash” animation=”swing” desc_font=”font_family:Open Sans|font_call:Open+Sans” title_font_size=”desktop:24px;” desc_font_size=”desktop:18px;” desc_font_line_height=”desktop:23px;”]
the machine is equipped with a life saving device. As required by European rules, by pressing the emergency button, the blade stops within ten seconds.[/info_list_item][info_list_item list_title=”THERMAL” list_icon=”Defaults-bolt flash” animation=”swing” desc_font=”font_family:Open Sans|font_call:Open+Sans” title_font_size=”desktop:24px;” desc_font_size=”desktop:18px;” desc_font_line_height=”desktop:23px;”]
in case of engine overheating (due to an inadequate current or to excessive workload) it stops the machine working, avoiding damage to the engine.[/info_list_item][info_list_item list_title=”MINIMUM-TENSION REEL” list_icon=”Defaults-bolt flash” animation=”swing” desc_font=”font_family:Open Sans|font_call:Open+Sans” title_font_size=”desktop:24px;” desc_font_size=”desktop:18px;” desc_font_line_height=”desktop:23px;”]
in case of black out, it prevents the automatic restart of the machine; it must be activated using the special switch.[/info_list_item][/info_list][/vc_column][/mk_page_section][mk_page_section bg_image=”https://www.rossellisnc.com/wp-content/uploads/s-m650-scie.jpg” bg_position=”right center” bg_repeat=”no-repeat” enable_3d=”true” speed_factor=”-0.4″ video_mask=”true” bg_gradient=”left_top” video_opacity=”0.7″ min_height=”400″ full_width=”true” js_vertical_centered=”true” padding_top=”20″ padding_bottom=”24″ top_shape_style=”jagged-top” top_shape_color=”” top_shape_bg_color=”#d60000″ bottom_shape_color=”#ffffff” sidebar=”sidebar-1″][vc_column width=”1/2″][mk_image src=”https://www.rossellisnc.com/wp-content/uploads/s-m655-5.jpg” image_size=”full” frame_style=”rounded” align=”center”][/vc_column][vc_column width=”1/2″][mk_mini_callout]
Why to buy a Rosselli’s saw bench model S-M650 or S-M655 ?
[/mk_mini_callout][vc_accordions open_toggle=”1″ container_bg_color=”#ffffff”][vc_accordion_tab icon=”mk-moon-medal-2″ title=”SAFETY”][vc_column_text title=”SAFETY” margin_bottom=”10″ animation=”fade-in”]The S-M650 or S-M655 saw bench is built according to the rules established by the machinery directive EC/662 and this allows the user to perform cutting operations without incurring any danger. The Rosselli company, for several years now, is committed to providing its customers with machines that, in spite of their low cost, ensuring the highest levels of security.[/vc_column_text][/vc_accordion_tab][vc_accordion_tab icon=”mk-moon-checkbox” title=”RELIABILITY”][vc_column_text title=”RELIABILITY” margin_bottom=”10″ animation=”fade-in”]Thanks to the frame welded by a robot, the S-M650 / S-M655 saw bench provides a high level of robustness and high performance even after several years of use. Thanks to the special coating process adopted by Rosselli, the metal parts of the machine are protected against corrosion and aggressive agents.[/vc_column_text][/vc_accordion_tab][vc_accordion_tab icon=”mk-moon-stats-up” title=”USE”][vc_column_text title=”USE” margin_bottom=”10″]The saw bench S-M650 / S-M655 220V is particularly appreciated by the customers of the company for its extreme operational simplicity. A few simple actions allow to make a clean and precise cut without excessive force. This allows also to women and the elderly to chop wood in complete autonomy.[/vc_column_text][/vc_accordion_tab][vc_accordion_tab icon=”mk-moon-tools” title=”ASSISTANCE”][vc_column_text title=”ASSISTANCE” margin_bottom=”10″]S-M650 / S-M655 saw bench electric motor 220V is guaranteed for two years. Even after a long time from the date of purchase it will be easy to purchase spare parts. The Rosselli company provides assistance to both dealers and individuals.[/vc_column_text][/vc_accordion_tab][/vc_accordions][/vc_column][/mk_page_section][vc_row fullwidth=”true” enable_top_separator=”true” top_separator_style=”slope-right” top_separator_color=”#ffffff” id=”fotoid” css=”.vc_custom_1643981524074{background-color: #d60000 !important;}”][vc_column][vc_empty_space height=”20 px”][vc_icon icon_fontawesome=”fas fa-images” color=”custom” background_style=”rounded” background_color=”custom” size=”lg” align=”center” custom_color=”#d60000″ custom_background_color=”#ffffff”][vc_empty_space height=”20 px”][mk_fancy_title color=”#d60000″ size=”30″ txt_transform=”uppercase” font_family=”Open+Sans” font_type=”google” align=”center”]Take a look at our electric saw benches “S-M650 and S-M655”[/mk_fancy_title][vc_empty_space height=”30 px”][jig_vc]
View the videos of the electric motor saw bench “S-M650 S-M655”
[/mk_fancy_title][vc_empty_space height=”20 px”] [vc_empty_space height=”100px”][/vc_column][/vc_row][vc_row fullwidth=”true” fullwidth_content=”false” bg_type=”grad” bg_grad=”background: -webkit-gradient(linear, left top, left bottom, color-stop(0%, #FFFFFF), color-stop(99%, #CCCCCC));background: -moz-linear-gradient(top,#FFFFFF 0%,#CCCCCC 99%);background: -webkit-linear-gradient(top,#FFFFFF 0%,#CCCCCC 99%);background: -o-linear-gradient(top,#FFFFFF 0%,#CCCCCC 99%);background: -ms-linear-gradient(top,#FFFFFF 0%,#CCCCCC 99%);background: linear-gradient(top,#FFFFFF 0%,#CCCCCC 99%);” id=”PDFID”][vc_column][vc_row_inner][vc_column_inner][vc_empty_space height=”20 px”][vc_icon icon_fontawesome=”far fa-file-pdf” color=”custom” background_style=”rounded” background_color=”custom” size=”lg” align=”center” custom_color=”#ffffff” custom_background_color=”#d60000″][vc_column_text css=”.vc_custom_1648711465859{margin-bottom: 0px !important;}”]
DOWNLOAD PDF
Technical data sheet of the electric saw bench S-M650 S-M655
[/vc_column_text][/vc_column_inner][/vc_row_inner][/vc_column][vc_column border_color=”#d00000″ width=”1/3″ css=”.vc_custom_1643969186981{background-color: #ffffff !important;}”][vc_empty_space][mk_font_icons icon=”mk-icon-file-pdf-o” color=”#d60000″ size=”x-large” circle=”true” circle_color=”#ffffff” circle_border_width=”2″ circle_border_color=”#555555″ align=”center”][mk_image src=”https://www.rossellisnc.com/wp-content/uploads/download-pc-1.svg” image_width=”300″ svg=”true” align=”center”][mk_fancy_title tag_name=”h3″ color=”#d00000″ size=”22″ force_font_size=”true” margin_bottom=”5″ font_family=”none” align=”center”]
DOWNLOAD THE TECHNICAL SHEET IN PDF
[/mk_fancy_title][ult_buttons btn_title=”DOWNLOAD” btn_link=”url:https%3A%2F%2Fwww.rossellisnc.com%2Fwp-content%2Fuploads%2Fs-m650-s-m655-web-inf-eng.pdf%22%20download%3D%22%22|title:S-M650%20S-M655″ btn_align=”ubtn-center” btn_size=”ubtn-block” btn_title_color=”#ffffff” btn_bg_color=”#d60000″ icon=”Defaults-download” icon_size=”32″ icon_color=”#ffffff” btn_icon_pos=”ubtn-sep-icon-at-left” btn_shadow=”shd-bottom” btn_shadow_color=”#c4c4c4″ btn_shadow_size=”5″ btn_shadow_click=”enable” btn_font_size=”desktop:14px;”][/vc_column][vc_column border_color=”#d60000″ width=”1/3″ css=”.vc_custom_1643969335251{background-color: #ffffff !important;}”][vc_empty_space][mk_font_icons icon=”mk-moon-images-2″ color=”#d60000″ size=”x-large” circle=”true” circle_color=”#ffffff” circle_border_width=”2″ circle_border_color=”#555555″ align=”center”][mk_padding_divider][mk_photo_album space=”1″ column=”1″ image_size=”full” album_height=”365″ description_preview=”false” overlay_preview=”false” pagination_style=”2″ show_title_desc_without_hover=”true” title_preview_style=”bar” show_thumbnail_without_hover=”true” cover_image_hover_animation=”slide” posts=”59474″][vc_empty_space height=”55px”][/vc_column][vc_column border_color=”#d60000″ width=”1/3″ css=”.vc_custom_1643969353862{background-color: #ffffff !important;}”][vc_empty_space][mk_font_icons icon=”mk-li-monitor” color=”#d60000″ size=”x-large” circle=”true” circle_color=”#ffffff” circle_border_width=”2″ circle_border_color=”#555555″ align=”center”][mk_image src=”https://www.rossellisnc.com/wp-content/uploads/monitor-pc.svg” image_width=”300″][mk_fancy_title tag_name=”h3″ color=”#d00000″ size=”22″ force_font_size=”true” margin_bottom=”5″ font_family=”none” align=”center”]
VISUALIZZA LA SCHEDA TECNICA A MONITOR
[/mk_fancy_title][ult_buttons btn_title=”VIEW” btn_link=”url:https%3A%2F%2Fwww.rossellisnc.com%2F%3Fr3d%3Delectric-saw-bench-for-gardening|title:S-M650%20S-M655%20%E2%80%93%20Sega%20circolare%20%E2%80%93%20Ita” btn_align=”ubtn-center” btn_size=”ubtn-block” btn_title_color=”#ffffff” btn_bg_color=”#d60000″ icon=”Defaults-desktop” icon_size=”32″ icon_color=”#ffffff” btn_icon_pos=”ubtn-sep-icon-at-left” btn_shadow=”shd-bottom” btn_shadow_color=”#c4c4c4″ btn_shadow_size=”5″ btn_shadow_click=”enable” btn_font_size=”desktop:14px;”][/vc_column][vc_column][vc_empty_space][/vc_column][/vc_row]
