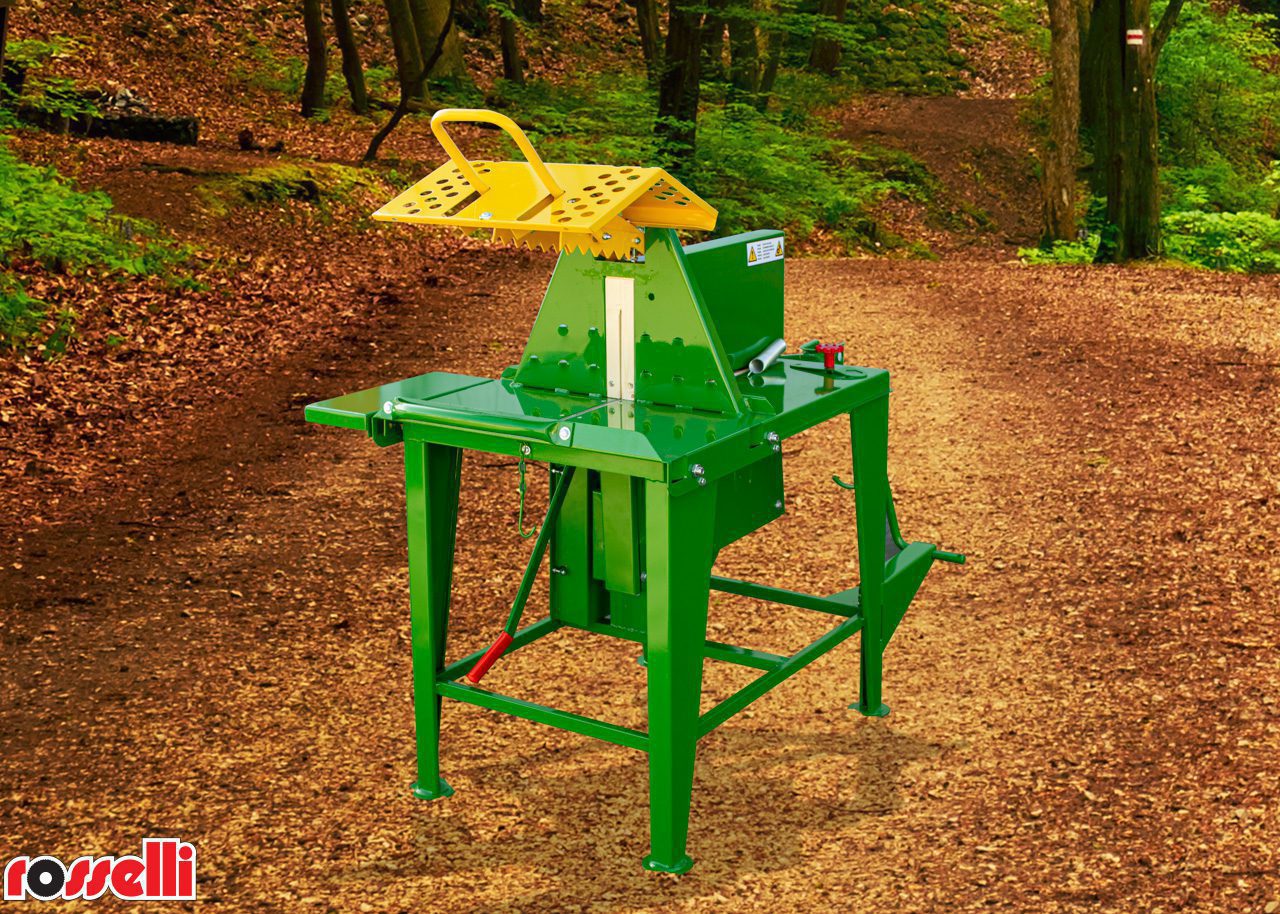

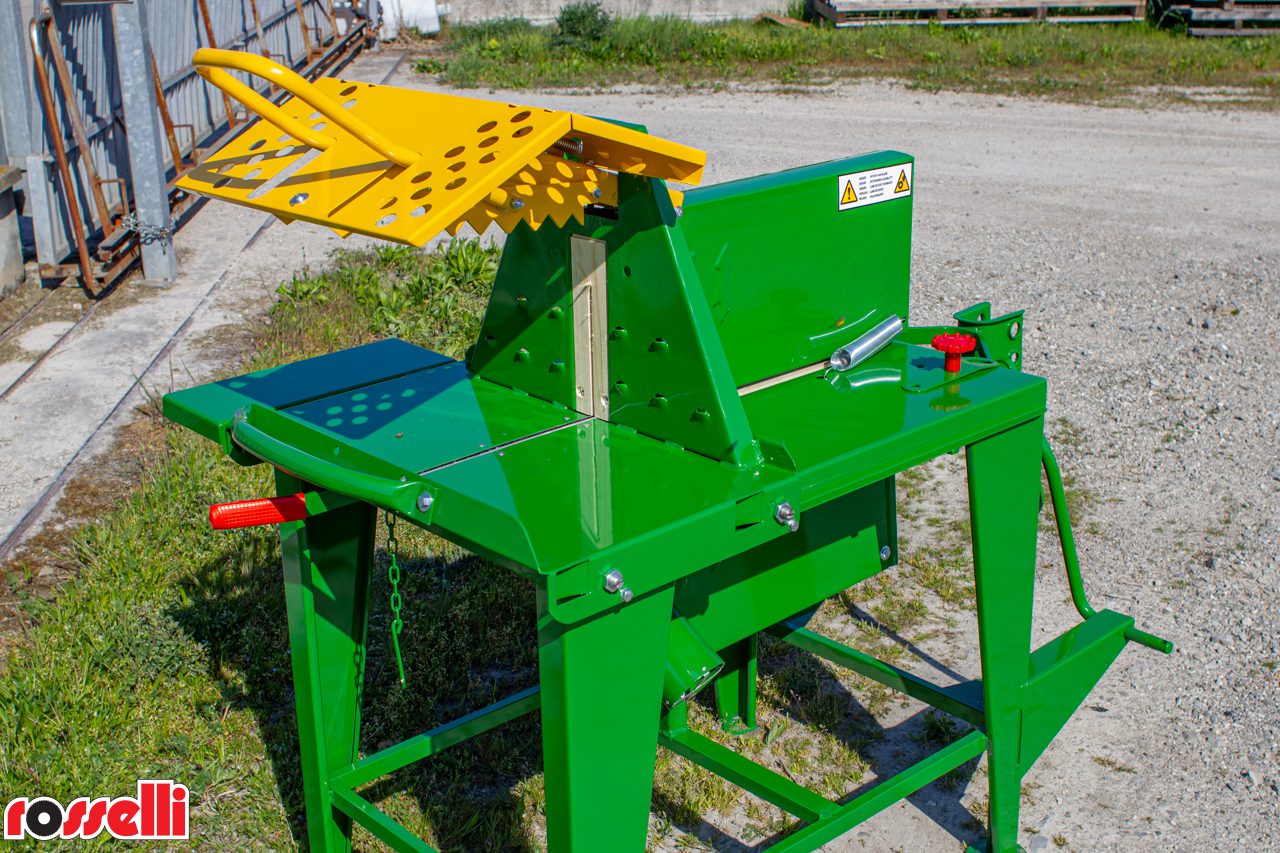

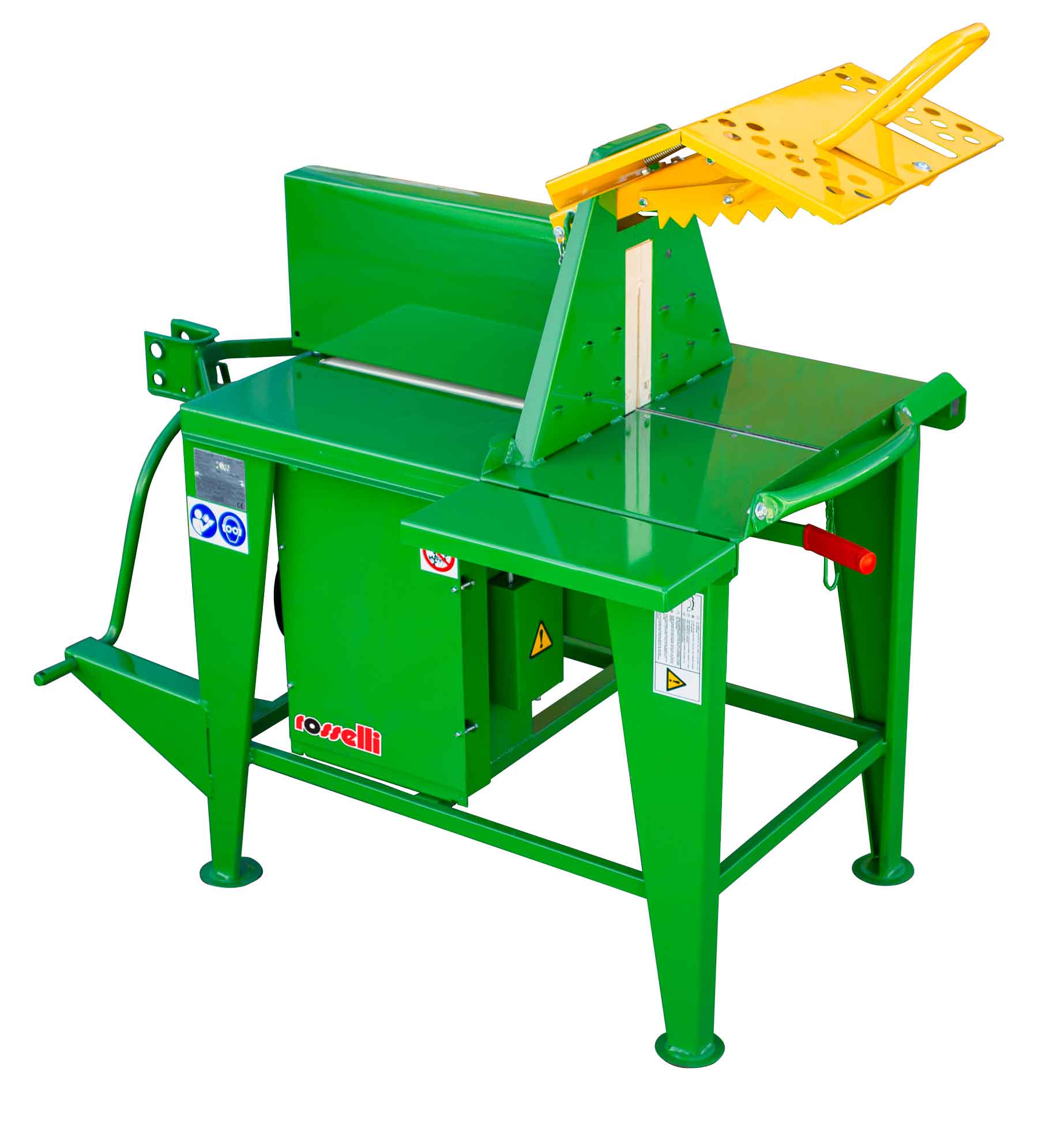

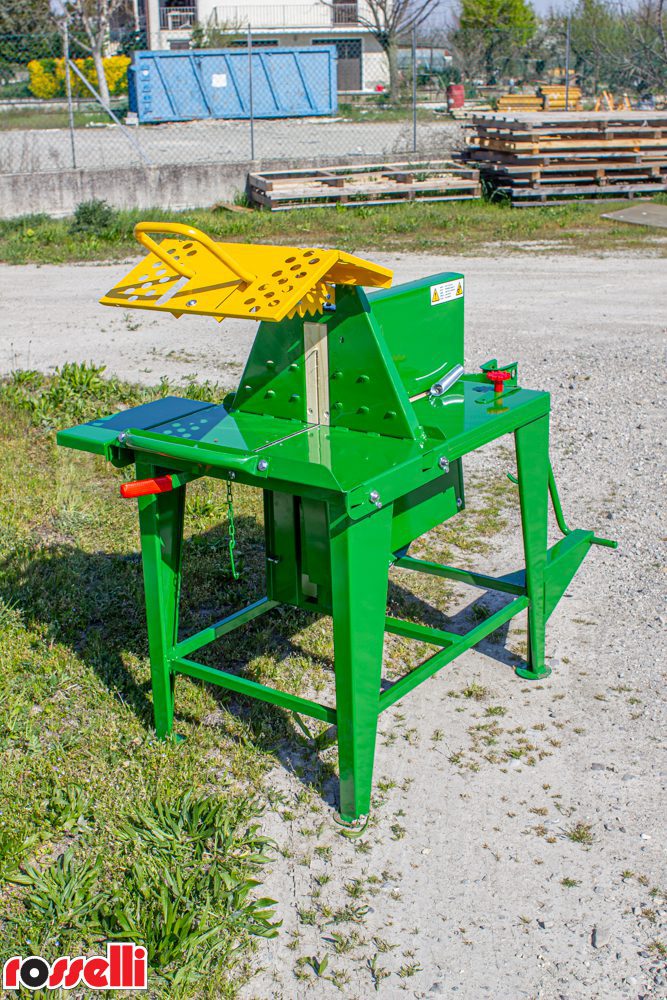

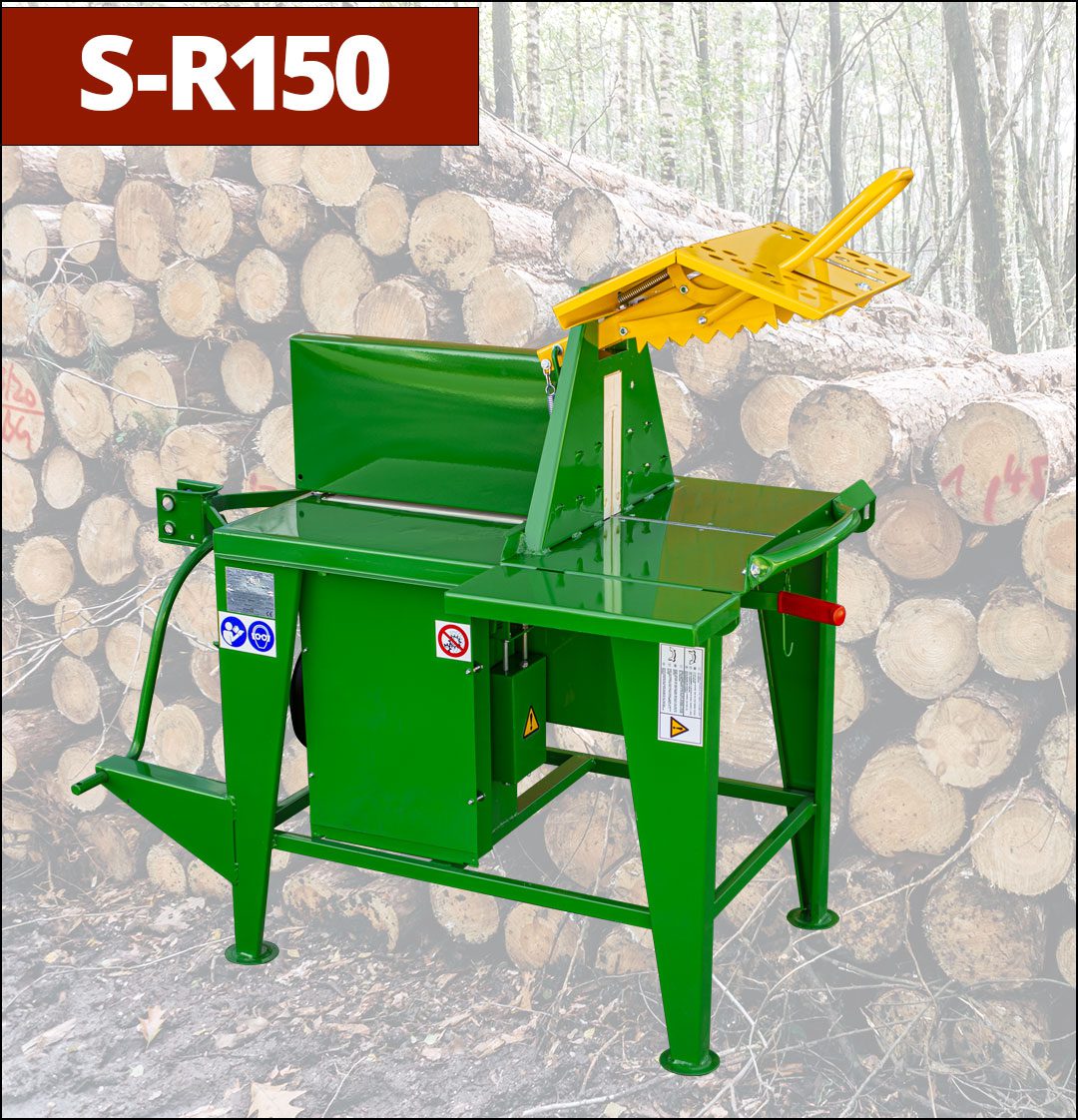

Tractor-mounted log saw S-R150

Electric saw bench

with sliding protection
with sliding protection

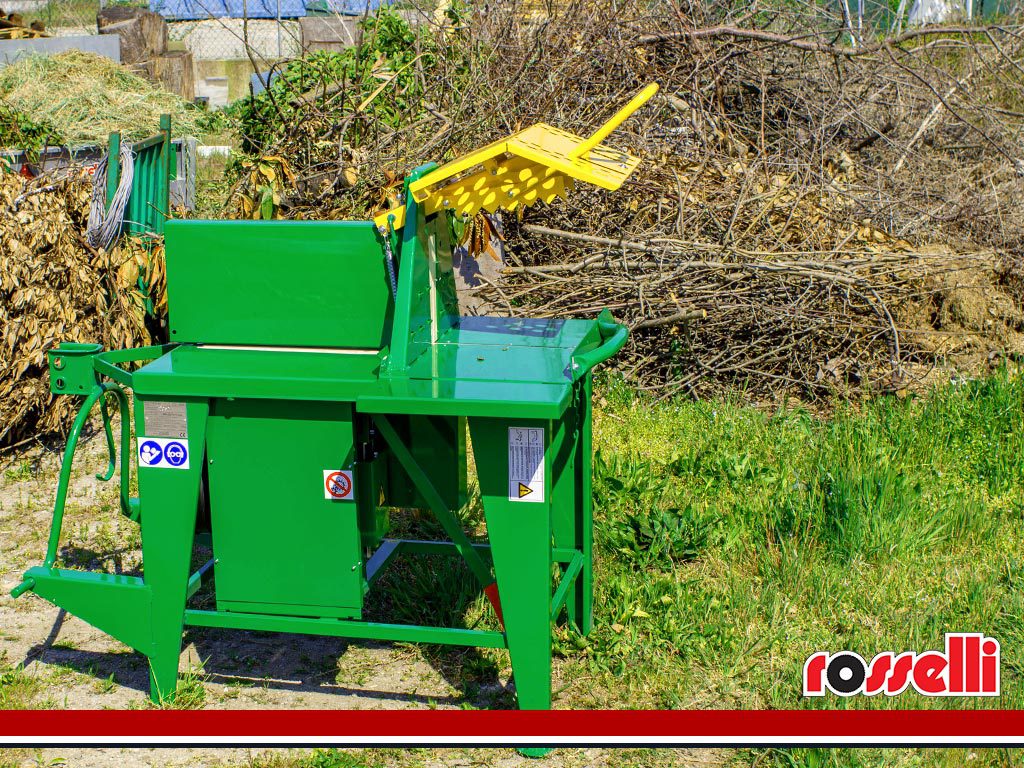

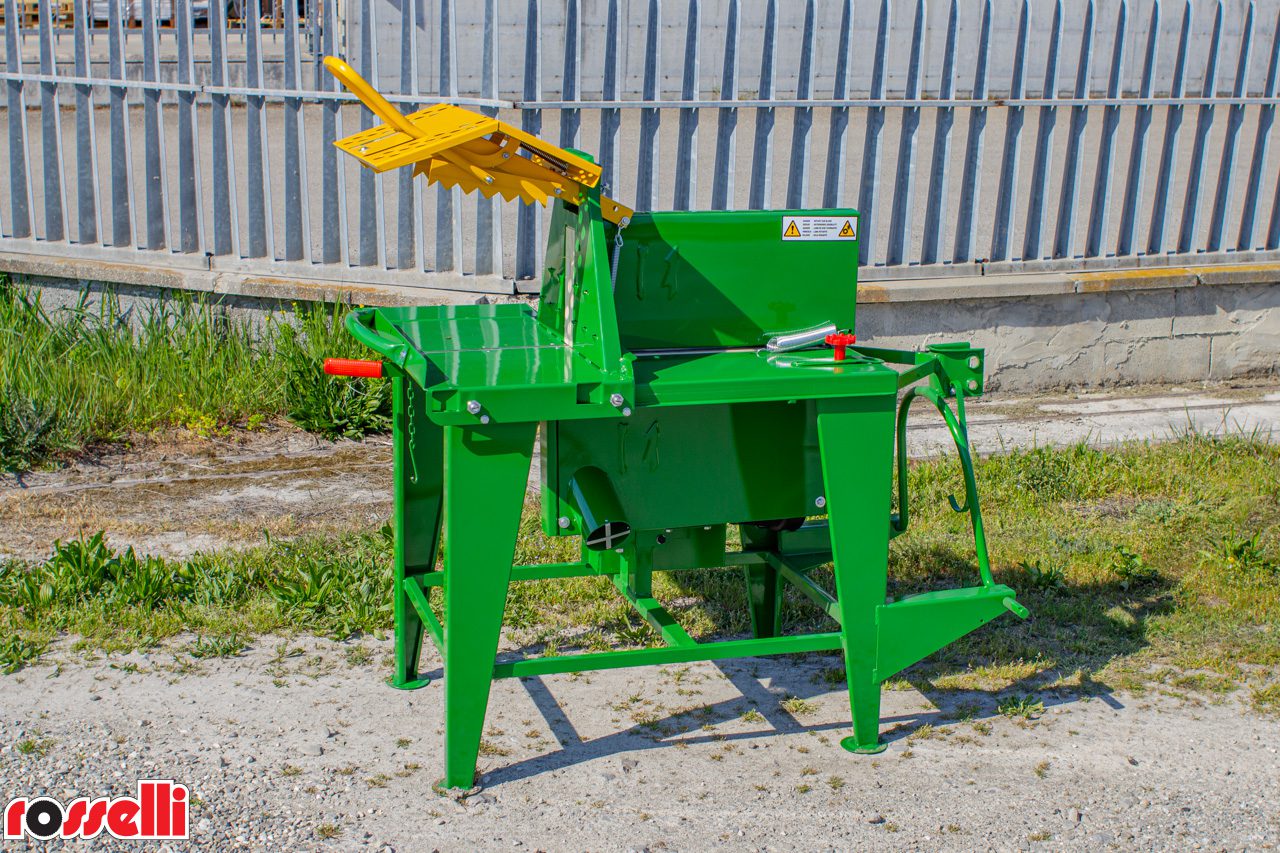

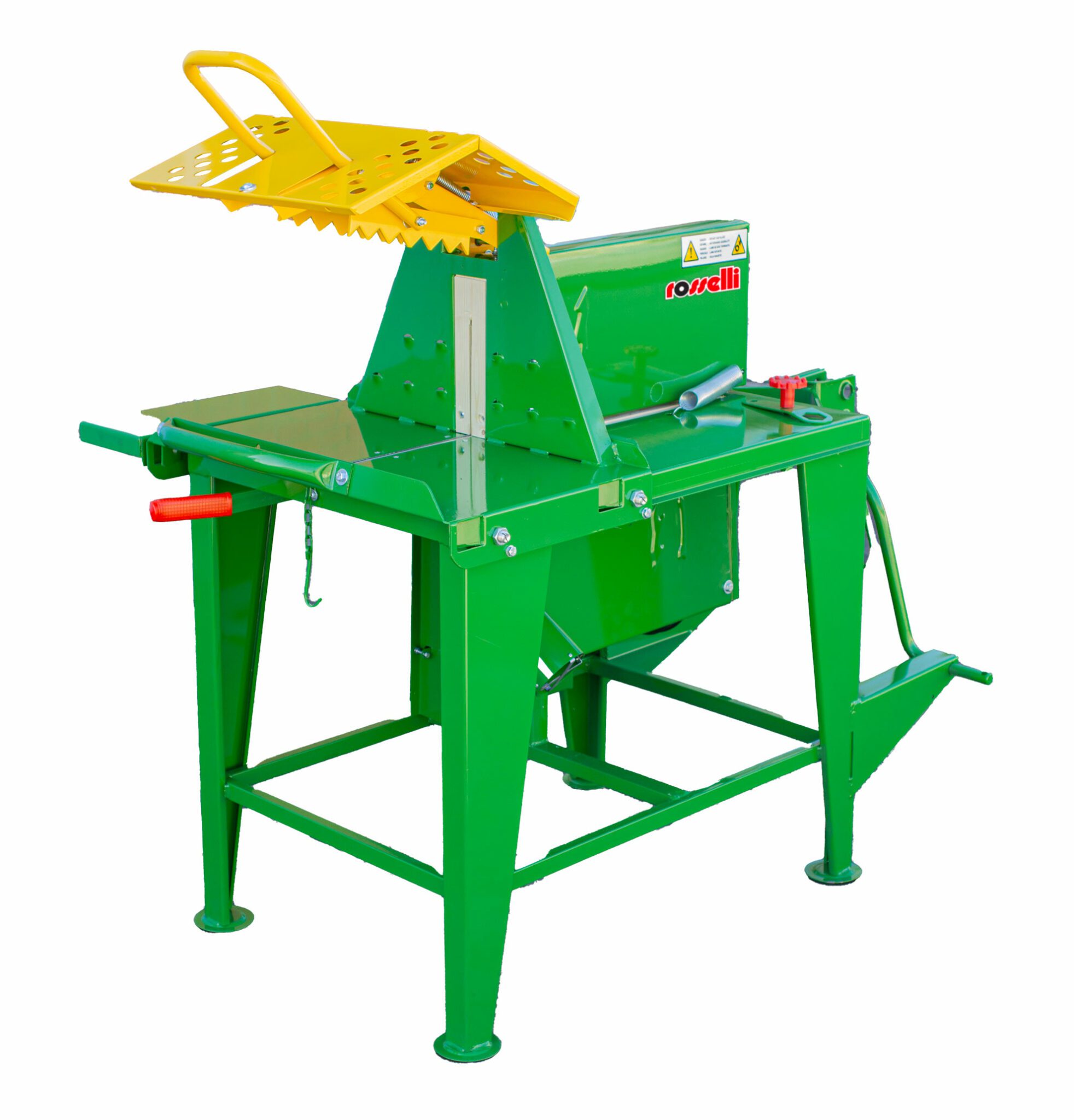

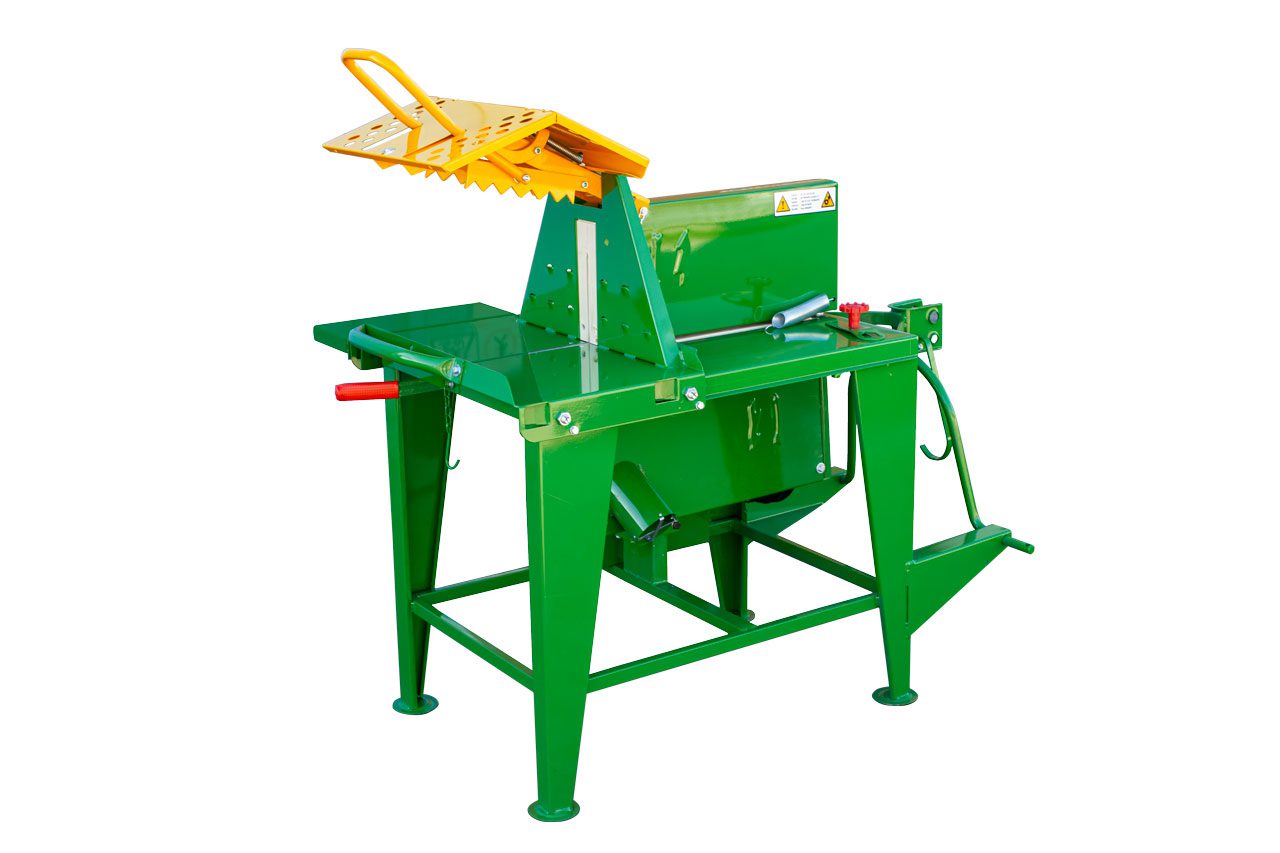

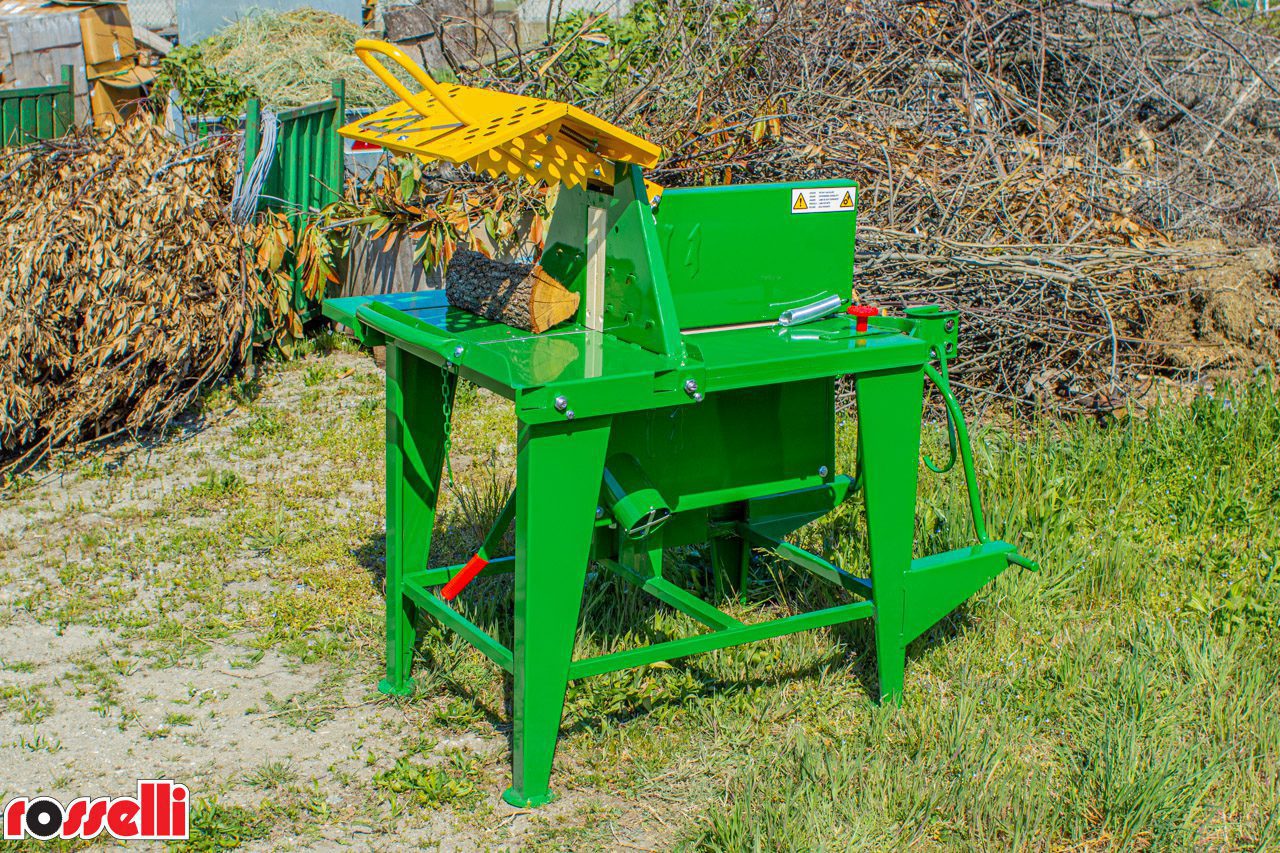

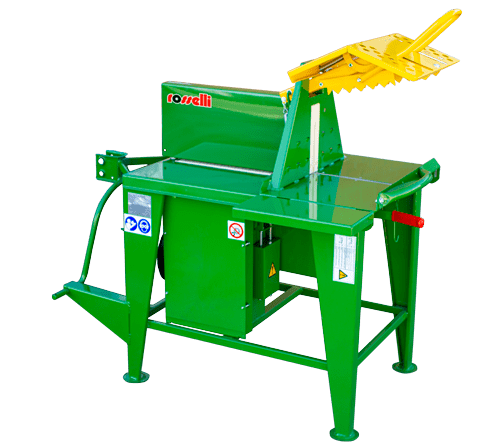

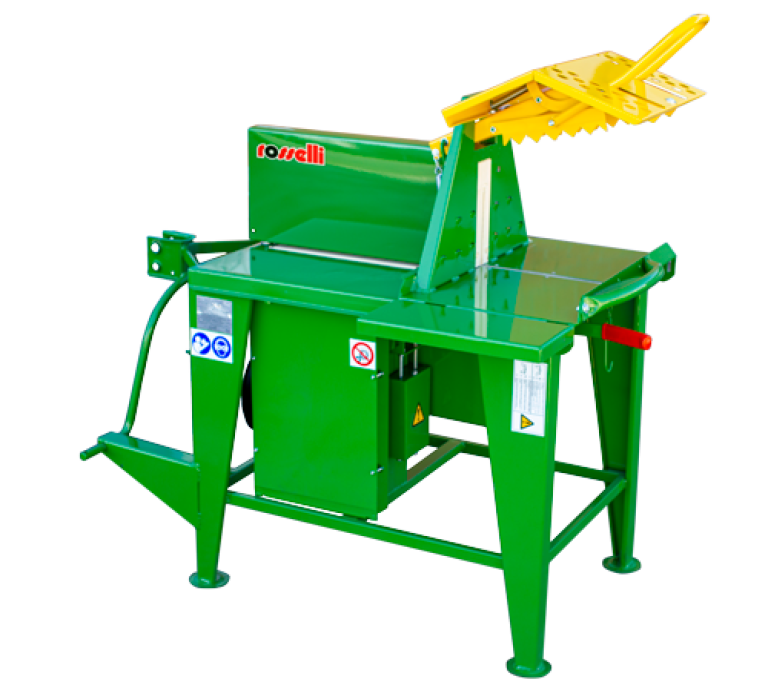

The saw bench S-R150 with sliding protection is a very simple working machine able to satisfy many different needs. One of the most important peculiarity of this saw bench is its tractor joint placed in the back that let free both the circular sides to operate.

The cover blade carter has been developed in order to guarantee a perfect cut wood leftovers discharge. The Rosselli firm has also studied a newly designed wood-block: an ergonomic and functional solution expressly developed to avoid both possible contacts with the disk and the dangerous rotations of the wood during the cutting phases.
Three trapezoidal belts characterized by high performance and durability permit the movement transmission from the driveshaft to the shaft. This machine is completely built in Italy respecting European standards and it gives priority to security.

In particular, this model is very appreciated by Rosselli customers for its operating simplicity. Infact, one of the aim of this saw bench is to make the work a pleasant moment thanks to its simplicity: men, women and also old people would be able to operate without any problem.
The model S-R150, just like all the other Rosselli machines, is characterized by a saw stop security device as required by European standards.

Type

Supply

Type of blade​

CUTTING CAPACITY

S-R150

Half a wooden log

Complete round log

Technical table

Model
Blade Diameter
Work plan
Cutting Depth - Round Logs
Cutting Depth - Half Cut Logs
Power supply
Maximum size
Weight
S-R150
Ø 550 mm
850x360 mm
185 mm
300 mm
PTO Drive Shaft - Side
1040x1000x1230 mm
109 Kg

FEATURES

Are you looking for a table saw with excellent performance? Here it is….​

Click and view the functionality and features

Chiave per svitare la lama circolare

Blade removal wrench

This wrench is used to unscrew and screw in the circular blade for replacement after it has worn out.

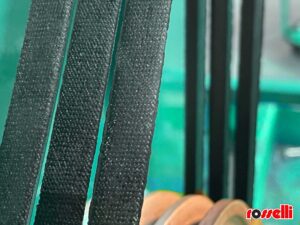

Tre cinghie per banco sega

Drive belts

The saw is equipped with three special belts to transmit uniform motion for wood cutting. These drive belts are made from high-quality materials to ensure long-lasting, optimal performance, guaranteeing the efficient and stable operation of the circular saw.

https://youtu.be/mI_Osoa62So

Emergency brake

In the event of an emergency, we have installed a lever on the circular saw to brake the blade in less than 8 seconds. A friction system stops the motion of the cutting disc.

Bloccaggio del tavolo di scorrimento

Sliding table locking mechanism

With this hook and a cotter pin, you can lock the table to prevent it from sliding when moving the circular saw or to keep it secured when not in use.

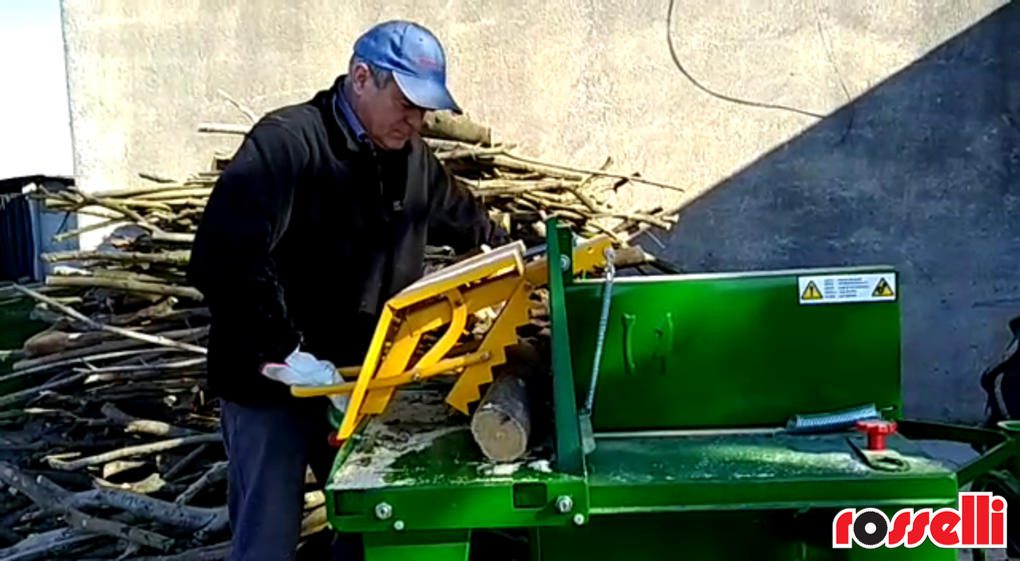

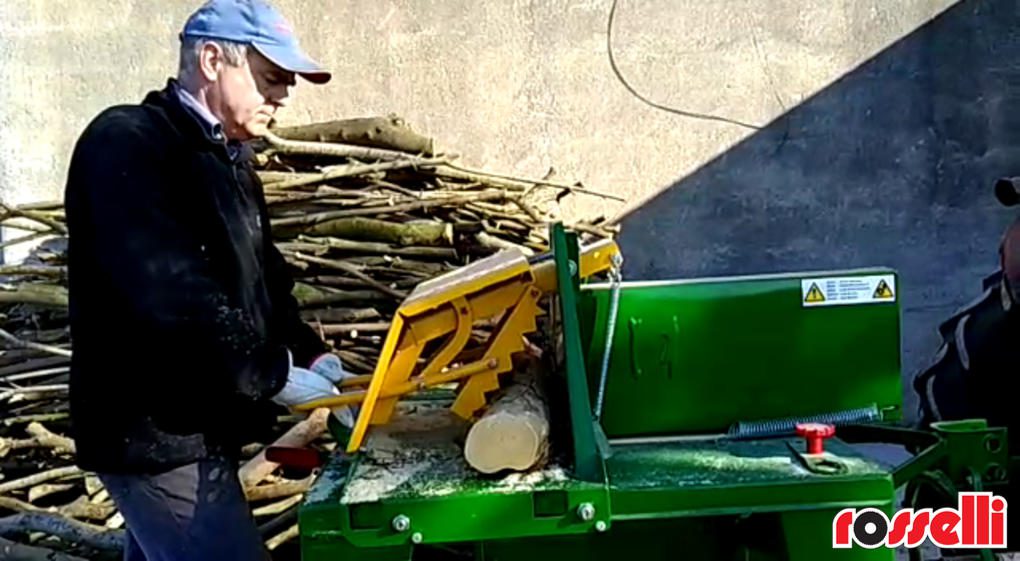

Wood clamping system

With this wood-clamping system, you can saw wood in complete safety, achieving a fast, perpendicular cut.

Perforated guard

We have installed this large guard to make the circular saw even safer, while also ensuring it remains easy and practical to use. The operator can view the wood-sawing action through the holes in the metal plate.

Chip extractor discharge

Special chip outlet designed to eject chips without endangering the hands. The special connection is designed to allow the attachment of a chip extractor.

Spessore della lamiera del banco sega
Sheet metal thickness

For a sturdy and stable structure we use sheet metal of adequate thickness. We have done tests and a sealing study to make the saw safer and more durable over time.

Apposito gancio per appoggiare il cardano in fase di fermo per sega
Dedicated hook for resting the PTO shaft

The hook located above the circular saw's three-point hitch serves to support the PTO shaft when the saw is stationary; this ensures the shaft never rests on the ground.

OPTIONAL

PTO shaft - Rosselli Snc

PTO SHAFT

Transmission with cardan shaft



Widia to circular saw - Rosselli Snc

WIDIA BLADE

More performing blade for a better cut

WHEELS

For transporting on flat surfaces

Pneumatic wheels for circular saw bench

PNEUMATIC WHEELS

For transporting the saw over rough terrain

MACHINERY DIRECTIVE 2006/42/EC

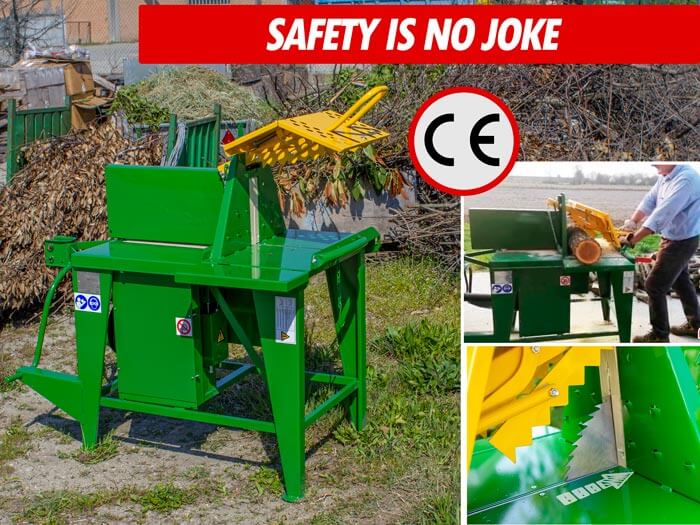

The Rosselli company has always paid great attention to security issues, all our machines fully respect the directives imposed by the European Community. For this reason every Saw Bench follows the Machinery Directive 2006/42/EC: Rosselli machines are equipped with all devices that allow the operator to work in a condition of complete security

BRAKING SYSTEM - EMERGENCY

Following the MACHINERY DIRECTIVE 2006/42/EC, this machine is equipped with a stop security device we call “DISINNESTO”. This is composed of an emergency lever that the operator can use in dangerous situations: the blade will come to rest within 10 seconds although the driveshaft will continue to turn.

LOCK DEVICE

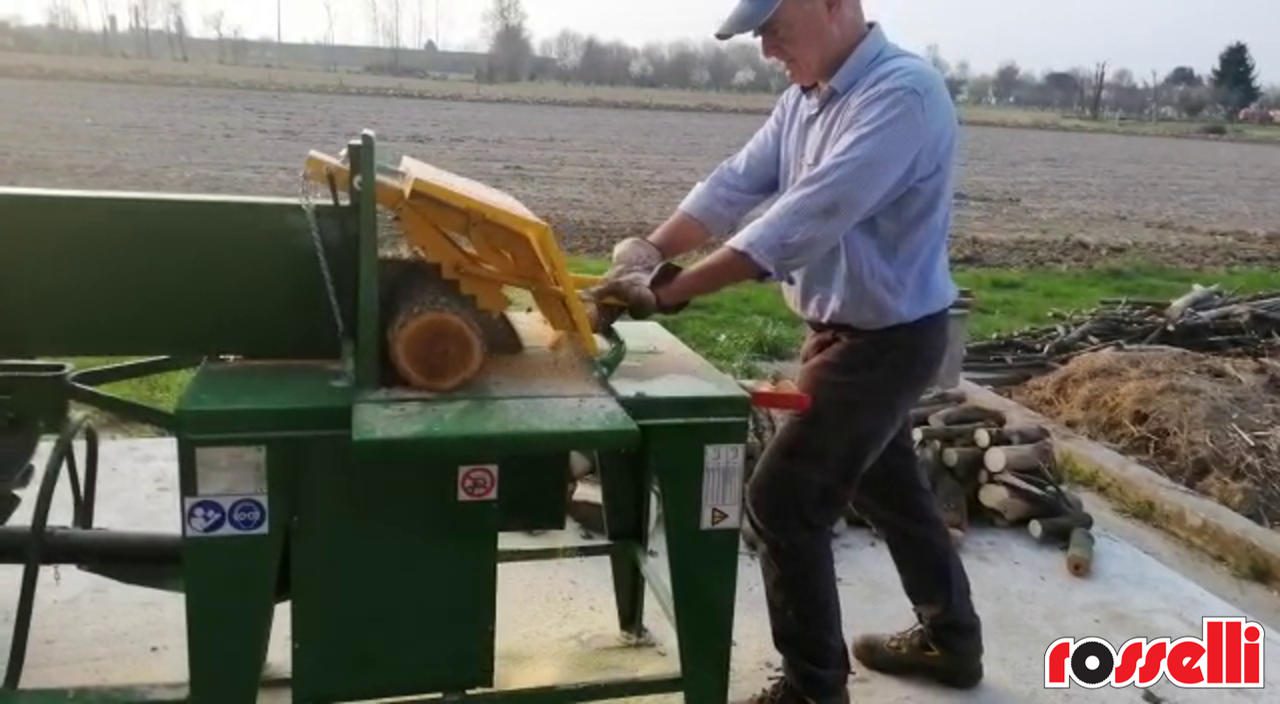

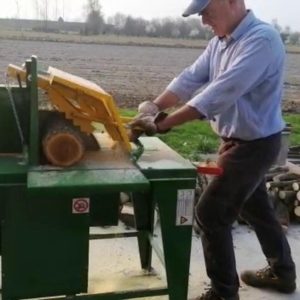

This device stops the log and guarantees a sharp and defined cut; both hands are needed to operate the machine in order to avoid any contact with the blade.

"WE CARE ABOUT THE SAFETY OF OUR PRODUCTS: SAFETY MATTERS MOST!"

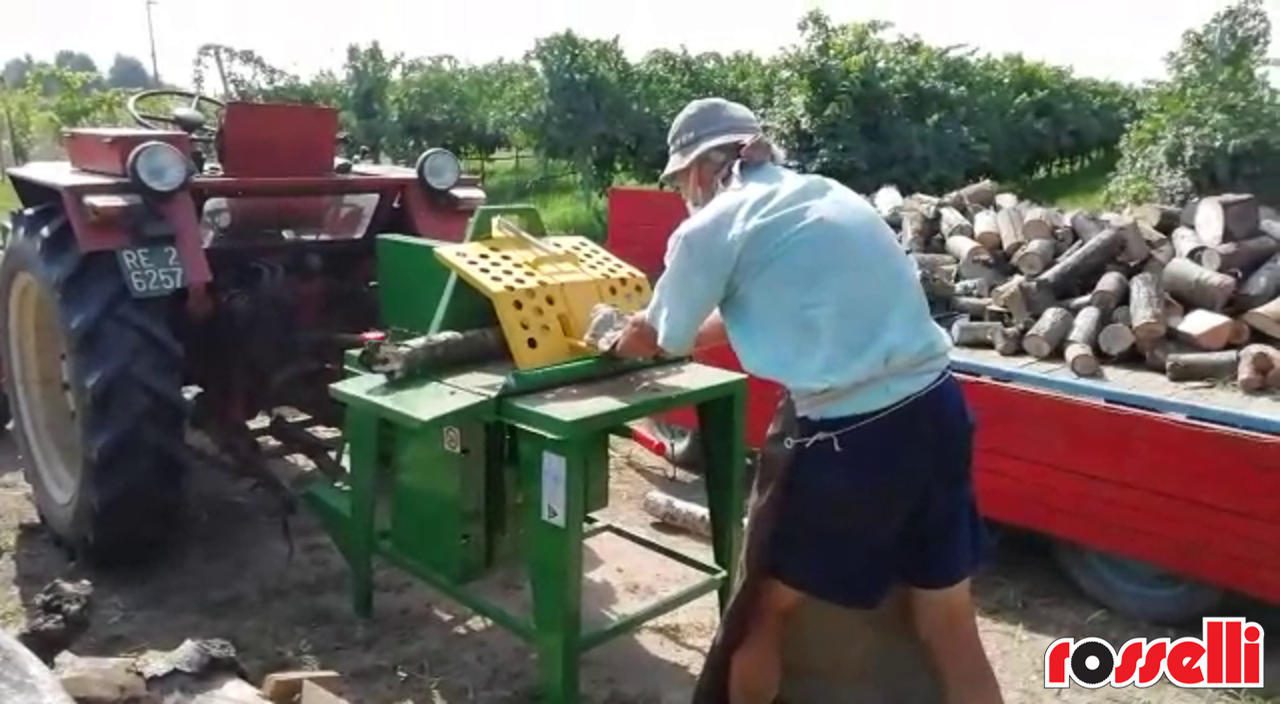

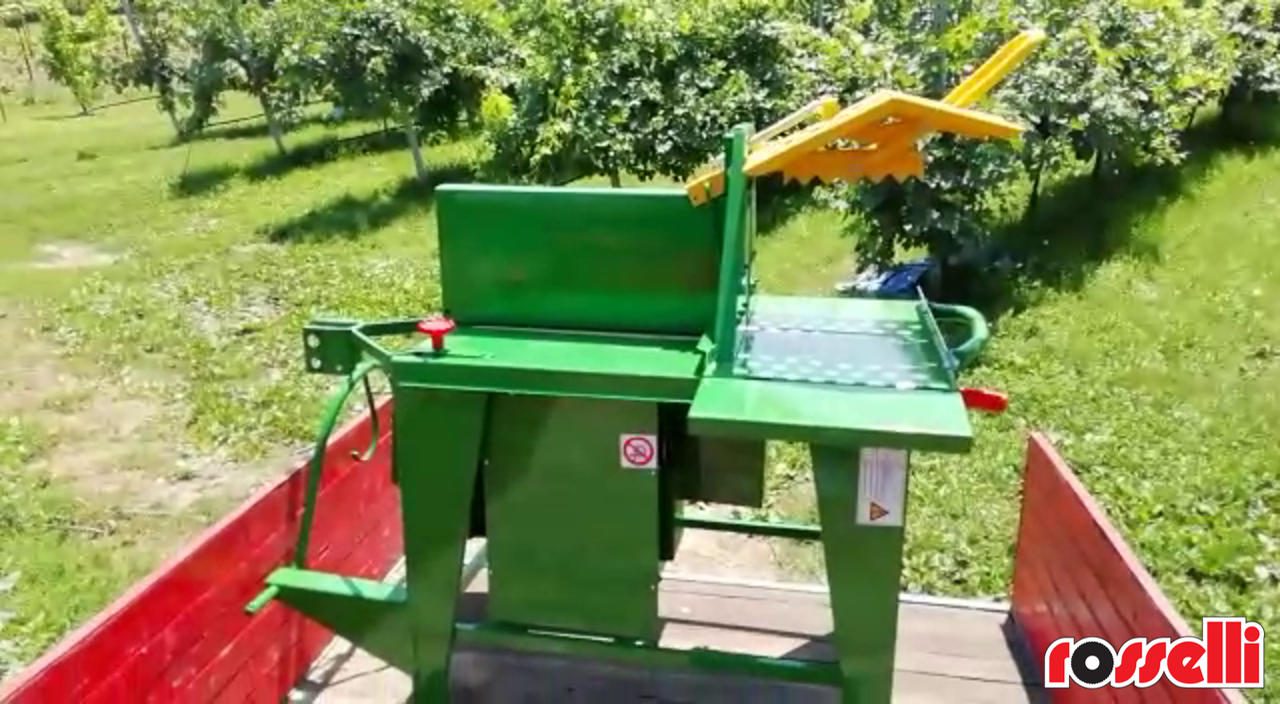

Fast and quick saw bench for tractor

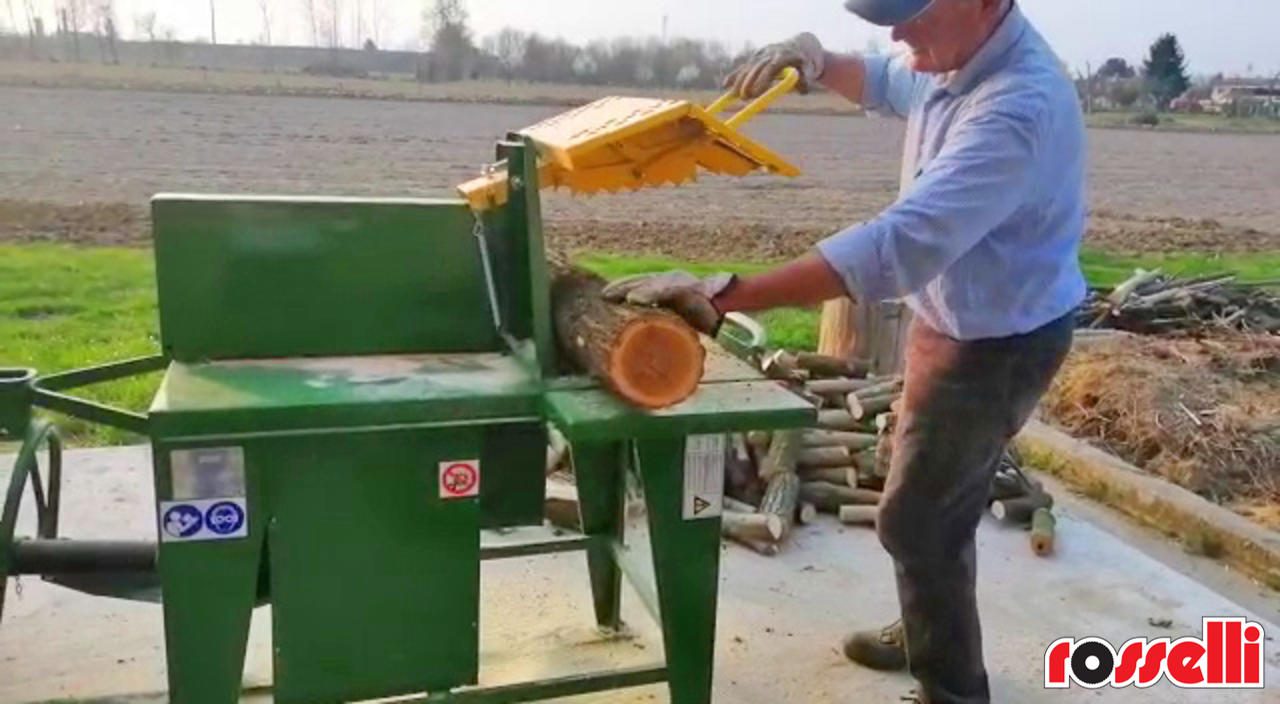

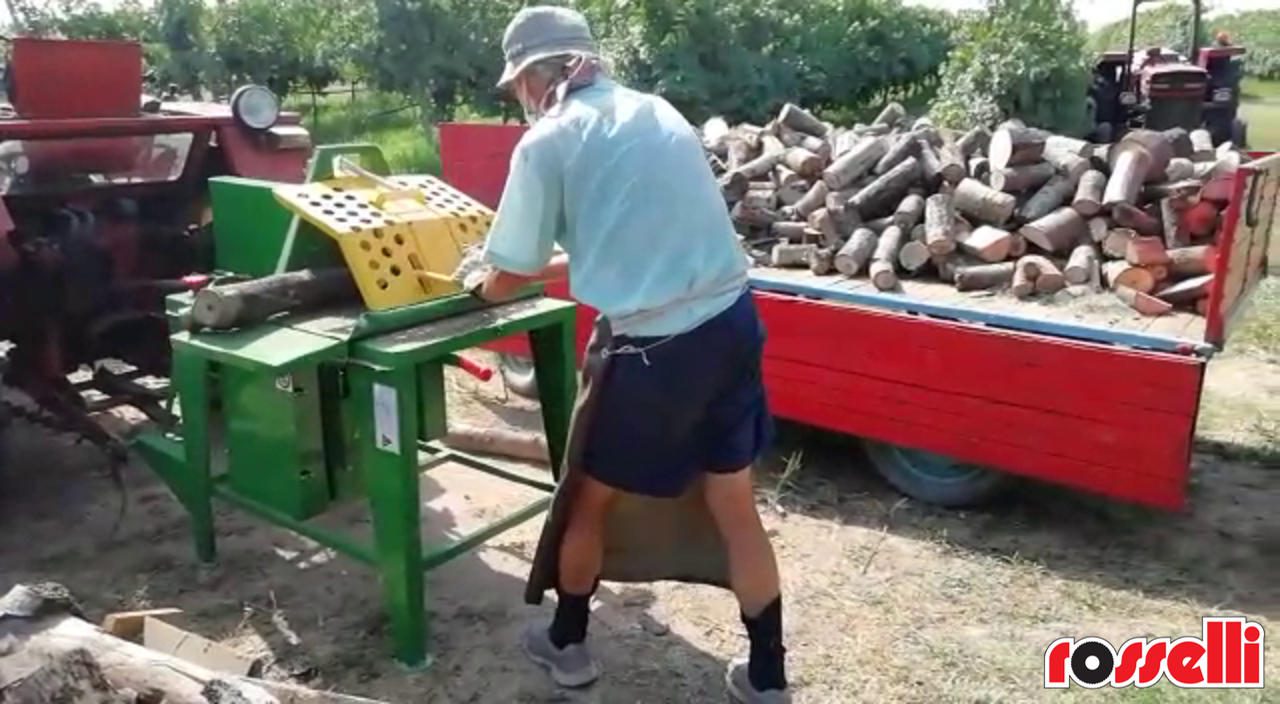

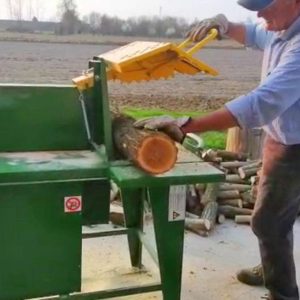

"Get the Job Done Right with Circular Saw: Sawing Firewood in a Snap!"

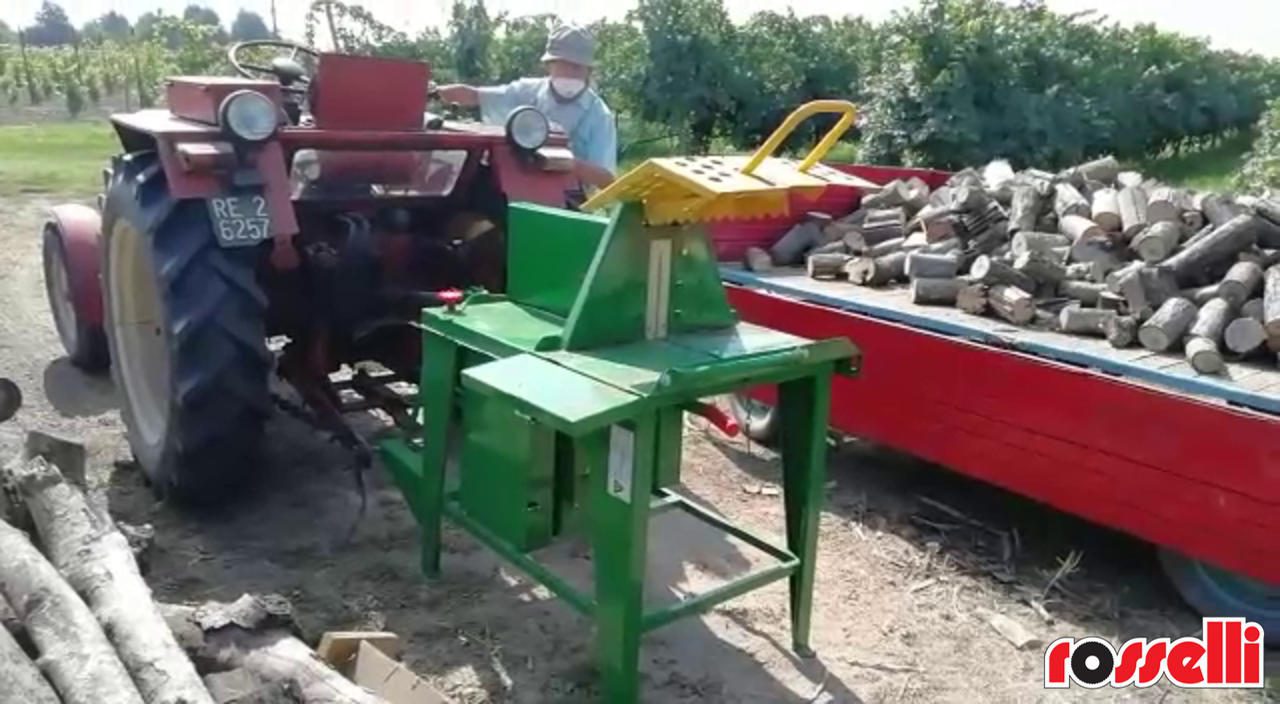

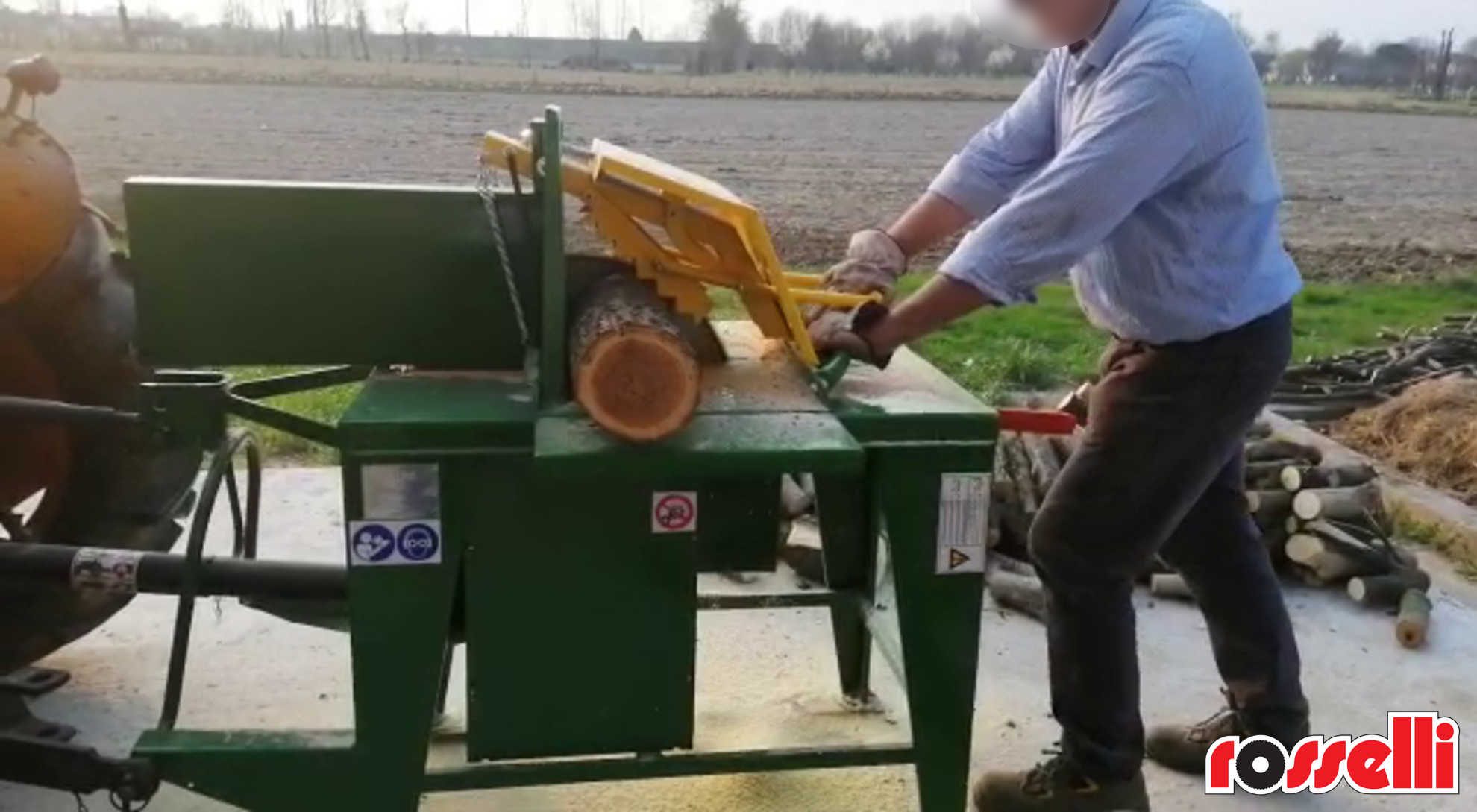

Bench saw for sawing branches connected to the third tractor point

Why to buy a Rosselli’s saw bench model S-R150?

RELIABILITY
Thanks to its robot-welded frame, the R-400 PTO circular saw guarantees a high level of sturdiness and top-level performance even after several years of use. Thanks to the special painting and metal treatment process adopted by Rosselli, the machine’s metal parts are protected long-term against corrosion and aggressive agents.
WARRANTY
The R-400 tractor PTO circular saw bench comes with a 2-year warranty. Spare parts can be easily sourced even long after the purchase date. Rosselli provides technical assistance to both dealers and private customers.

USE

The model R-400 PTO circular saw is highly appreciated by the company’s customers for its extreme ease of operation. A few simple steps allow for a clean and fast cut without applying excessive effort. This enables all users to cut firewood in complete autonomy.

SAFETY
The model R-400 sliding table saw is built according to the regulations established by the CE/662 machinery directive, allowing the user to perform cutting operations without any danger. For years, the Rosselli company has been committed to providing its customers with products that, despite their affordability, guarantee the highest levels of safety and reliability.

IMAGES

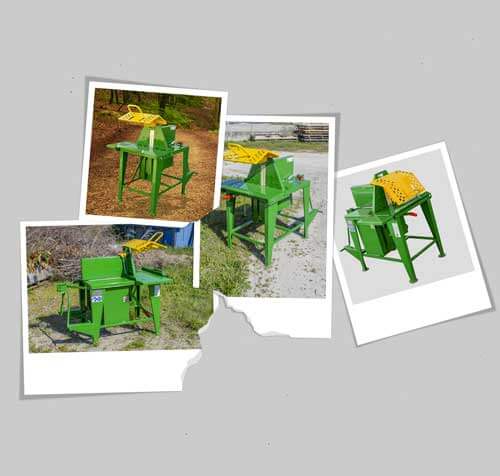

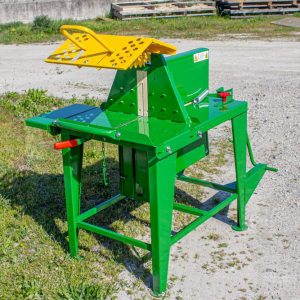

View the images of our cardan saw bench “S-R150”

DOWNLOAD PDF

Technical sheet of the S-R150 saw bench

DOWNLOAD THE PDF DATA SHEET

VIEW THE TECHNICAL SHEET ON THE MONITOR

This is an alternative to the electric circular saw
