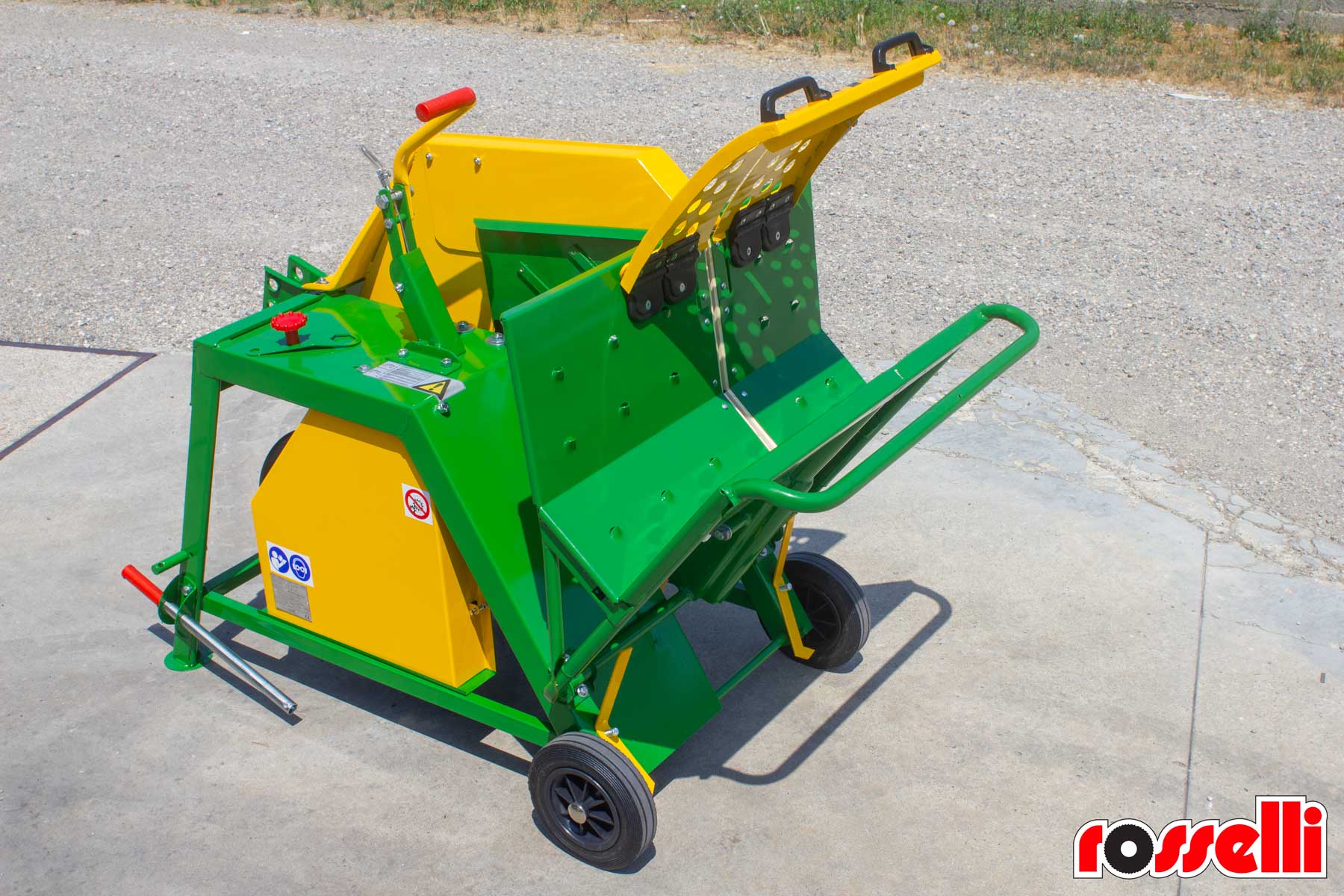

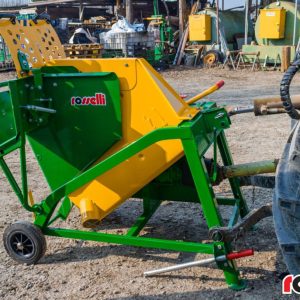

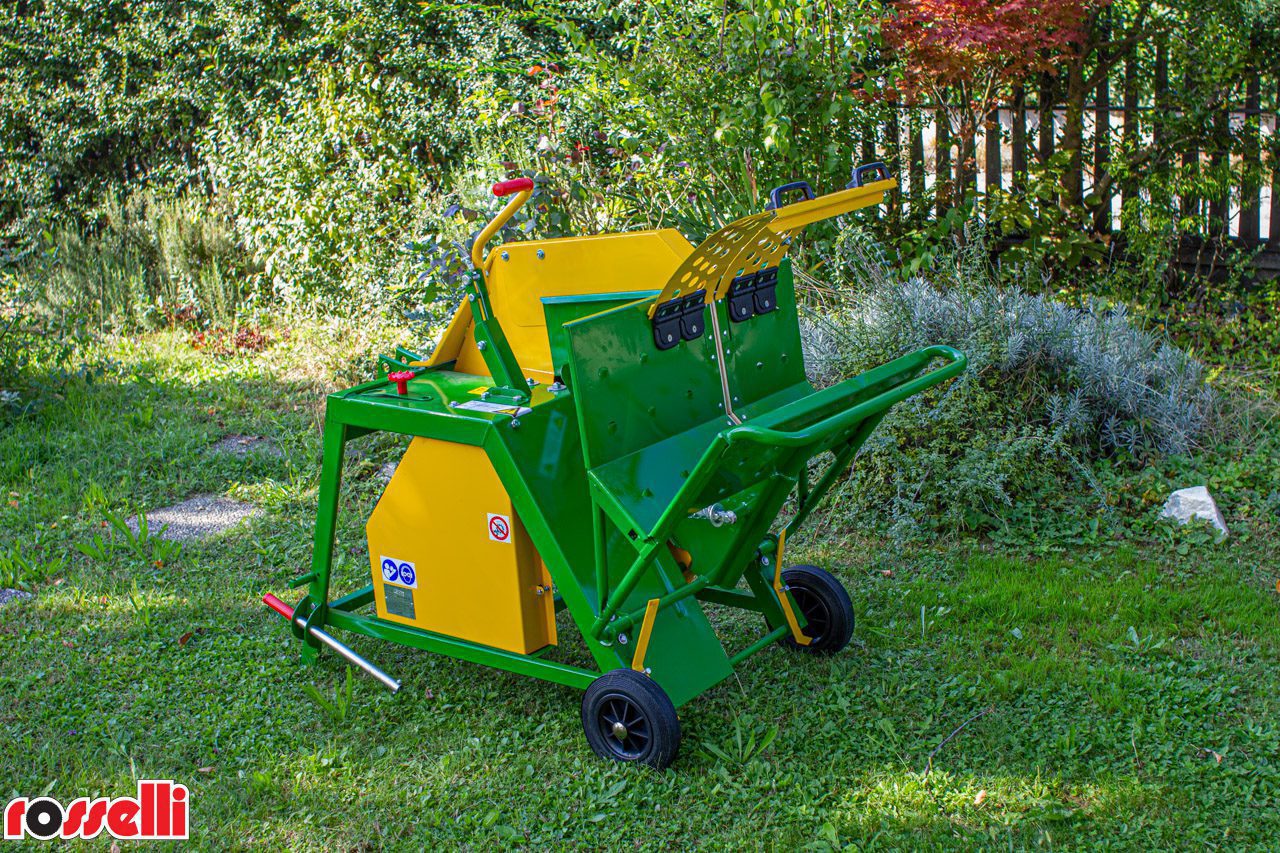

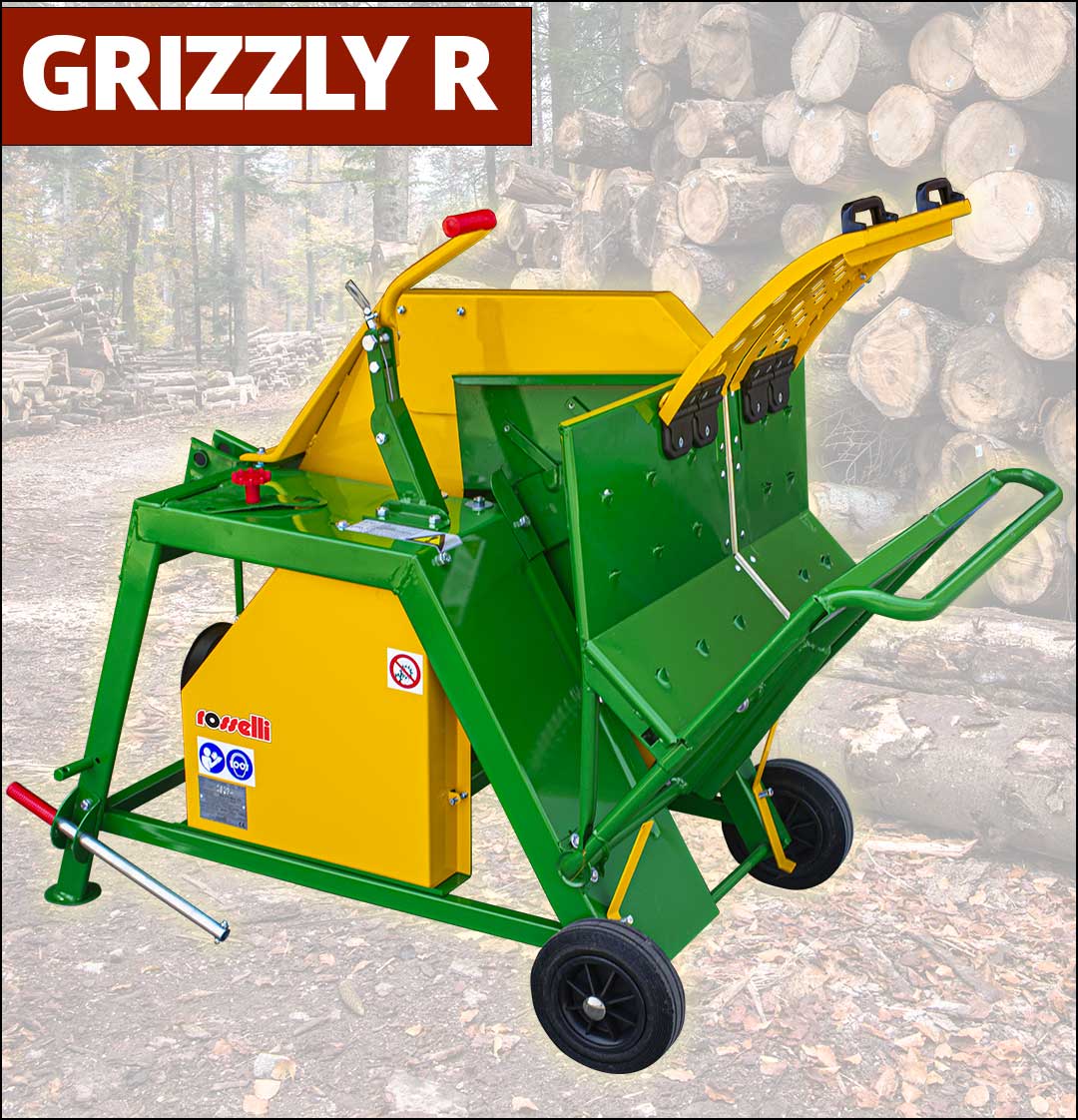

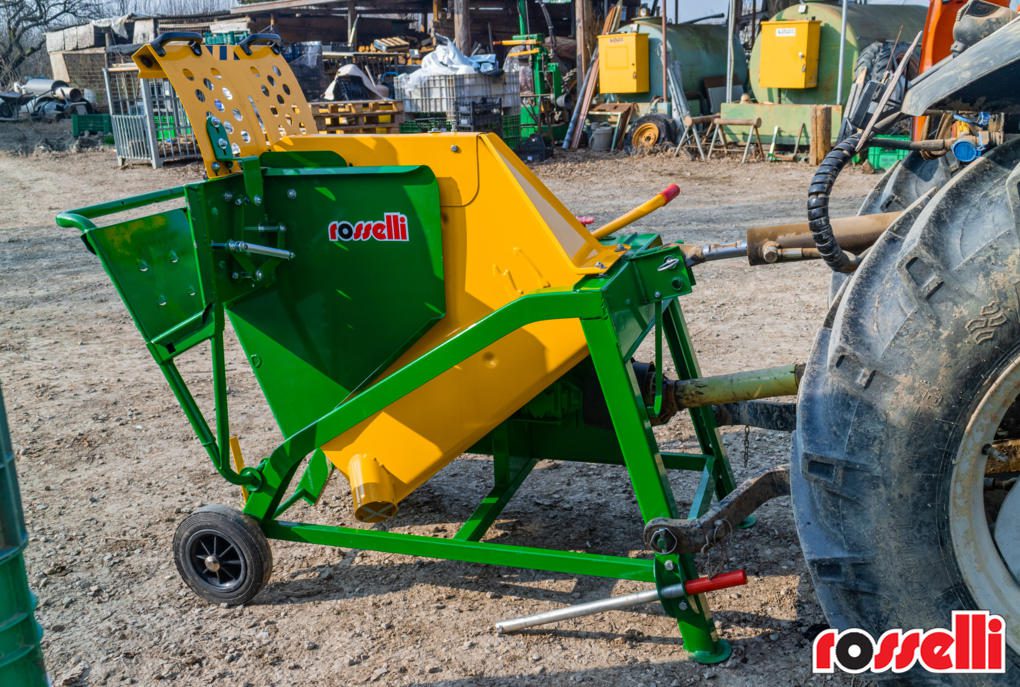

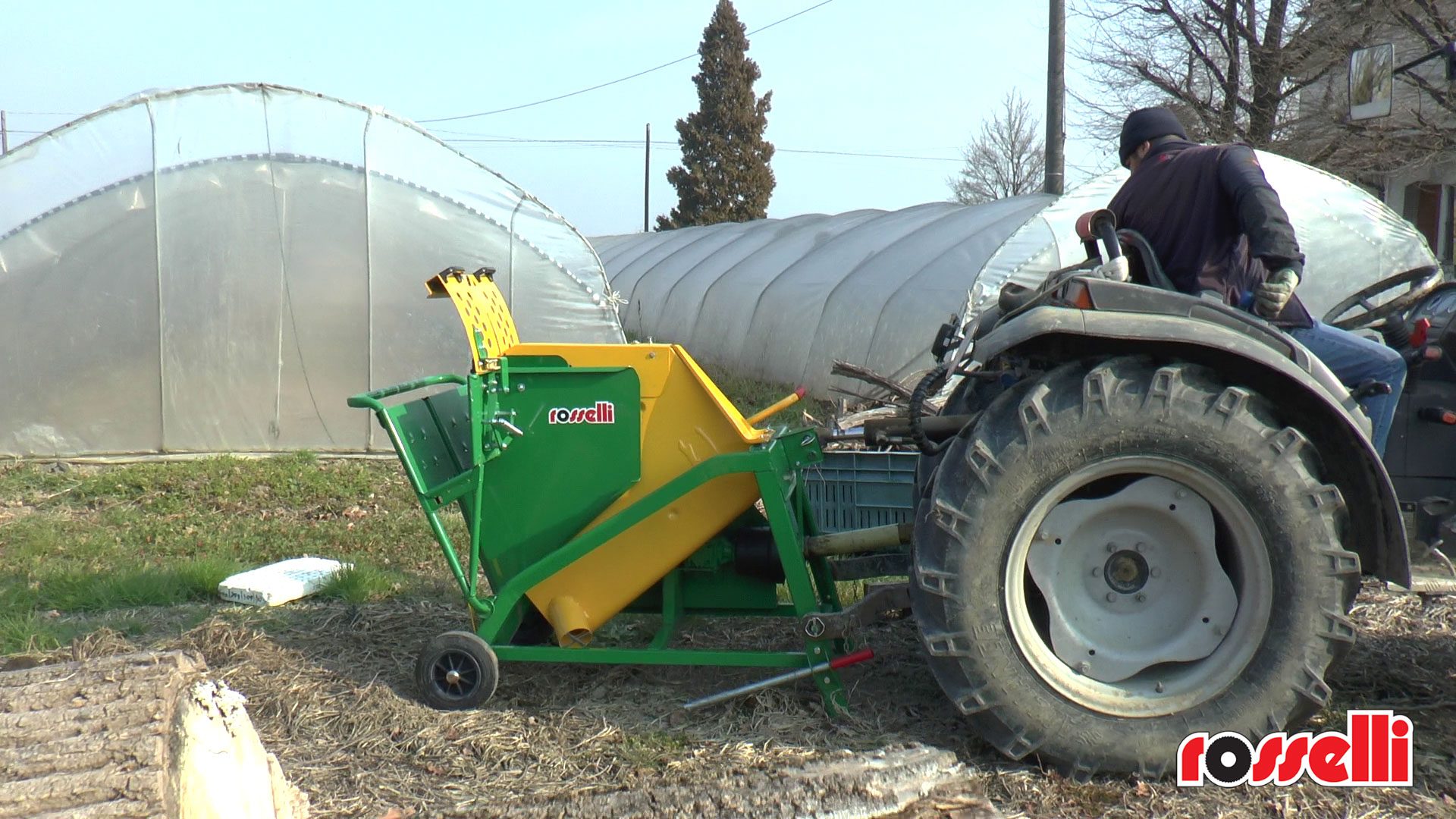

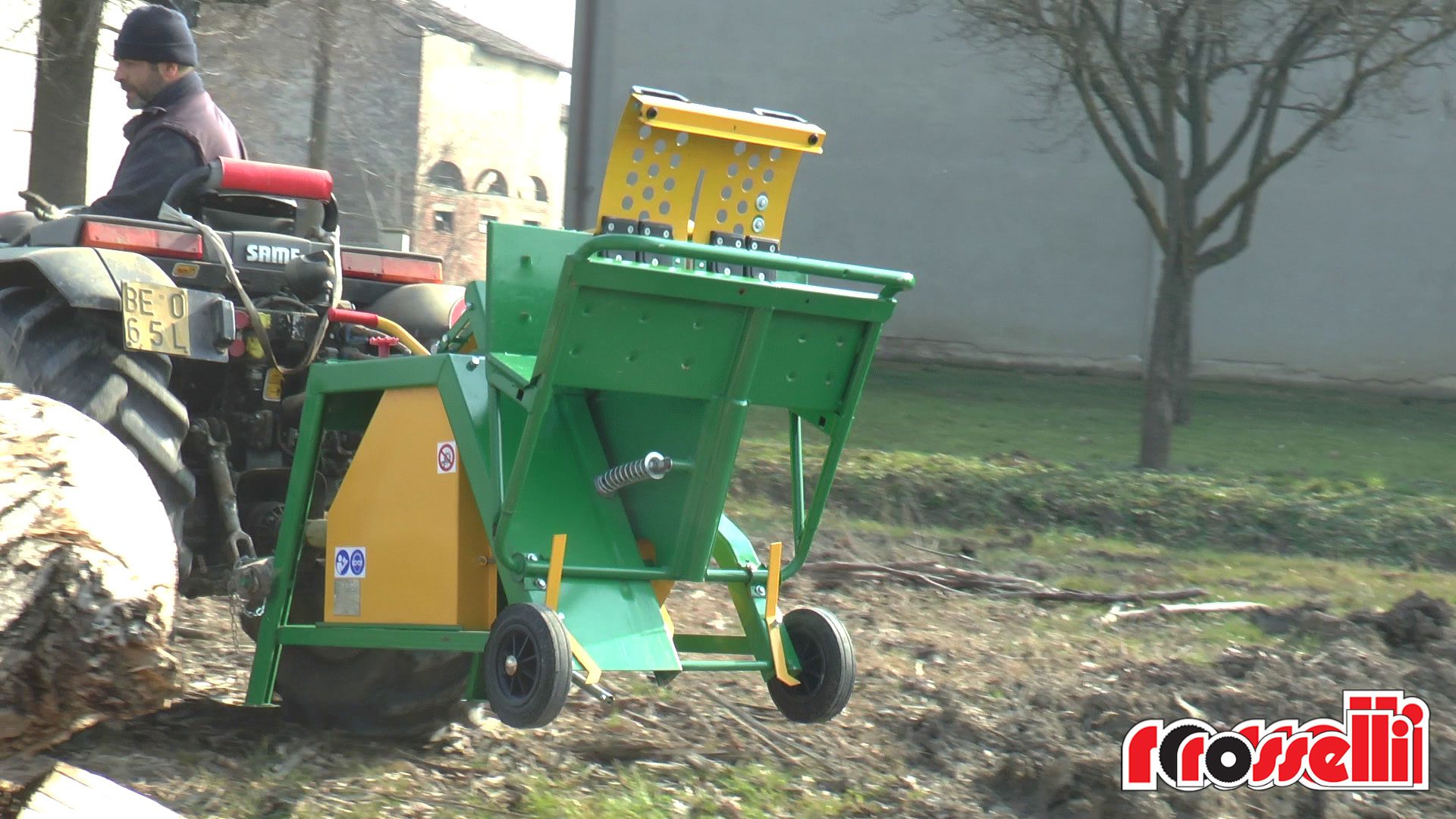

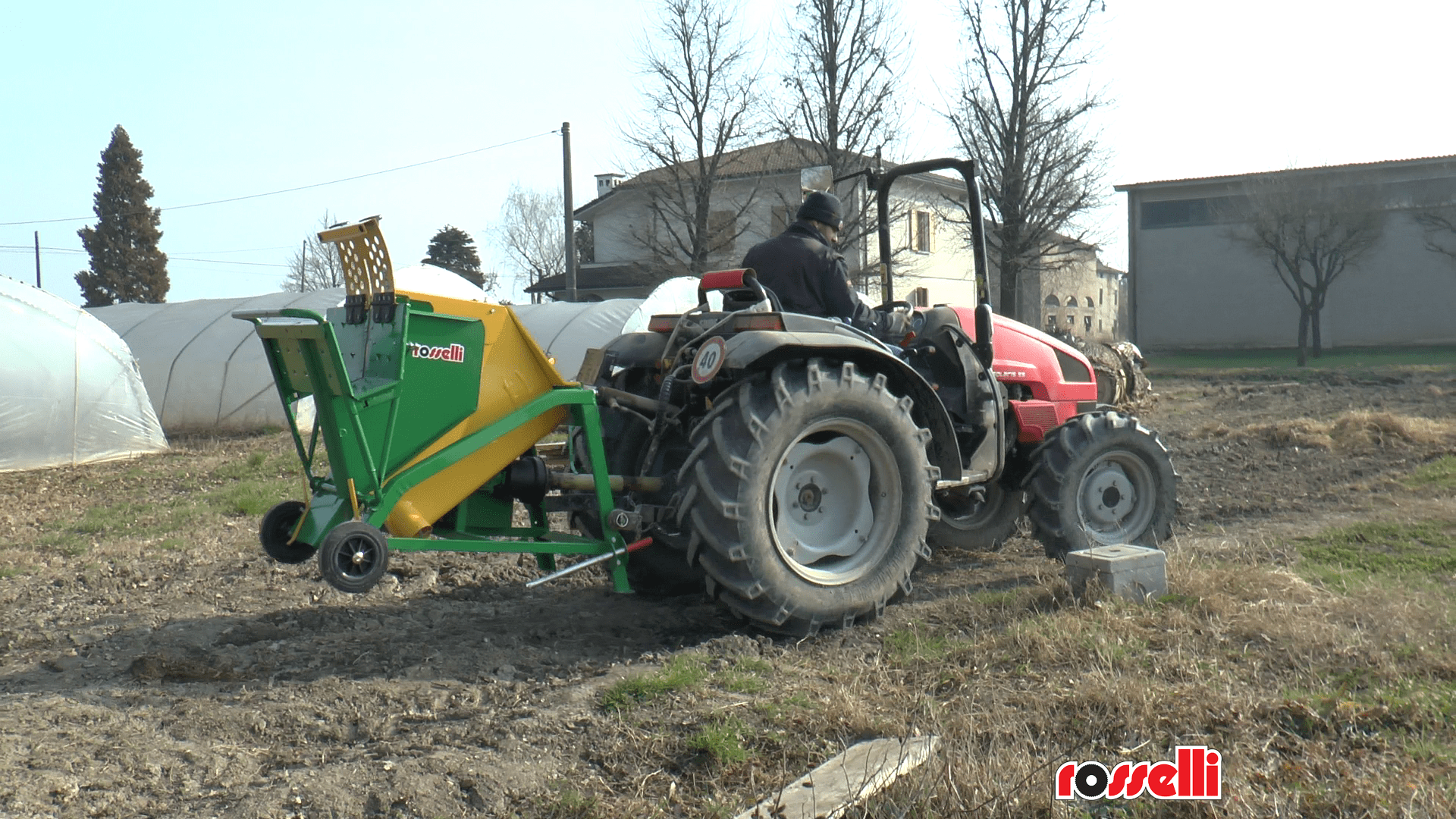

CIRCULAR SAW WITH CARDAN SHAFTWITH SWINGING TABLE

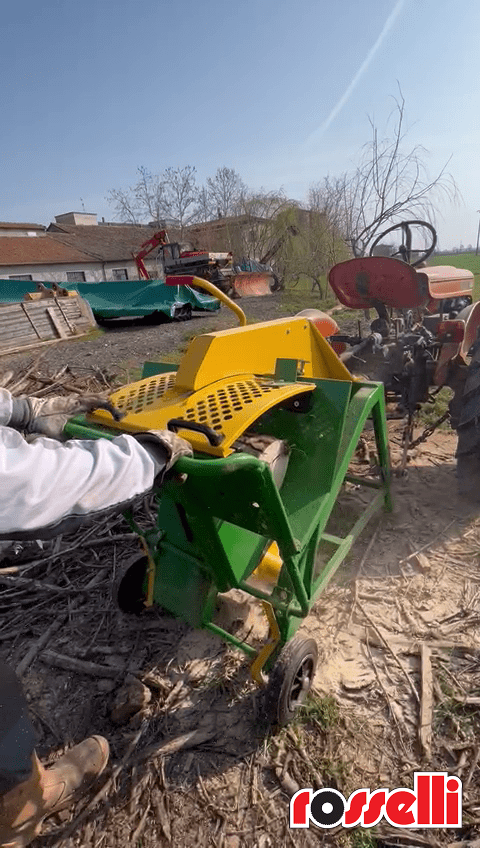

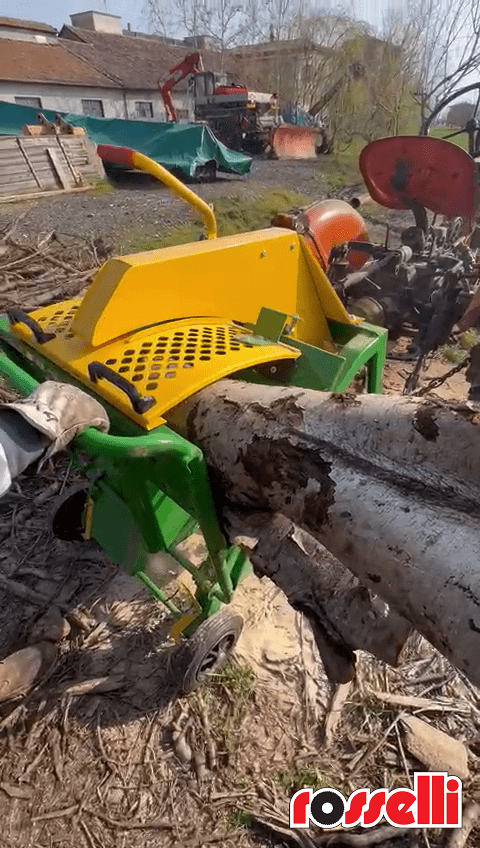

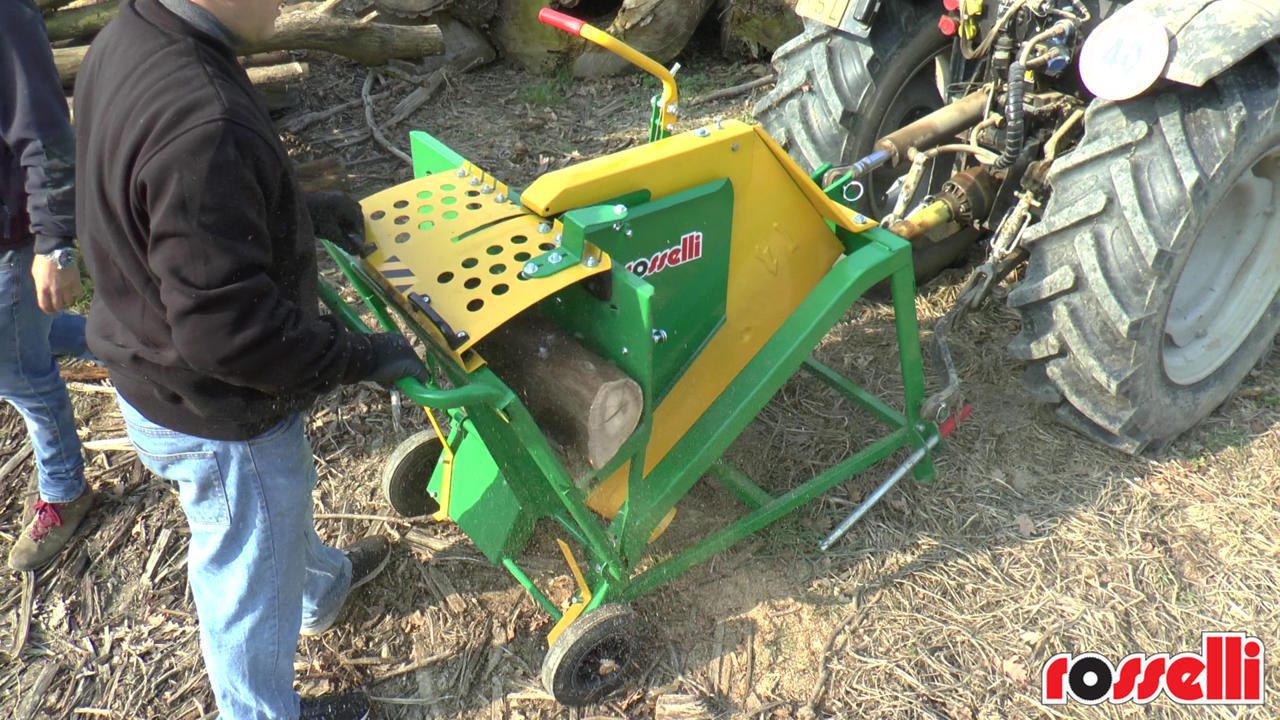

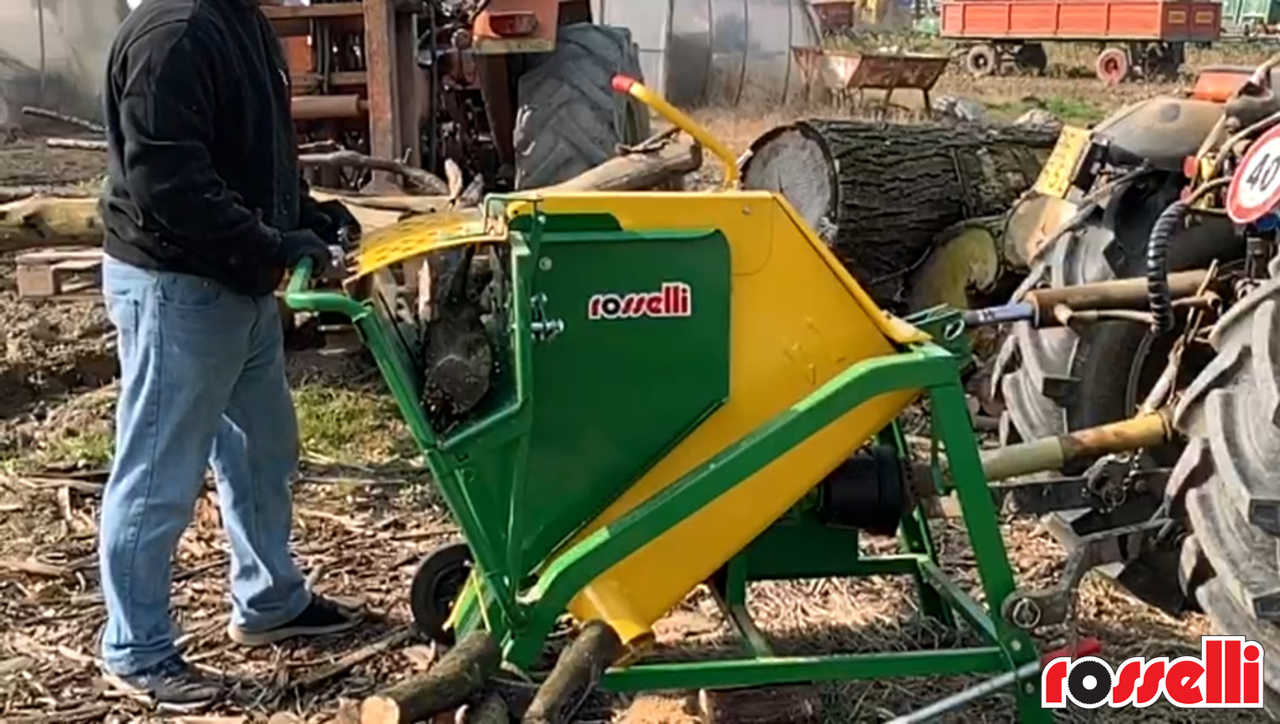

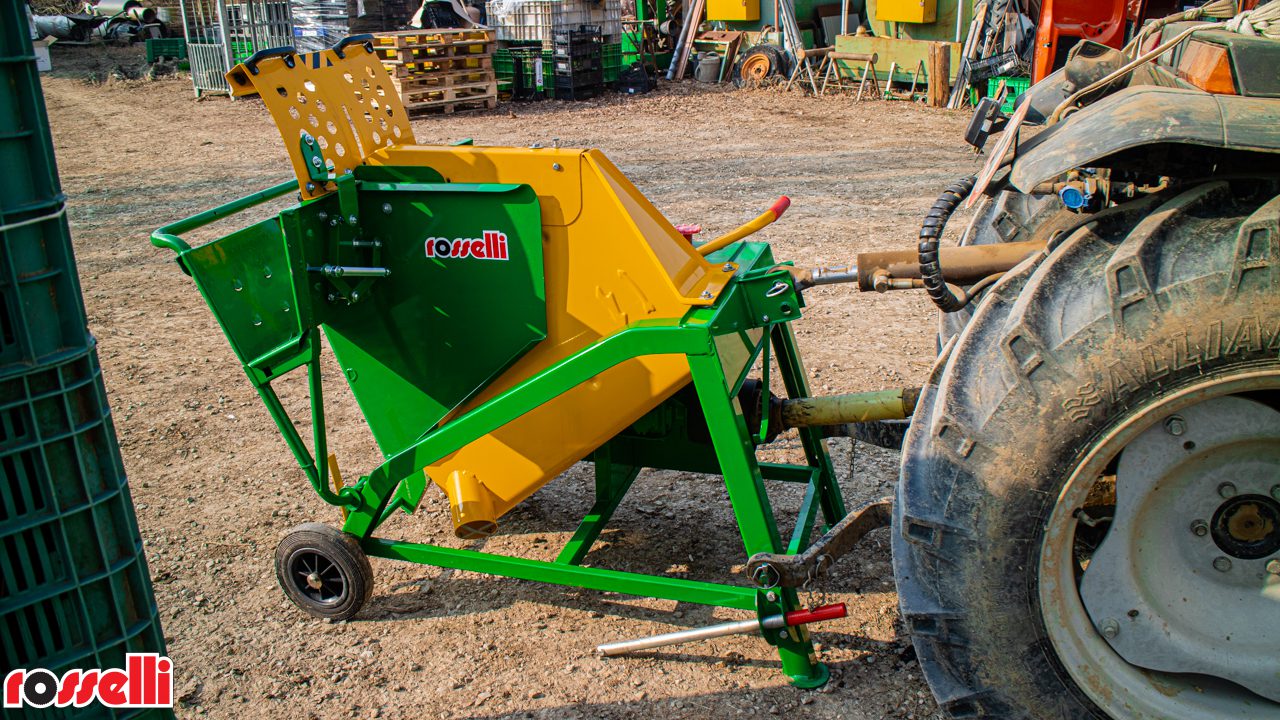

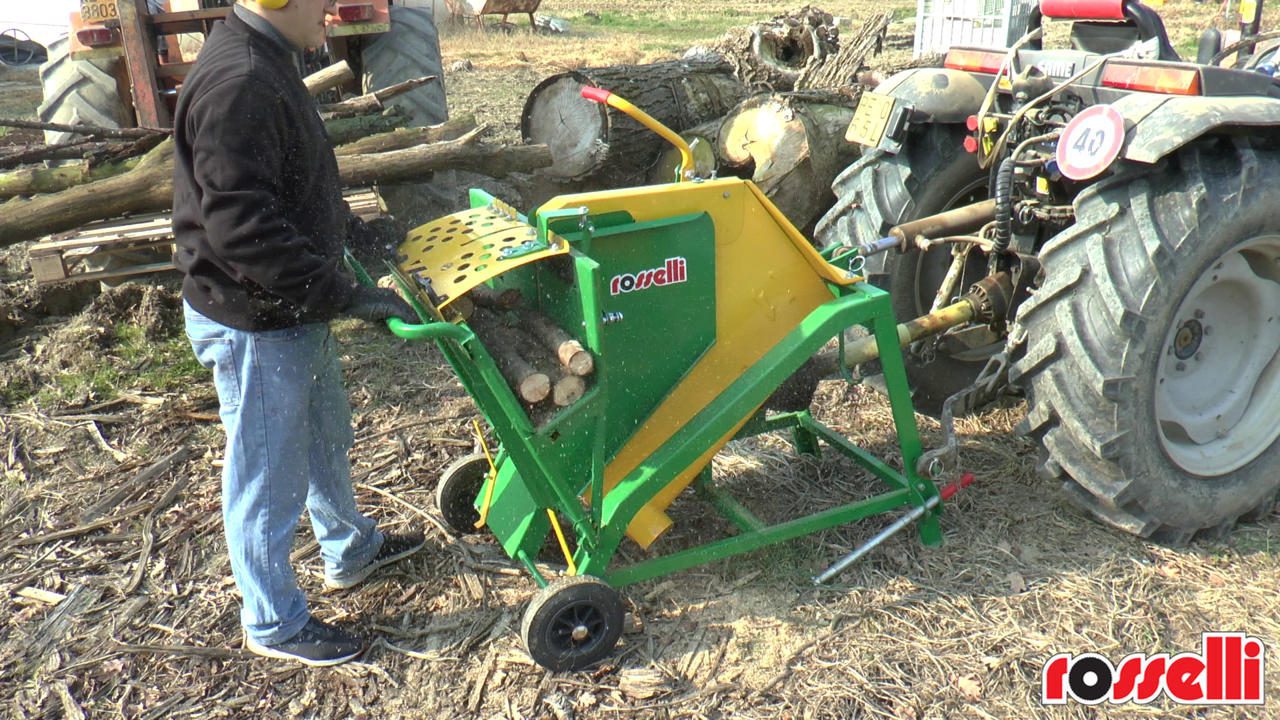

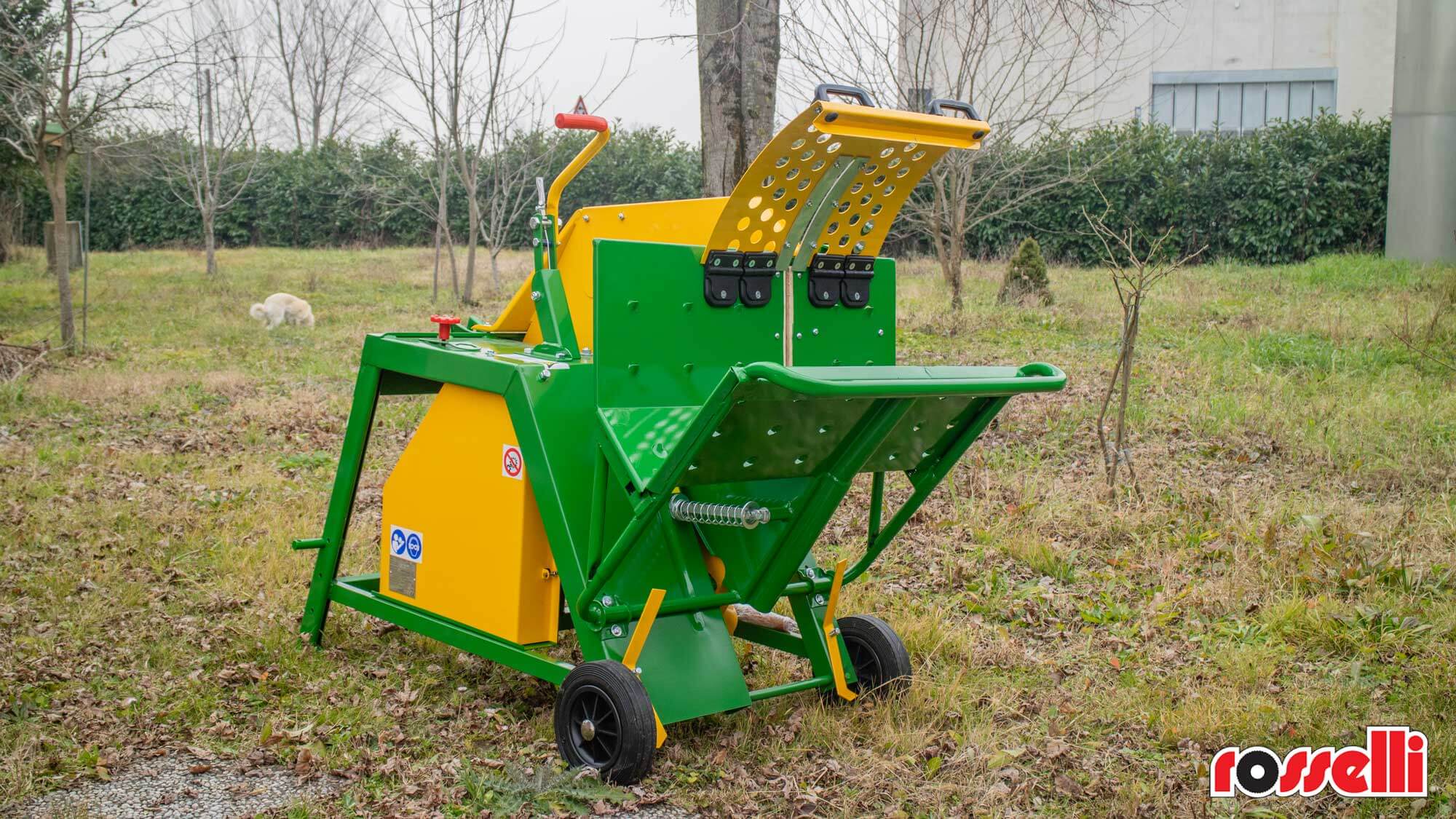

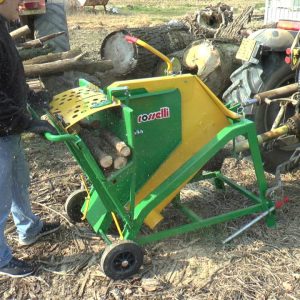

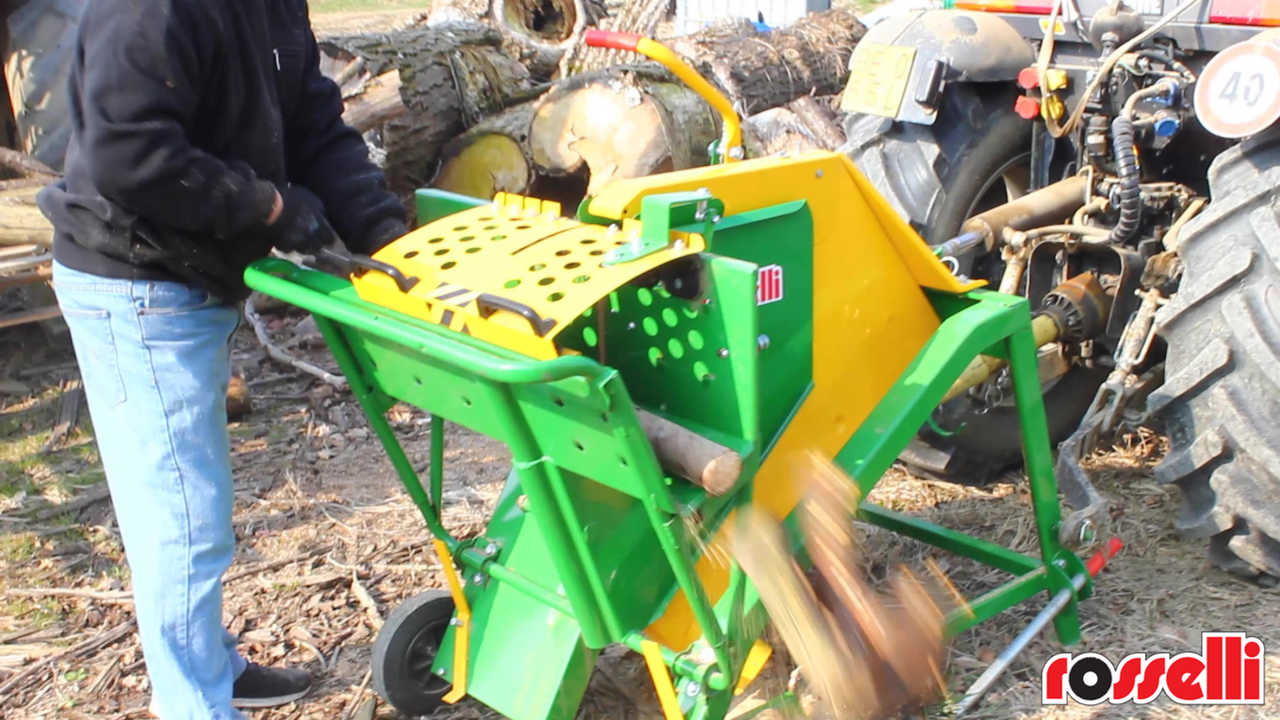

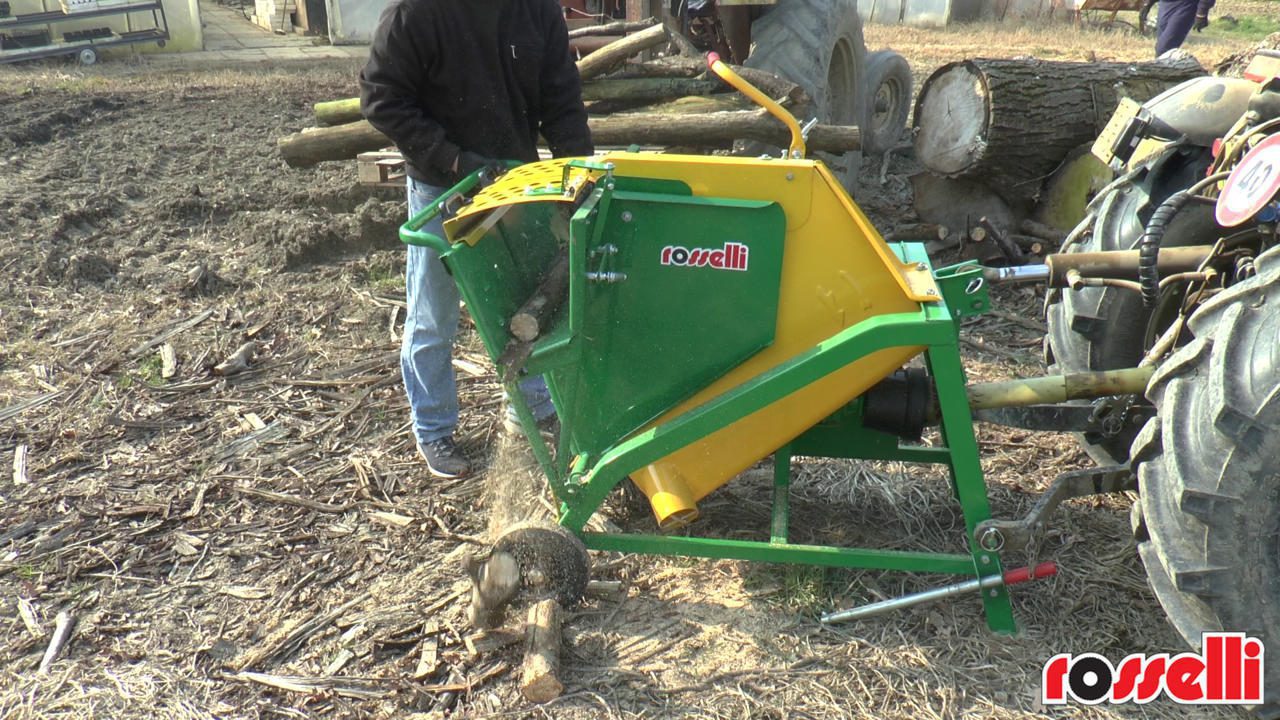

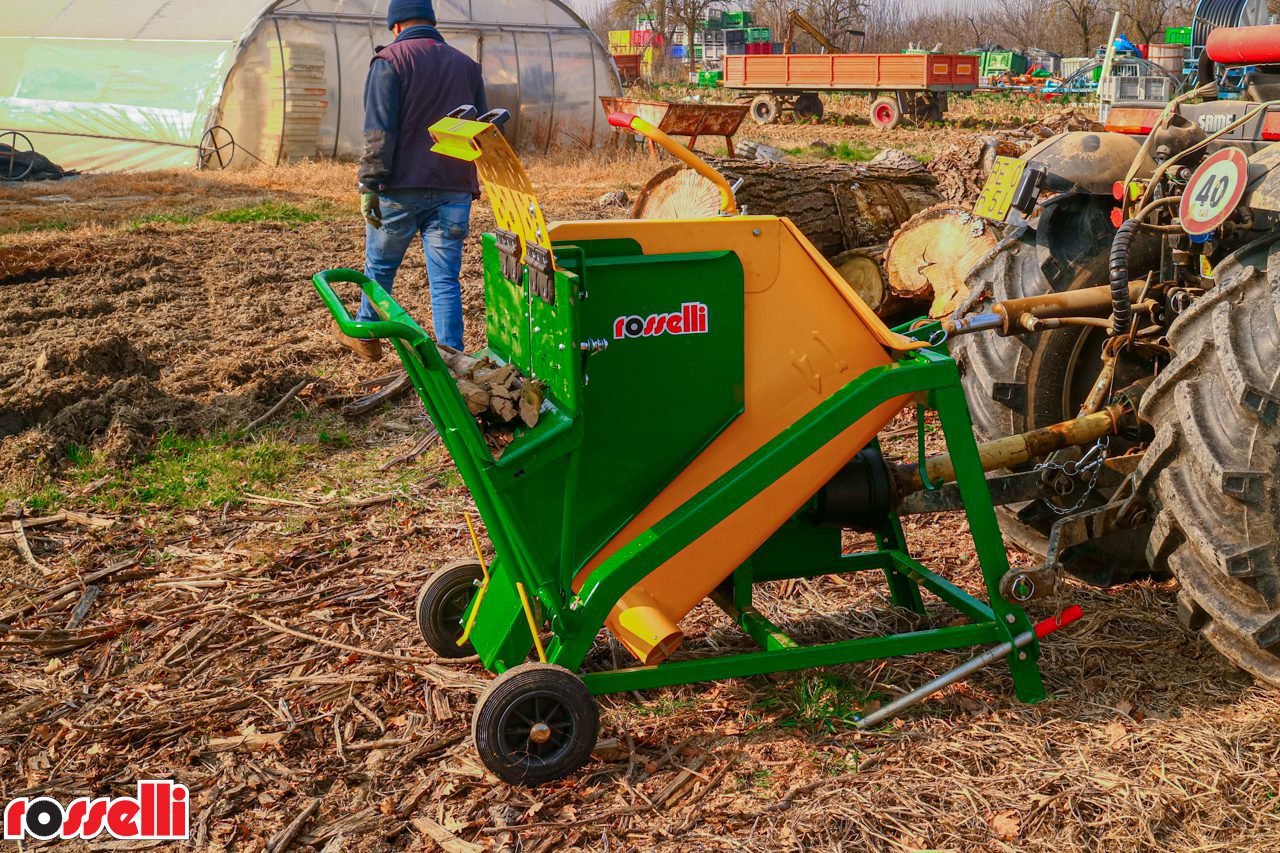

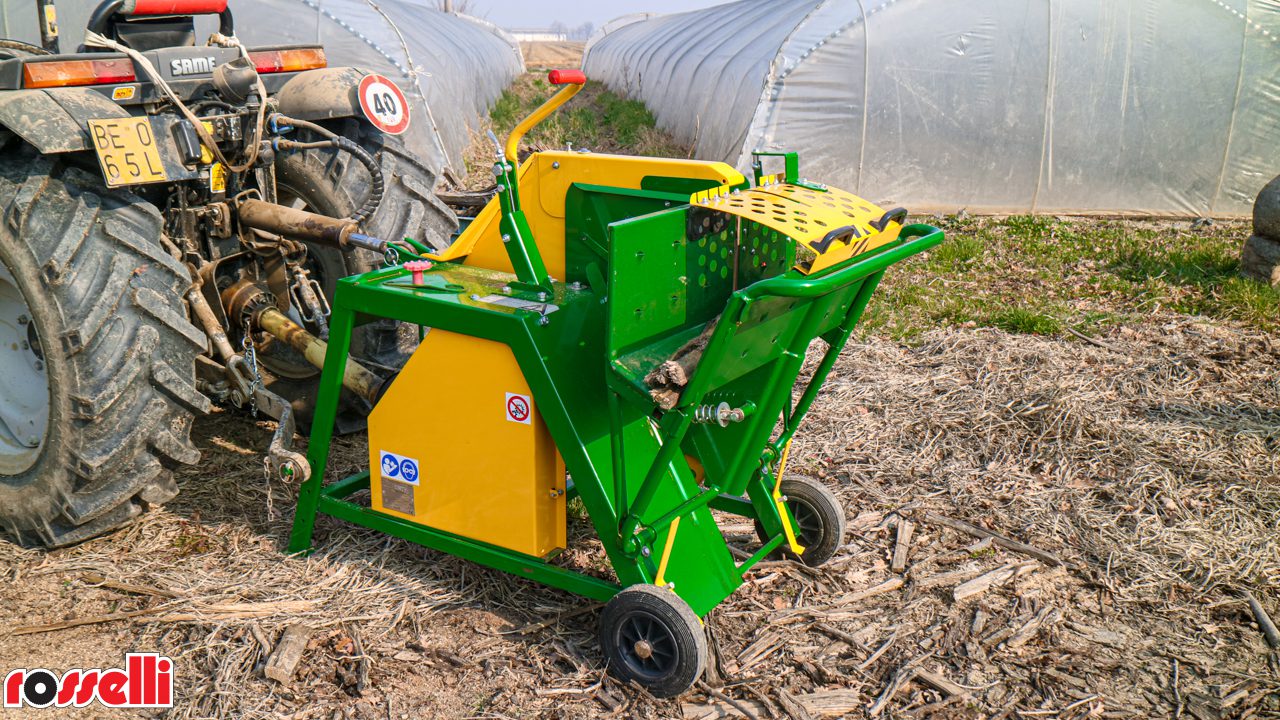

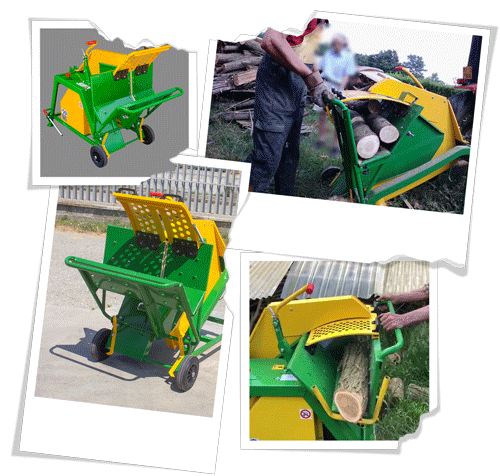

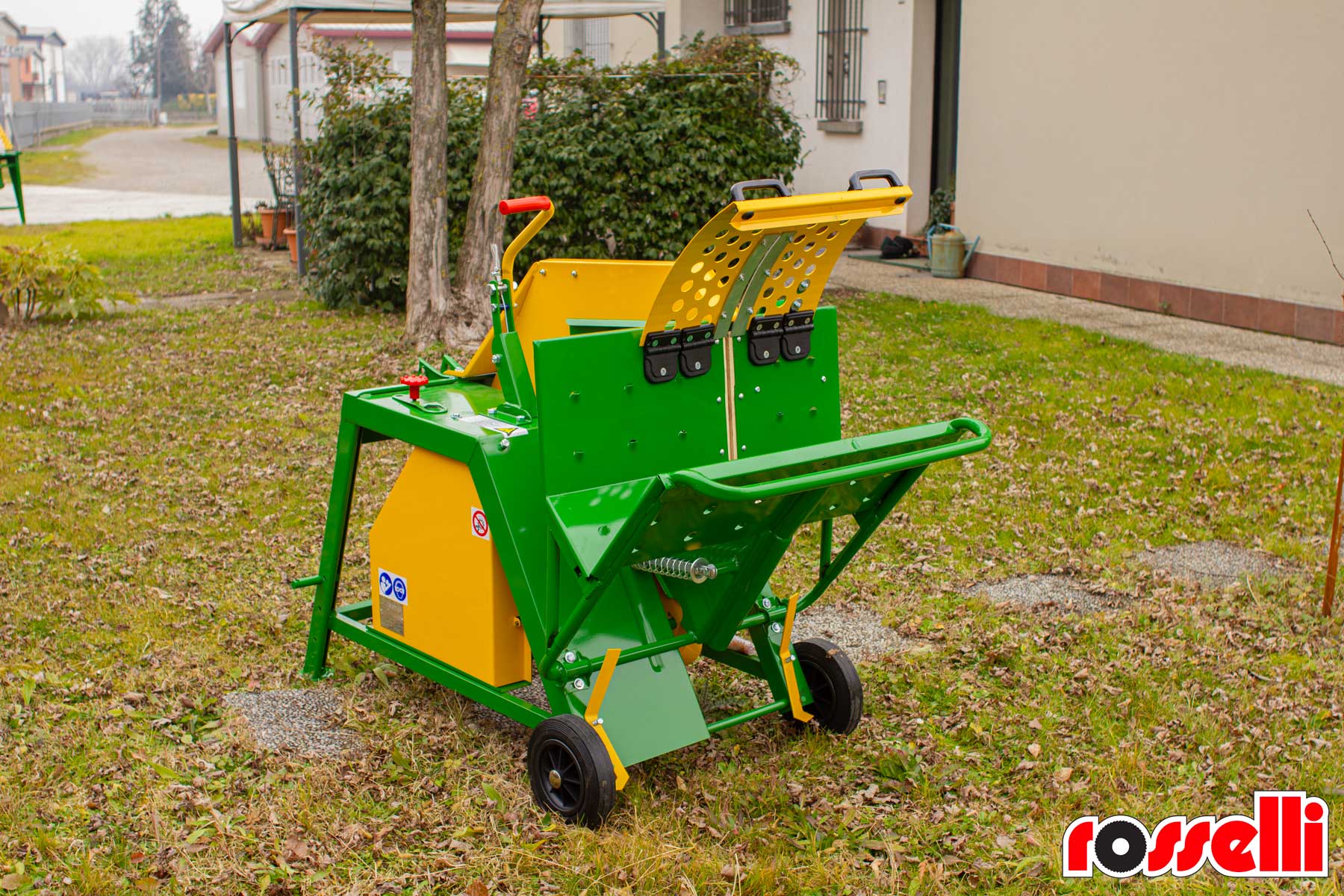

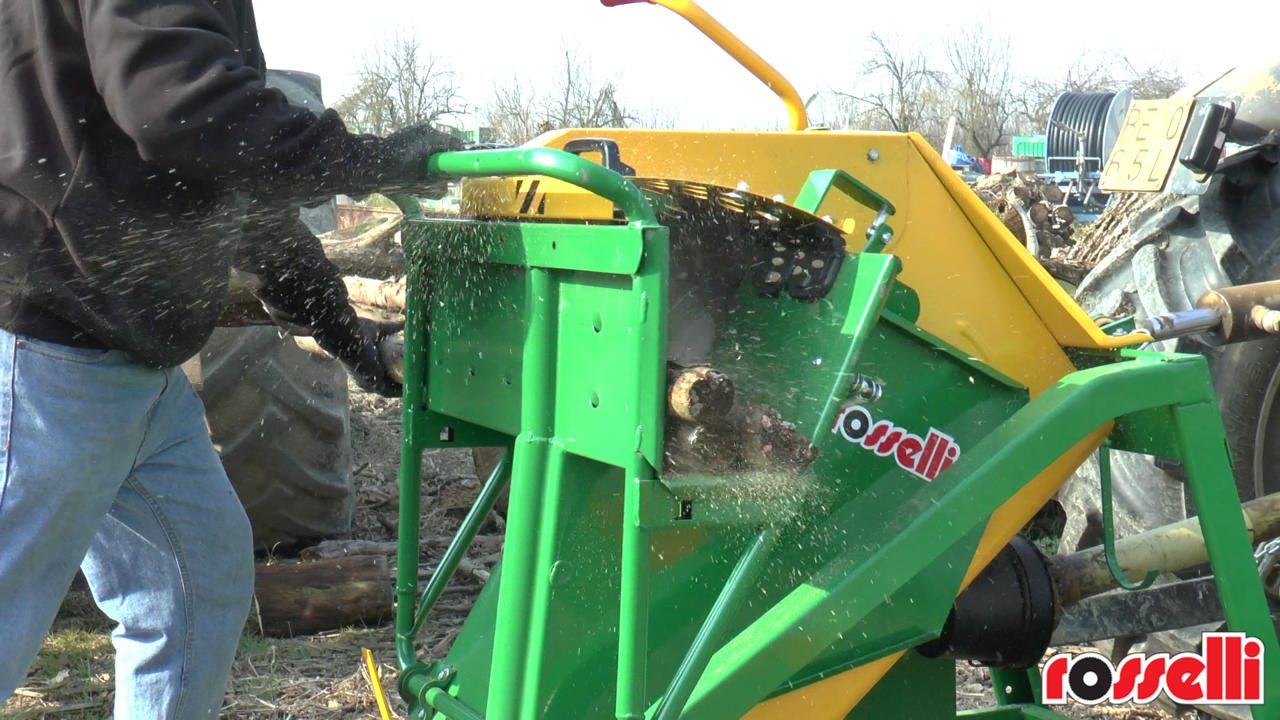

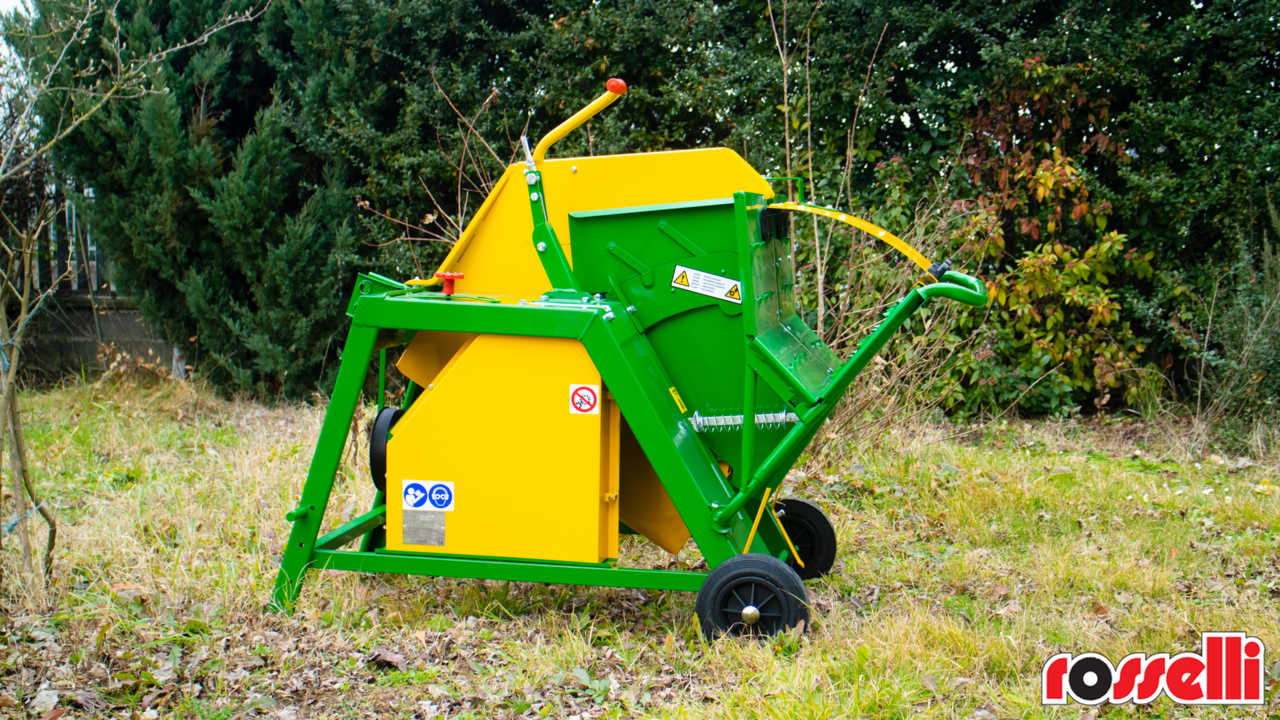

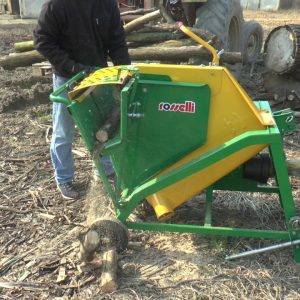

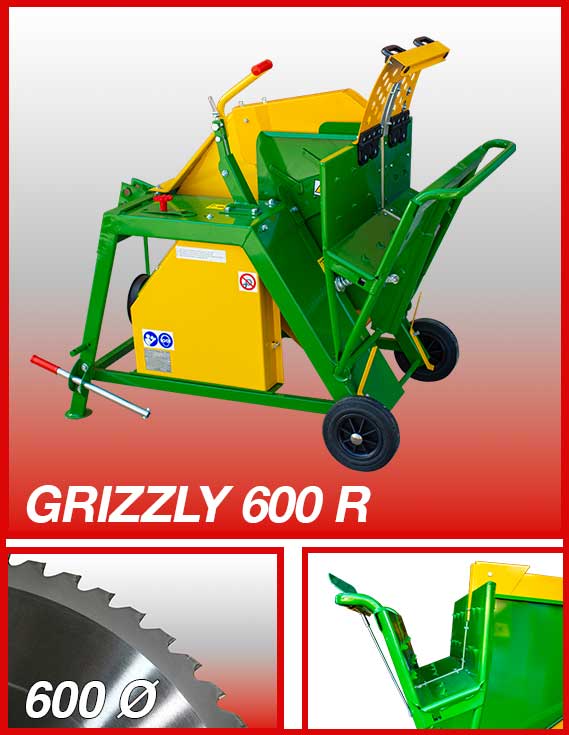

The swinging table circular saw bench Rosselli allows to cut big quantities of wood avoiding any physical efforts and in extreme safety, in full compliance with the current regulations. The swinging table Grizzly 600 R / 700 R model features a solid structure antitorsion and high cut depth.

In addition to the normal safety equipment, the machine has been enhanced a particular device that allows the saw blade to stop within 10 seconds. Each model of the Grizzly family has been designed for a continuous and safe use and the two wheels and the carrying handle have made these machines exceptionally transportable.

Every swinging table circular saw bench made by Rosselli has a cradle specifically designed to prevent the rotation of the wood and the swinging table inclination can push the wood effortlessly. Trapezoidal belts characterized by high performance and durability allows the movement transmission from the driveshaft to the shaft.

The activation device placed on the handle works as well as protection for the hands. The hard frame, built with a robust structure, allows to work in full safety, protecting the operator from the moving parts.

CARATTERISTICHE

IMMAGINI

VIDEO

OPTIONAL

PDF

Tabella tecnica

Model	Diameter Blade	Cutting depth	Working Table	Supply	Max Dimensions	Weight

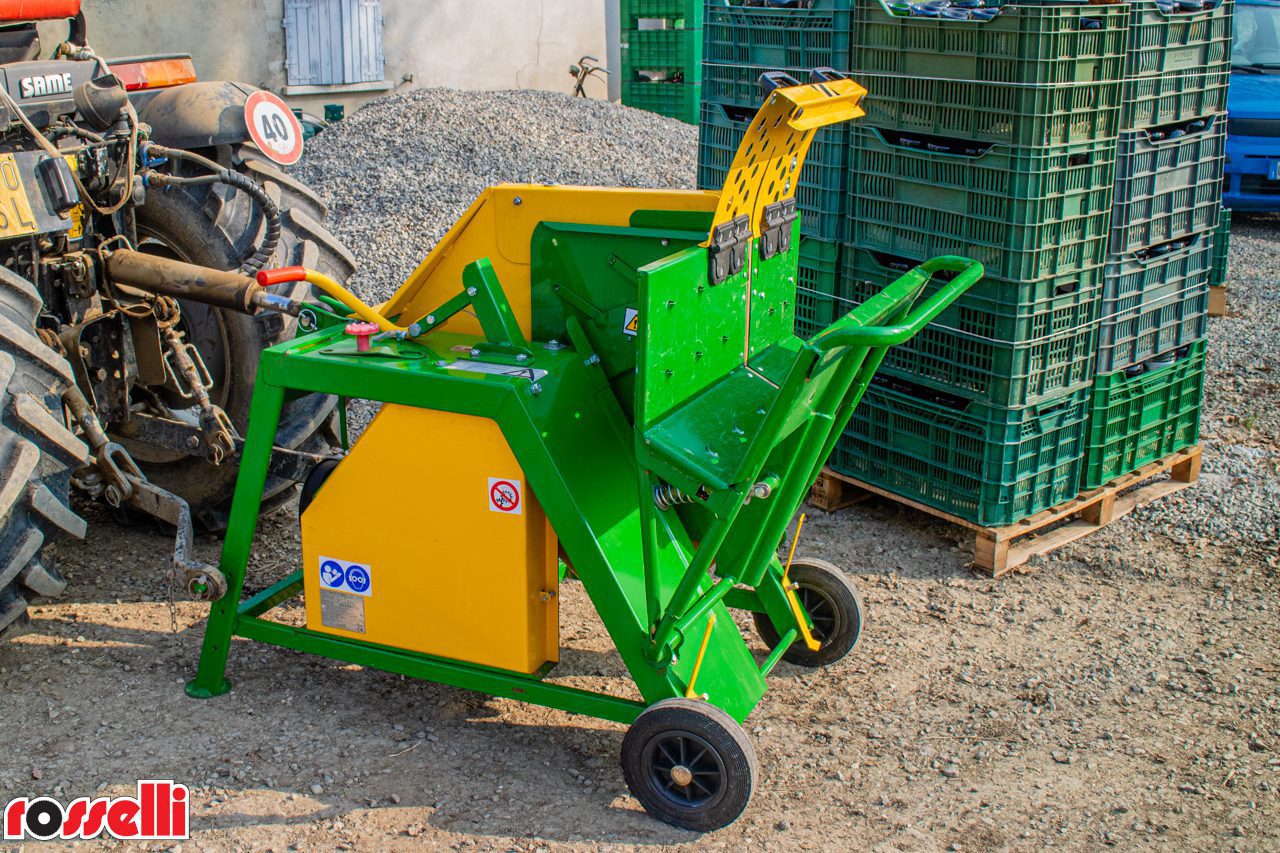

Grizzly 600R	Ø 600 mm	220 mm	850×265 mm	Cardan Three-point Linkage-Rear	1450x850x1100 mm	121 Kg

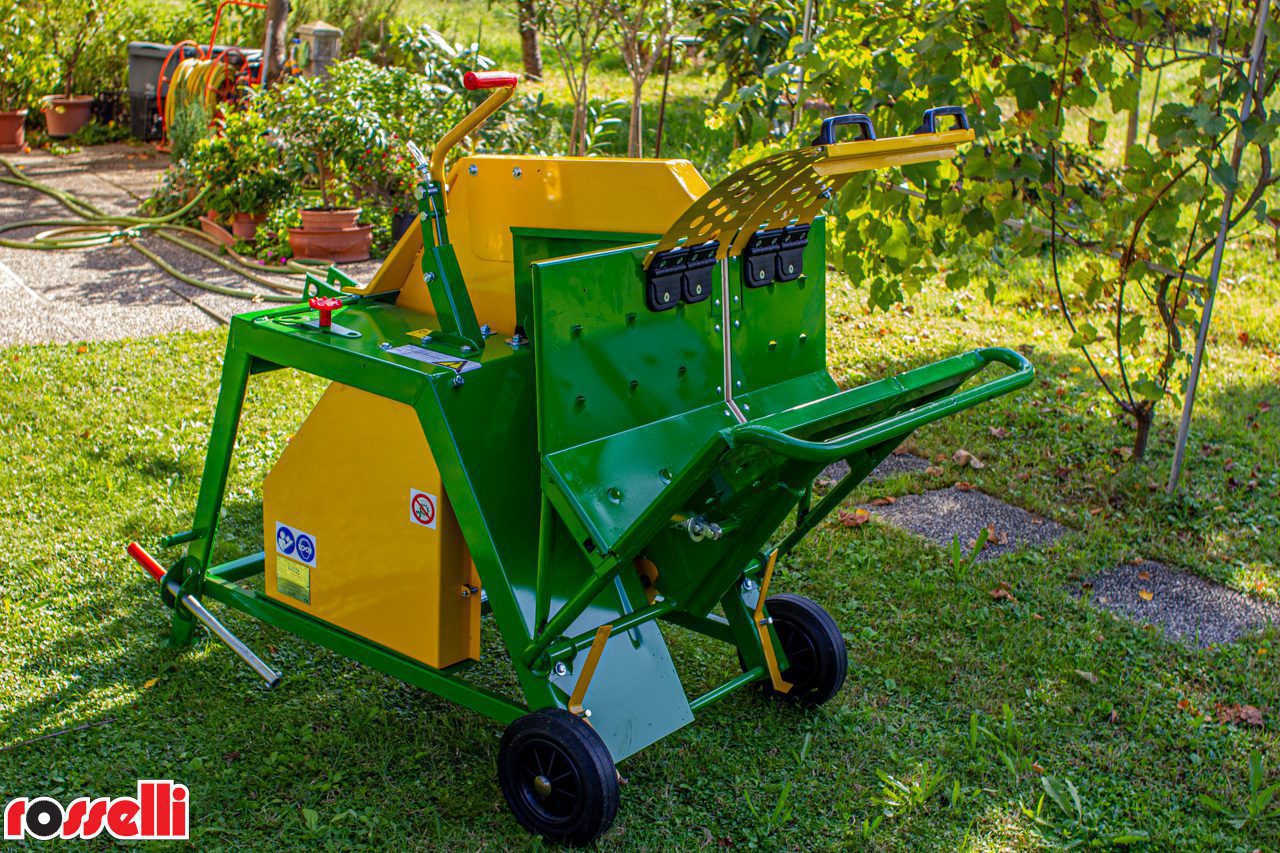

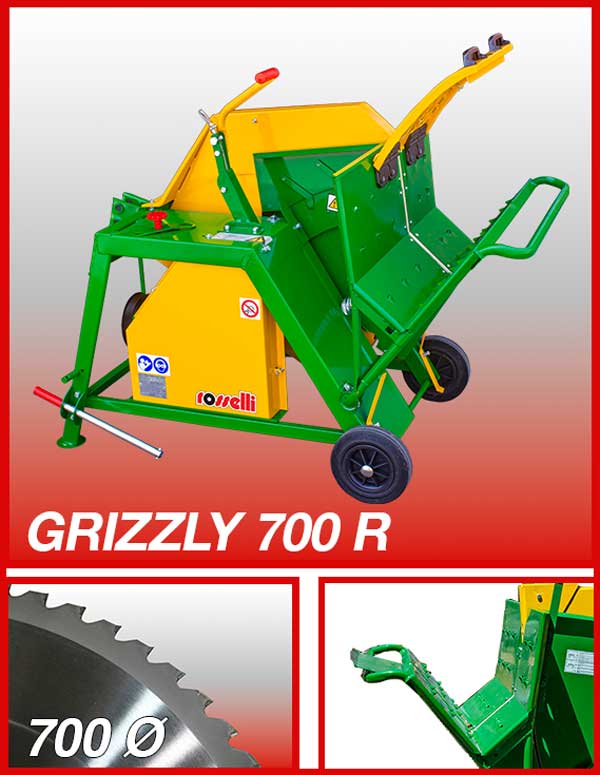

Grizzly 700R	Ø 700 mm	260 mm	850×370 mm	Cardan Three-point Linkage-Rear	1600x850x1120 mm	94 Kg

FEATURES

[/vc_column_text][cq_vc_hotspot image=”19884″ width=”800″ isdisplayall=”specify” displayednum=”1,2″ icontype=”icon” fonticon=”fa-video-camera,fa-key,fa-sun-o” position=”15%|70%,32%|30%,27%|24%,48%|77%,80%|55%,40%|55%,68%|13%” circlecolor=”#ffffff” opacity=”2″ maxwidth=”420″ containerwidth=”95%”][hotspotitem]

Emergency Device

https://www.rossellisnc.com/wp-content/uploads/S-R100-Freno.mp4
[/hotspotitem]
[hotspotitem]

Wrench to unscrew the blade

[/hotspotitem]
[hotspotitem]

Supporting PTO shaft

[/hotspotitem]
[hotspotitem]

Operating handle

[/hotspotitem]

[hotspotitem]

Wheels Lock

[/hotspotitem]

[hotspotitem]

Wood-blocks

[/hotspotitem]

[hotspotitem]

Carrying handle

[/hotspotitem]

[/cq_vc_hotspot][/vc_column][/mk_page_section][mk_page_section bg_color=”#d6d6d6″ full_width=”true” has_top_shape_divider=”true” top_shape_size=”small” top_shape_color=”#ffffff” top_shape_bg_color=”#d6d6d6″ has_bottom_shape_divider=”true” bottom_shape_size=”small” bottom_shape_color=”#ffffff” bottom_shape_bg_color=”#d6d6d6″ sidebar=”sidebar-1″]

OPTIONAL

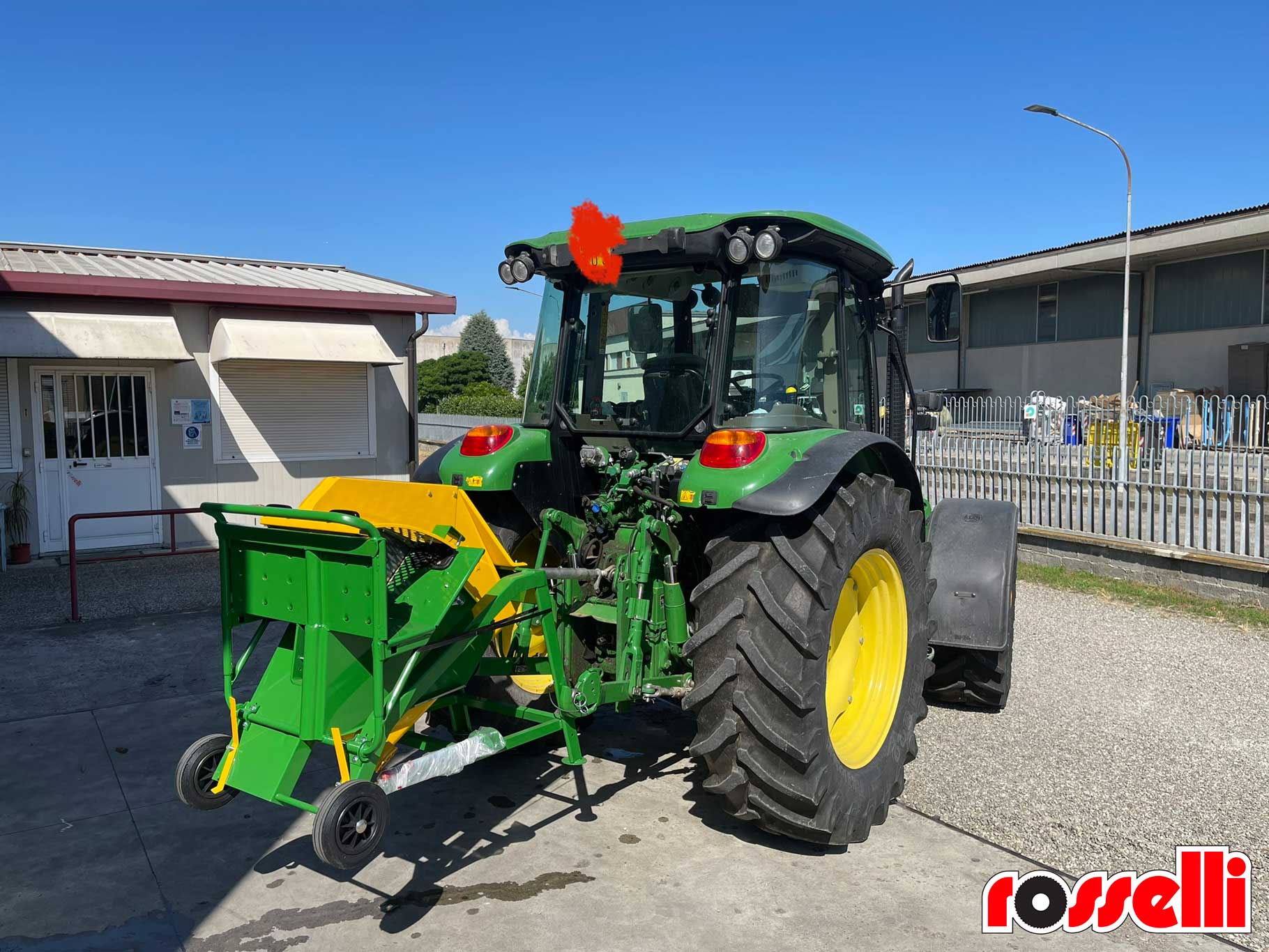

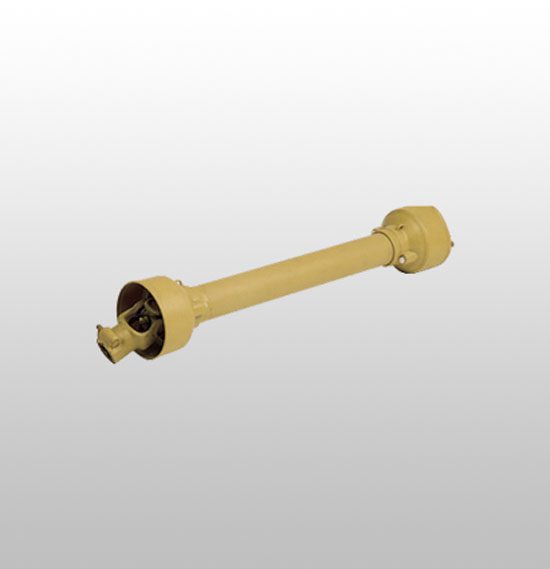

PTO SHAFT

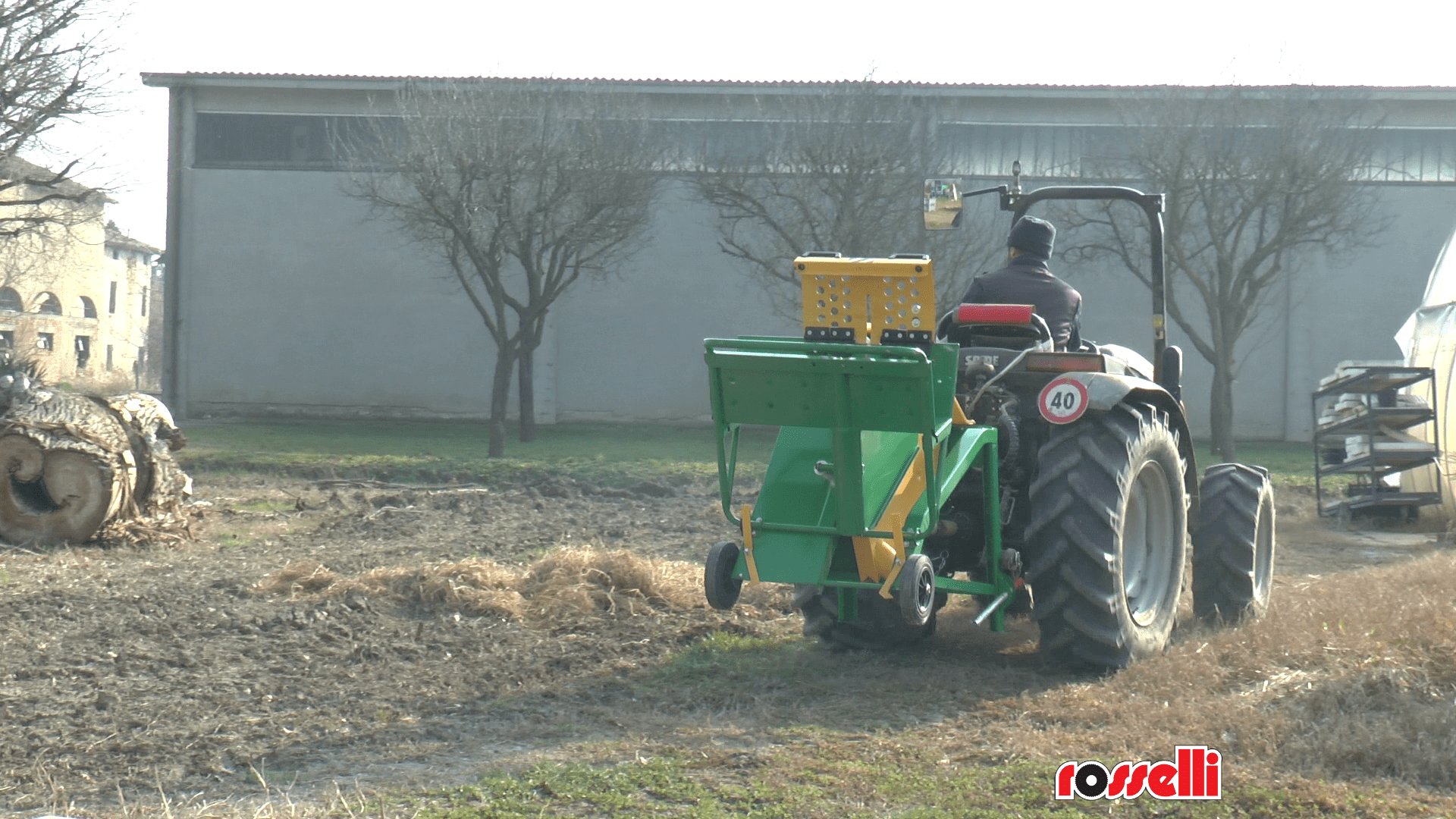

Cardan transmission for use with tractor.

WIDIA BLADE

Circular blade with higher performance and better cutting.

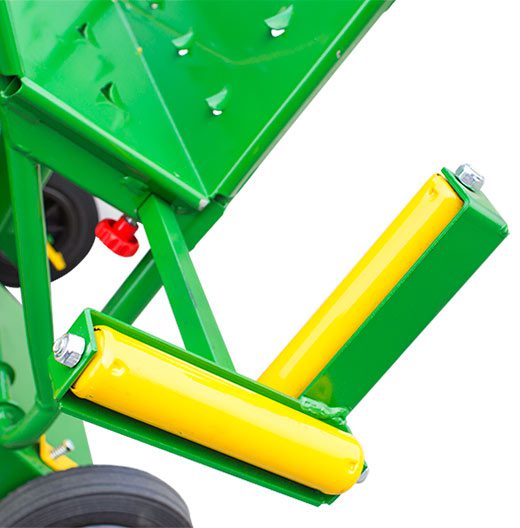

EXTENSION WITH ROLLERS FOR LONG WOOD

This extension with rollers helps to support longer logs and slide them into the log compartment.

MACHINERY DIRECTIVE 2006/42/CE

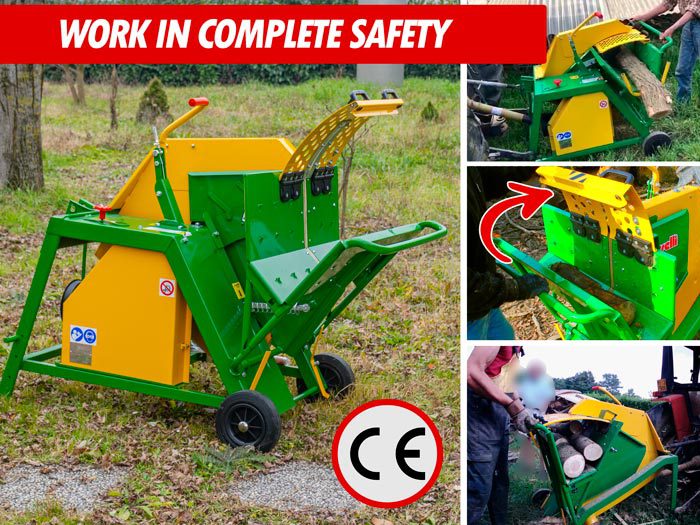

The Rosselli company, which has always been attentive to safety issues, builds its machines scrupulously following the directives imposed by the European Community. For this reason, the proposed saw benches comply with the Machinery Directive 2006/42/EC: they are characterized by all those features that allow the operator to work in complete tranquility.

DISENGAGEMENT - SAFETY SYSTEM

Following the rules imposed by the Regulations (Machine Directive 2006/42/EC) the machine is equipped with a braking safety system which we call "DISENGAGE". This system is made up of an emergency lever that the operator can release in dangerous situations, thus allowing the blade to stop within 10 seconds despite the cardan continuing to move.

WOOD LOCKING SYSTEM

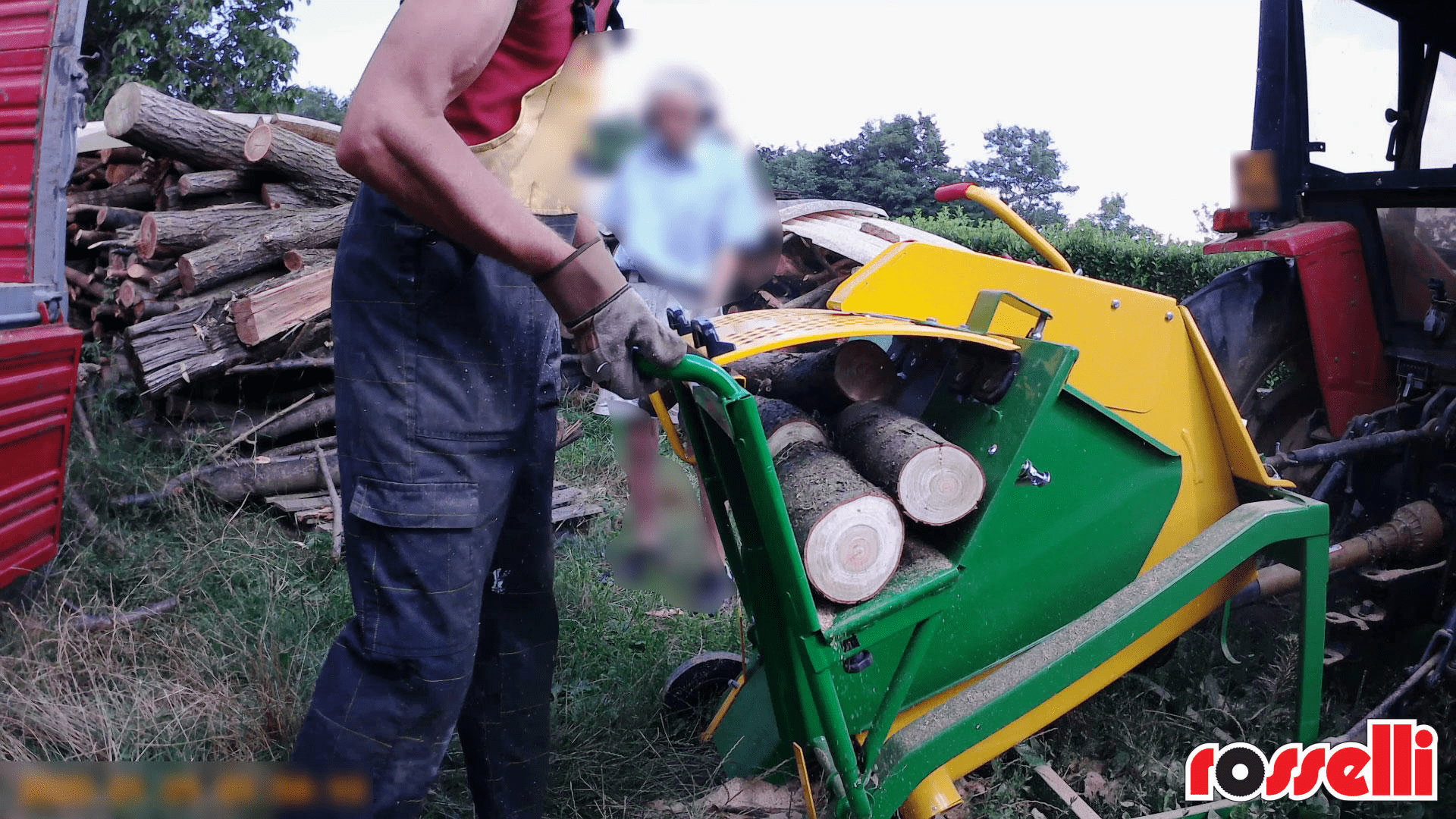

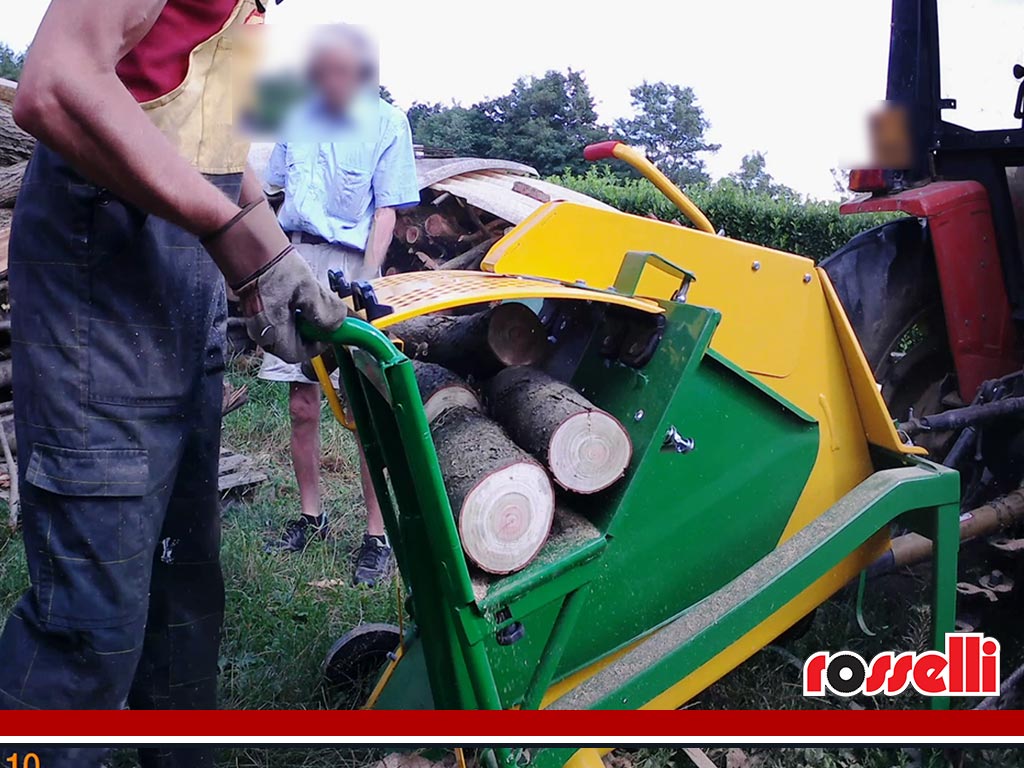

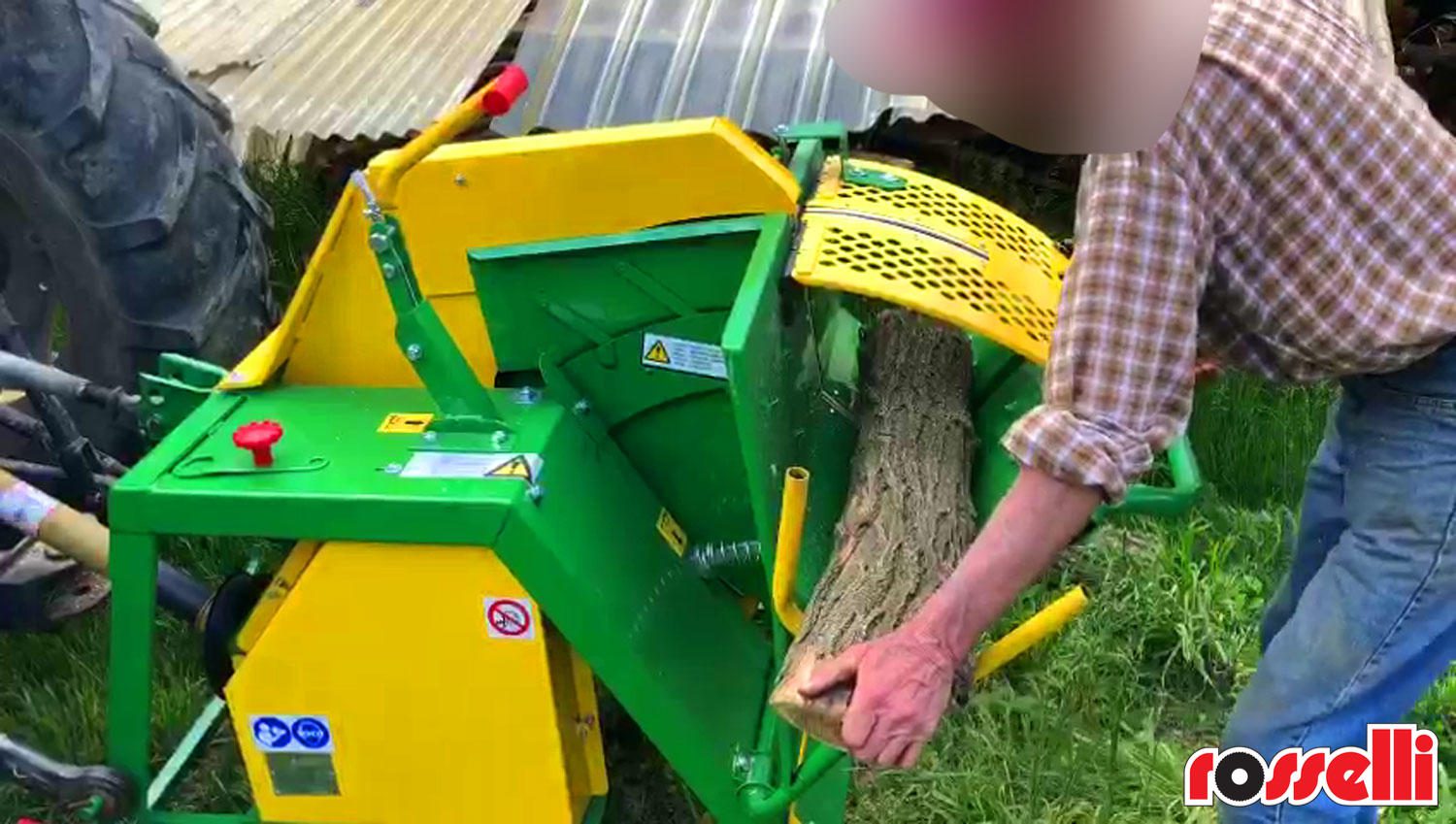

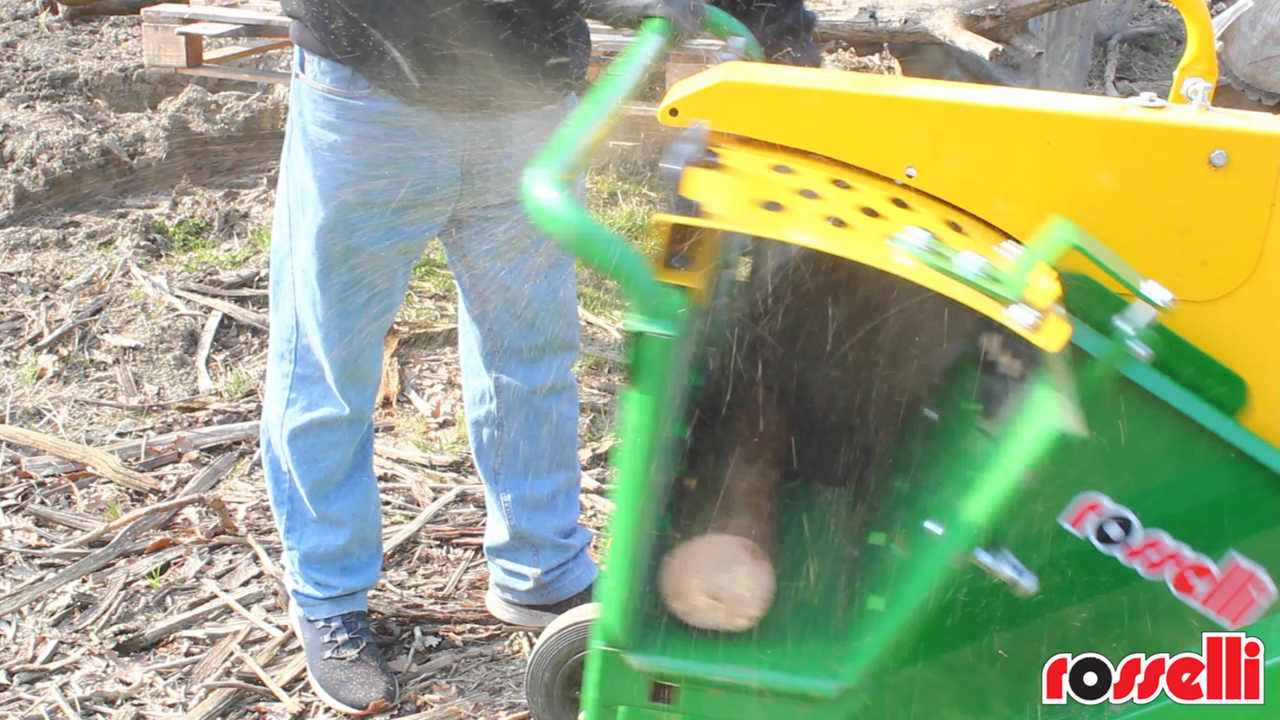

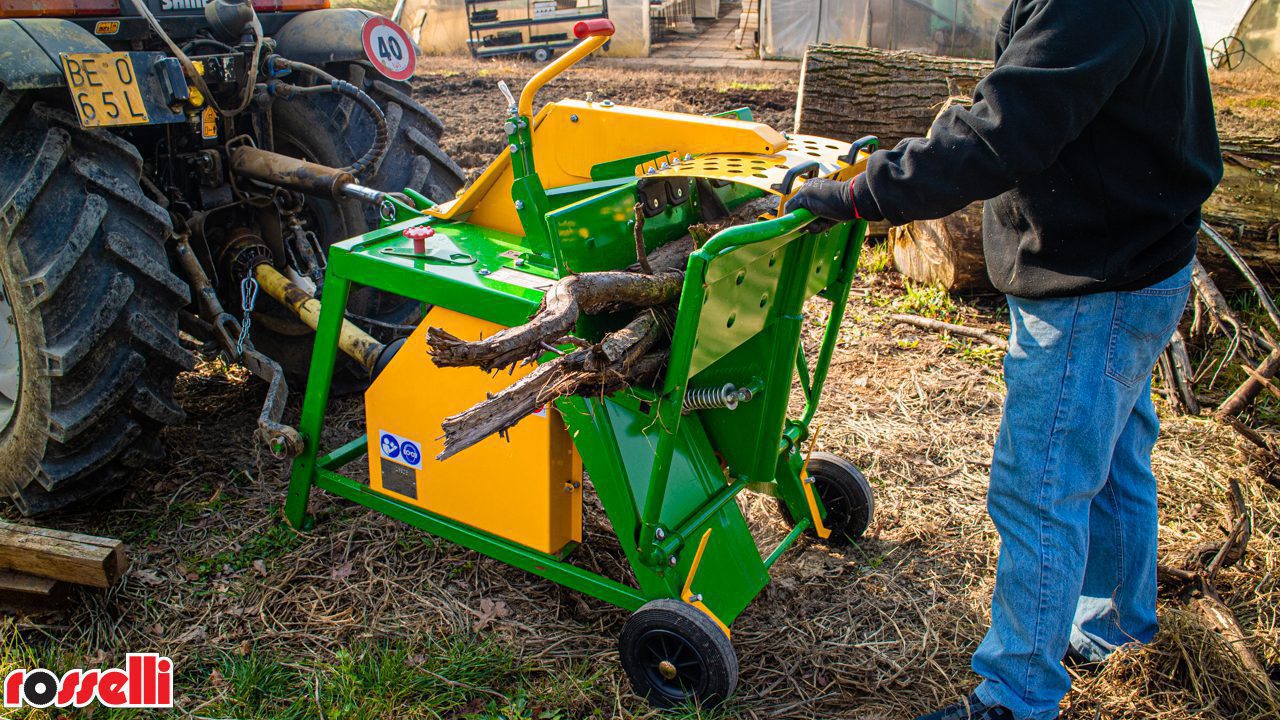

This device stops the log and guarantees a sharp and defined cut; both hands are needed to operate the machine in order to avoid any contact with the blade.

WE HAVE DESIGNED A SAFE WAY OF WORKING WITH OUR PRODUCTS

Why buy a Rosselli Grizzly-R swinging circular saw?

SAFETY

RELIABILITY

USE

ASSISTANCE

SAFETY

The Grizzly R model swinging saw with PTO-shaft is built according to the standards established by the CE/662 machinery directive and this allows the user to carry out cutting operations without incurring any danger. For years now, the Rosselli company has been committed to providing its customers with machines which, despite their cost, guarantee the highest levels of safety.

RELIABILITY

Thanks to the robot welded frame, the “ Grizzly R ” swinging circular saw guarantees a high level of robustness and high-level performance even after several years of use. Thanks to the particular painting process adopted by Rosselli, the metal parts of the machine are protected for a long time from corrosion and aggressive agents.

USE

The Grizzly-R circular saw with PTO shaft is particularly appreciated by the company’s customers for its extreme operational simplicity. A few simple gestures allow you to make a clean and precise cut without applying excessive force. This also allows women and the elderly to be able to cut wood completely independently.

ASSISTANCE

The Grizzly R saw bench is guaranteed for 3 years. Finding any spare parts is possible even a long time after the date of purchase. Rosselli provides assistance to both retailers and private individuals.
