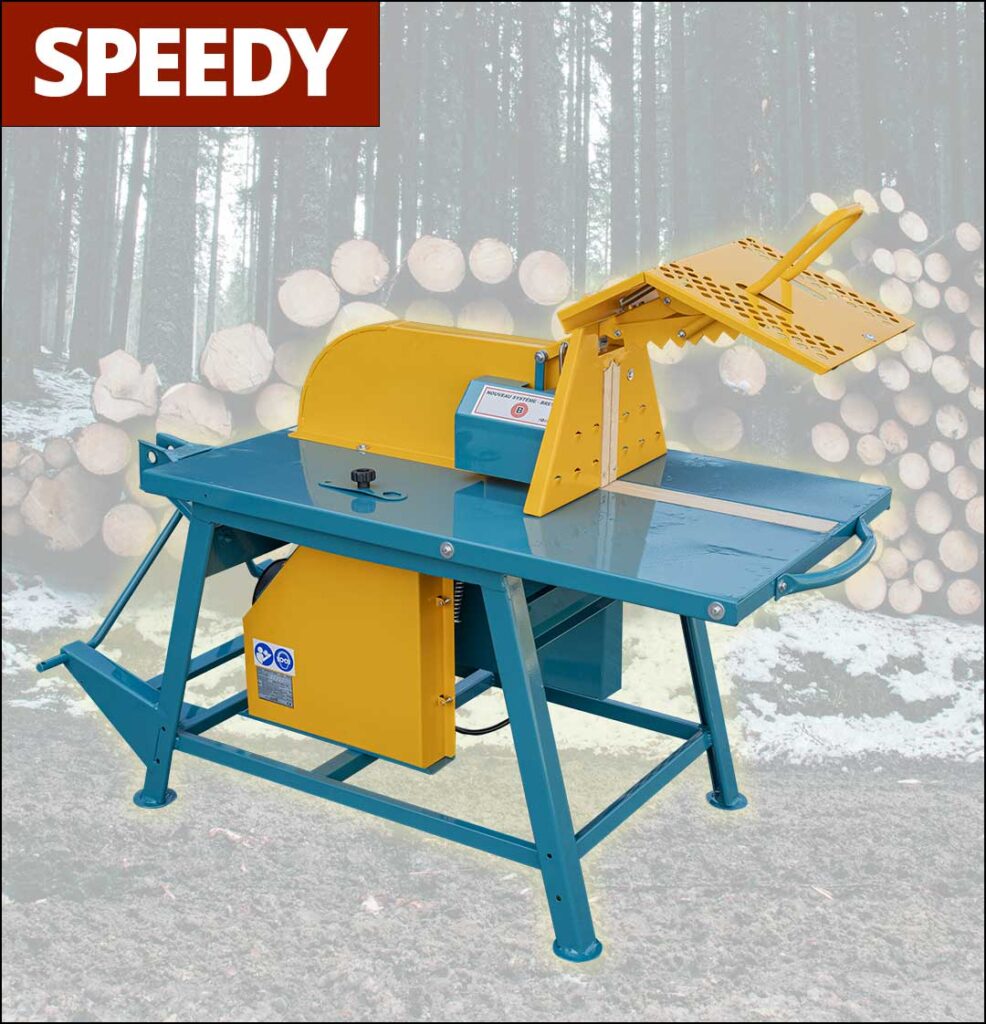

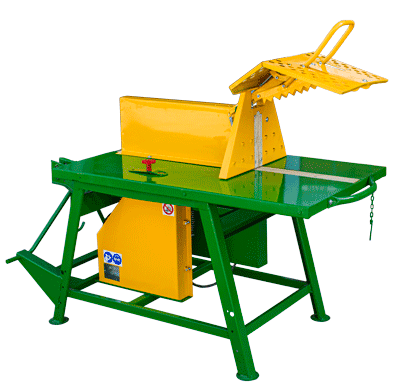

Speedy 700 R, the Rosselli PTO shaft circular saw bench, is the bigger machine proposed by our company: it is equipped with a spacious table (850×1350 mm) to place the wood and with a Ø 700 mm blade.
In order to guarantee a comfortable, fast and above all safe cut, the Rosselli firm has also studied a newly designed wood-block: an ergonomic and functional solution expressly developed to avoid both possible contacts with the disk and the dangerous rotations of the wood during the cutting phases.
Compared with traditional saw benches, Speedy allows cutting not only defined shape logs, but also irregular shape logs and bundles of branches.
This circular saw with roller with table is completely built in Italy with very high quality materials in order to produce a long-lasting machine.
With its strong and robust construction, the Speedy 700 R tractor circular saw is designed to handle even the toughest and most productive tasks. If you need to cut firewood for your home or commercial purposes, this circular saw is the perfect choice.
FEATURES
IMAGES
VIDEO
OPTIONAL
Technical table
|
Model
|
Blade Diameter
|
Work surface
|
Cutting Depth - Round Logs
|
Cutting Depth - Half Cut Logs
|
Power supply
|
Maximum size
|
Weight
|
|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
Speedy 700 R
|
Ø 700 mm
|
850x1350 mm
|
245 mm
|
410 mm
|
PTO Drive Shaft - Rear
|
1810x900x1230 mm
|
150 Kg
|
|
Speedy 700 R 2PTO
|
Ø 700 mm
|
850x1350 mm
|
245 mm
|
410 mm
|
PTO Drive Shaft - Rear and Side
|
1810x900x1230 mm
|
154 Kg
|
FEATURES
Discover the excellence of the Speedy 700 R professional circular saw.
Click and view the features and characteristics
Key to unscrew the blade
This key is used to unscrew and screw the circular blade for replacement after wear.
Transmission belts
The saw is equipped with 3 special belts to transmit a uniform motion to the cutting of the wood. The transmission belts are designed with high quality materials to guarantee optimal performance over time, ensuring efficient and stable operation of the circular saw.
https://youtu.be/mI_Osoa62So
Emergency brake
In case of emergency we have installed a lever on the circular saw to brake the circular blade in less than 8 seconds. A clutch system stops the motion of the cutting disc.
Sliding table lock
With this hook and a cotter pin you can lock the table to prevent it from sliding when you move the circular saw or to keep it at rest.
Wood clamping system for saw
With this wood locking system you can saw wood in complete safety. Obtaining a fast and perpendicular cut.

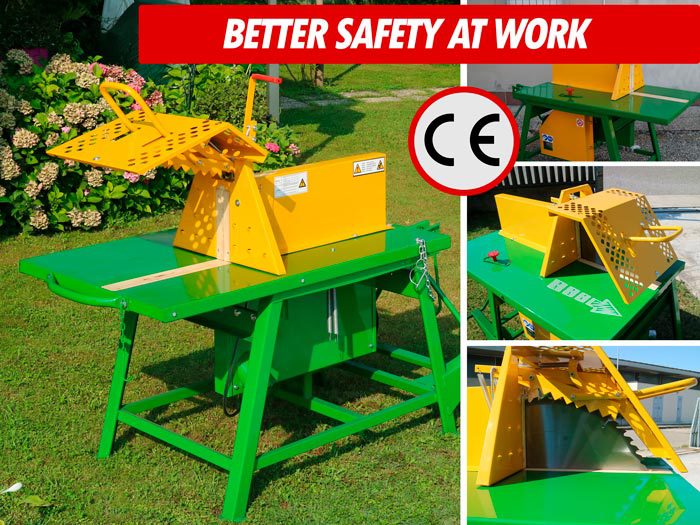

Protection with holes
We have installed this large protection to make the circular saw even safer. Making it easy and practical to work at the same time. The user will be able to see the sawing action of the wood through the holes in the sheet metal.
Sawdust and shavings discharge
Special discharge for sawdust and shavings, created to expel shavings without endangering hands. The special attachment is designed to be able to attach a sawdust extractor.
Sheet metal thickness
For a sturdy and stable structure we use sheet metal of adequate thickness. We have done tests and a sealing study to make the saw safer and more durable over time.
Special hook to support the cardan shaft
The hook placed above the three points of the circular saw is used to support the cardan transmission when the saw is stalled/stopped. Useful so the cardan is never resting on the ground.
OPTIONAL
PTO / CARDAN
PTO/Cardan transmission for connection to the tractor.
3-POINT CONNECTION ADAPTERS FOR CATEGORY 1N
3-point connection adapters for category 1N tractors
3-POINT CONNECTION ADAPTERS FOR CATEGORY 2 AND 3
3-point connection adapters for category 2 and 3 tractors
WHEELS
Hard rubber wheels for transporting and moving on flat surfaces.
PNEUMATIC WHEELS
Ruote pneumatiche per trasportare e movimentare su superfici irregolari e sterrati.
VIDEO
Below you can view the videos of the "Speedy 700 R" circular saw with PTO three-point hitch.
IMAGES
View photos of our professional circular saw "Speedy 700 R" while sawing firewood
DIRETTIVA MACCHINE 2006/42/CE
L’azienda Rosselli, da sempre attenta alle tematiche relative alla sicurezza, costruisce le sue macchine seguendo scrupolosamente le direttive imposte dalla Comunità Europea. Per questo i Banchi Sega proposti rispettano la Direttiva Macchine 2006/42/CE: essi sono caratterizzati da tutti quegli accorgimenti che permettono all’operatore di lavorare in completa tranquillità.
DISINNESTO - SISTEMA DI SICUREZZA
Seguendo le regole imposte dalla Normativa (Direttiva Macchina 2006/42/CE) la macchina è dotata di un sistema di sicurezza frenante da noi denominato “DISINNESTO“. Tale sistema è composto da una leva di emergenza che l’operatore può sganciare in situazioni di pericolo consentendo così l’arresto della lama entro 10 secondi nonostante il cardano continui ad essere in moto.
SISTEMA DI BLOCCAGGIO
Questo sistema ferma il tronco garantendo un taglio netto e preciso e permette all’operatore di tenere le mani impegnate cosi da evitare il contatto con la lama.
CI OCCUPIAMO DELLA SICUREZZA DEI NOSTRI PRODOTTI
